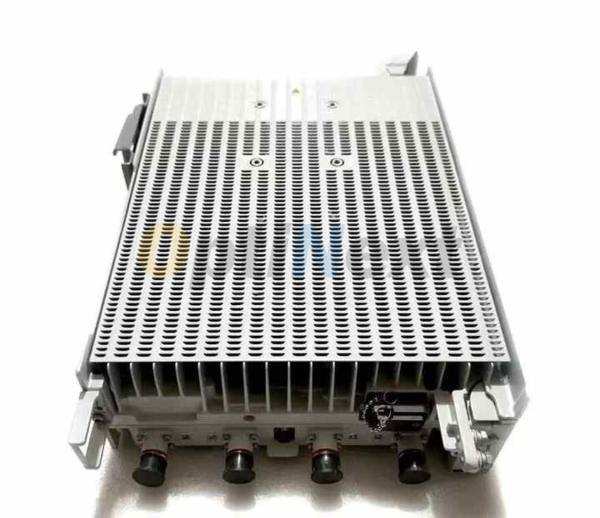

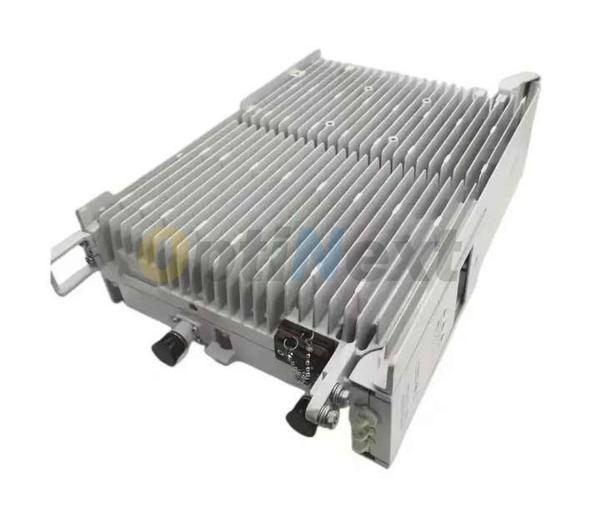

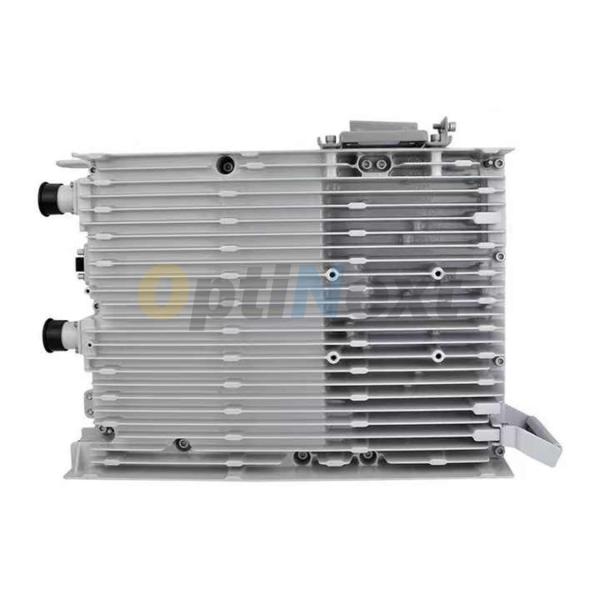

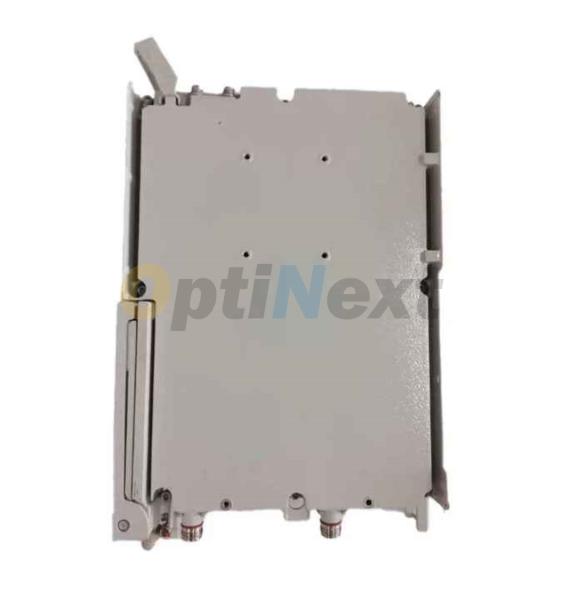

RRU3971
RRU3971
RRU3971
RRU3971
RRU3971
RRU3971
RRU3971
RRU3971
Specifications
Brand Name :
Huawei
Model Number :
RRU3971
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
15 working days
Description

3 RRU3971 (1800 MHz) Technical Specifications

The technical specifications of an RRU3971 (1800 MHz) include RF specifications, engineering specifications, and CPRI port specifications.

3.1 RRU3971 (1800 MHz) RF Specifications

The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.

  • In the following, G is short for GSM, L is short for LTE FDD, M is short for LTE NB-IoT, and N (FDD) is short for NR FDD.
  • In the following, SUL is short for supplementary uplink and N (SUL) is short for NR SUL.

Supported Frequency Bands and RATs

Table 3-1 Frequency bands and RATs supported by an RRU3971 (1800 MHz)

Frequency Band (MHz)

Protocol-defined Band

RX Frequency Band (MHz)

TX Frequency Band (MHz)

RAT

IBW (MHz)
1800 Band 3/n3 1710 to 1785 1805 to 1880 LTE FDD, GL, LM, GLM, LN (SUL), GLN (SUL), NR FDD, GN (FDD), LN (FDD), GLN (FDD), LMN (FDD) 45

4 RRU3971 (1900 MHz) Technical Specifications

The technical specifications of an RRU3971 (900 MHz) include RF specifications, engineering specifications, and CPRI port specifications.

4.1 RRU3971 (1900 MHz) RF Specifications

The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.

In the following, G is short for GSM, U is short for UMTS, L is short for LTE FDD, and N (FDD) is short for NR FDD.

Supported Frequency Bands and RATs

Table 4-1 Frequency bands and RATs supported by an RRU3971 (1900 MHz)

Frequency Band (MHz)

Protocol-defined Band

RX Frequency Band (MHz)

TX Frequency Band (MHz)

RAT

IBW (MHz)
1900 Band 2/n2 1850 to 1910 1930 to 1990 UMTS, LTE FDD, GU, GL, UL, GUL, NR FDD, GN (FDD), UN (FDD), LN (FDD), GUN (FDD), GLN (FDD), ULN (FDD) 40

5 RRU3971 (2100 MHz) Technical Specifications

The technical specifications of an RRU3971 (2100 MHz) include RF specifications, engineering specifications, and CPRI port specifications.

5.1 RRU3971 (2100 MHz) RF Specifications

The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.

  • In the following, U is short for UMTS, L is short for LTE FDD, and N (FDD) is short for NR FDD.
  • In the following, SUL is short for supplementary uplink and N (SUL) is short for NR SUL.

Supported Frequency Bands and RATs

Table 5-1 Frequency bands and RATs supported by an RRU3971 (2100 MHz)

Frequency Band (MHz)

Protocol-defined Band

RX Frequency Band (MHz)

TX Frequency Band (MHz)

RAT

IBW (MHz)
2100 Band 1/n1 1920 to 1980 2110 to 2170 UMTS, LTE FDD, UL, LN (SUL), ULN (SUL), NR FDD, UN (FDD), LN (FDD), ULN (FDD) 60
