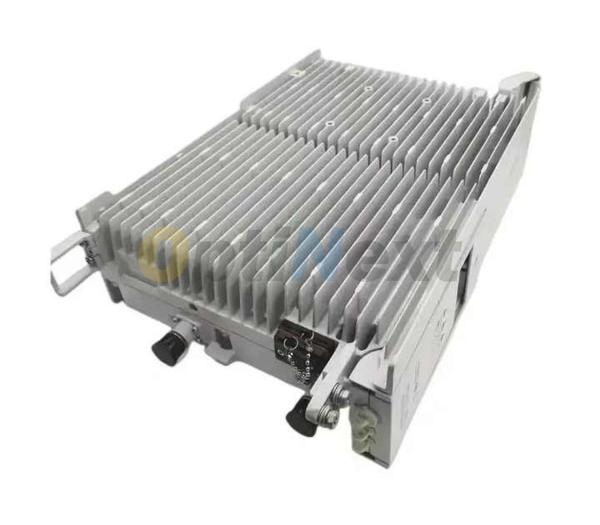

RRU5904W
RRU5904W
RRU5904W
RRU5904W
RRU5904W
RRU5904W
RRU5904W
RRU5904W
RRU5904W
RRU5904W
Specifications
Brand Name :
Huawei
Model Number :
RRU5904W
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
15 working days
Description

3 RRU5904w (850 MHz) Technical Specifications

The technical specifications of an RRU5904w (850 MHz) include RF specifications, engineering specifications, and CPRI port specifications.

3.1 RRU5904w (850 MHz) RF Specifications

The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.

In the following, G is short for GSM, U is short for UMTS, L is short for LTE FDD, M is short for LTE NB-IoT, and N (FDD) is short for NR FDD.

Supported Frequency Bands and RATs

Table 3-1 Frequency bands and RATs supported by an RRU5904w (850 MHz)

Frequency Band (MHz)

Protocol-defined Band

RX Frequency Band (MHz)

TX Frequency Band (MHz)

RAT

IBW (MHz)
850 Band 26/n5 814–849 859–894 GSM, UMTS, LTE FDD, GU, GL, UL, GUL, LTE NB-IoT, GM, UM, LM, GLM, ULM, GUM, GULM, NR FDD, GN (FDD), UN (FDD), LN (FDD), GUN (FDD), GLN (FDD), ULN (FDD), MN (FDD), UMN (FDD), GLMN (FDD)a
  • With LTE: 35
  • Without LTE: 25
a: When the RRU5904w works in the RX frequency band of 814 MHz to 824 MHz or the TX frequency band of 859 MHz to 869 MHz, it cannot work in GSM, UMTS, or NR FDD mode.

4 RRU5904w (1800 MHz) Technical Specifications

The technical specifications of an RRU5904w (1800 MHz) include RF specifications, engineering specifications, and CPRI port specifications.

4.1 RRU5904w (1800 MHz) RF Specifications

The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.

  • In the following, G is short for GSM, L is short for LTE FDD, M is short for LTE NB-IoT, and N (FDD) is short for NR FDD.
  • In the following, SUL is short for supplementary uplink and N (SUL) is short for NR SUL.

Supported Frequency Bands and RATs

Table 4-1 Frequency bands and RATs supported by an RRU5904w (1800 MHz)

Frequency Band (MHz)

Protocol-defined Band

RX Frequency Band (MHz)

TX Frequency Band (MHz)

RAT

IBW (MHz)
1800 Band 3/n3 1710 to 1785 1805 to 1880 GSM, LTE FDD, GL, LTE NB-IoT, GM, LM, GLM, LN (SUL), GLN (SUL), NR FDD, GN (FDD), LN (FDD), GLN (FDD), MN (FDD), GMN (FDD), LMN (FDD), GLMN (FDD)

75

5 RRU5904w (1900 MHz) Technical Specifications

The technical specifications of an RRU5904w (1900 MHz) include RF specifications, engineering specifications, and CPRI port specifications.

5.1 RRU5904w (1900 MHz) RF Specifications

The RF specifications include the supported radio access technologies (RATs), frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.

In the following, G is short for GSM, U is short for UMTS, L is short for LTE FDD, and N (FDD) is short for NR FDD.

Supported Frequency Bands and RATs

Table 5-1 Frequency bands and RATs supported by an RRU5904w (1900 MHz)

Frequency Band (MHz)

Protocol-defined Band

RX Frequency Band (MHz)

TX Frequency Band (MHz)

RAT

IBW (MHz)
1900 Band 2/n2 1850 to 1910 1930 to 1990 UMTS, LTE FDD, GU, GL, UL, GUL, NR FDD, GN (FDD), UN (FDD), LN (FDD), GUN (FDD), GLN (FDD), ULN (FDD) 60
