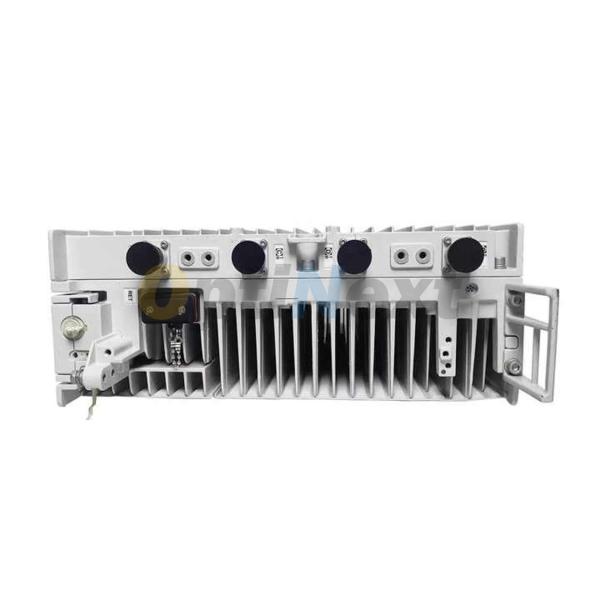

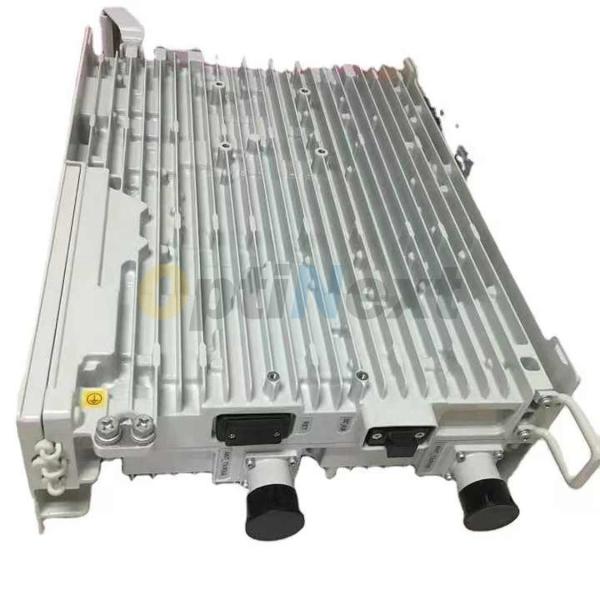

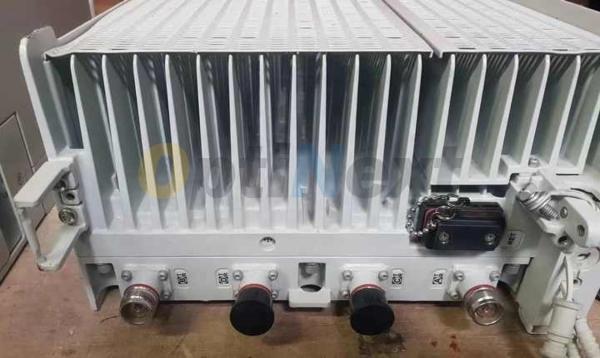

RRU3276
RRU3276
RRU3276
RRU3276
RRU3276
RRU3276
Specifications
Brand Name :
Huawei
Model Number :
RRU3276
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
15 working days
Description

3.1 RRU3276 (2300 MHz) RF Specifications

The RF specifications include the supported RATs, frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.

Supported Frequency Bands and RATs

Table 3-1 RATs and frequency bands supported by an RRU3276

Frequency Band (MHz)

Protocol-defined Band

Frequency Range (MHz)a

RAT

IBW (MHz)

OBW (MHz)
2300 Band 40 2300 to 2400 LTE TDD 100 80
a: Frequency Range indicates that the RX frequency range and TX frequency range of the RF module are the same.

4 RRU3276 (2600 MHz) Technical Specifications

The technical specifications of an RRU3276 (2600 MHz) include RF specifications, engineering specifications, and CPRI port specifications.

4.1 RRU3276 (2600 MHz) RF Specifications

The RF specifications include the supported RATs, frequency bands, TX/RX modes, capacity, output power, carrier configurations, and receiver sensitivity.

Supported Frequency Bands and RATs

Table 4-1 RATs and frequency bands supported by an RRU3276

Frequency Band (MHz)

Protocol-defined Band

Frequency Range (MHz)a

RAT

IBW (MHz)

OBW (MHz)
2600 Band 38 2575 to 2615 LTE TDD 40 40
2600 Band 41 2496 to 2690 LTE TDD 150 80
2600 Band 41 2520 to 2620 LTE TDD 100 80
a: Frequency Range indicates that the RX frequency range and TX frequency range of the RF module are the same.
