Galvanized Steel Optical Ground Wire
Galvanized Steel Optical Ground Wire
Galvanized Steel Optical Ground Wire
Galvanized Steel Optical Ground Wire
Galvanized Steel Optical Ground Wire
Galvanized Steel Optical Ground Wire
Specifications
Brand Name :
LITONG GLOBAL
Model Number :
LT-161228
Certification :
ISO9001-2008
Place of Origin :
ANHUI,CHINA
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
400tons/day
Packaging Details :
Standard export seaworthy packing in coil or on drum
Model NO. :
Galvanized Steel Core Wire
Material Shape :
Round Wire
Wire Core Material :
Steel
Model :
1.57-5.0mm
OEM :
Yes
Status :
Hard State
Loading capacity :
25tons/20"
Description

Galvanized Steel Core Wire for ACSR Conductor

Applications
The galvanized single steel wires or stranded steel wires are suitable for cores of ACSR to improve its tensile strength. And they can also be used in the aerial transmission line as the line material of ground connection to avoid the lightning strike. Messenger Wire, Overhead Ground or Static Wire, Guy Wire.

Standard
GSW meets or exceeds the following ASTM specifications:
• ASTM A-363 Zinc-Coated (Galvanized) Steel Overhead Ground Wire Strand
• ASTM A-475 Zinc-Coated Steel Wire Strand
• ASTM A-925 -5 % Aluminum-Mischmetal Alloy-Coated Steel Overhead Ground Wire Strand
• ASTM A-855 Zinc-5 % Aluminum-Mischmetal Alloy-Coated Steel Wire Strand
• ASTM A-640 Zinc-Coated Steel Strand for Messenger Support of Figure 8 Cable.

Norminal Diameter

Cross-section

(Mm2 )

Min.Tensile Strength

(MPA)

Caculated Breaking Loading

(KN)

Min.

zinc-coating

(g/m2)

 Max DC.resistance at 20 ℃Ω/km

Approx.weight

(Kg/km)
mm AWG
2.052 12 3.307 1340 4.5 0.103 25.64 21.80
2.304 11 4.169 1340 5.6 0.115 20.34 27.49
2.589 10 5.260 1340 7.1 0.130 16.12 34.66
2.904 9 6.633 1340 8.9 0.145 12.78 43.65
3.264 8 8.367 1340 11.2 0.163 10.14 55.14
3.477 7 9.495 1310 12.4 0.174 8.93 62.57
3.665 7 10.55 1280 13.5 0.183 8.04 69.48
3.934 6 12.16 1240 15.1 0.197 6.93 80.13
4.115 6 13.30 1210 16.0 0.206 6.38 87.62
4.392 5 15.15 1170 17.7 0.220 5.60 99.84
4.620 5 16.76 1140 19.1 0.231 5.06 110.50
4.775 4 17.91 1100 19.7 0.239 4.73 118.0
5.189 4 21.15 1070 22.6 0.259 4.01 139.34

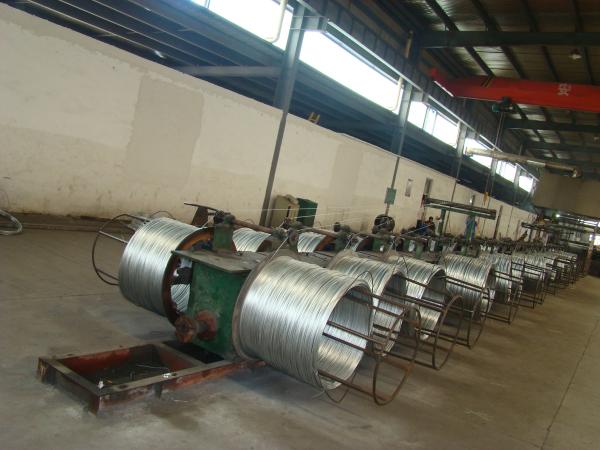

Production process

Galvanized Steel Optical Ground Wire

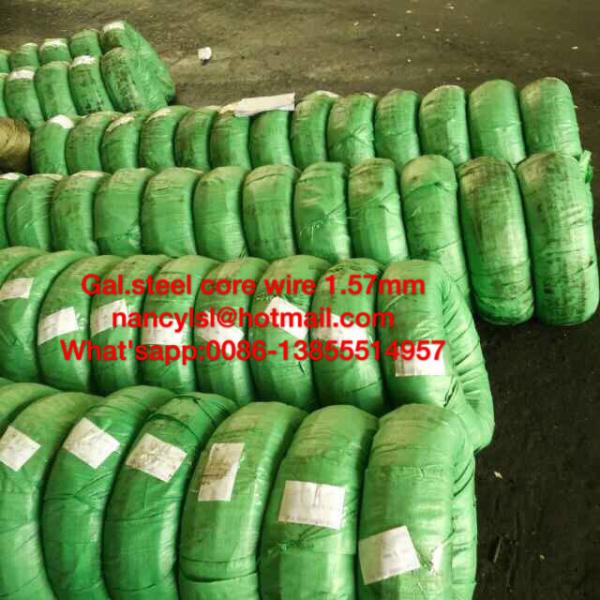

Package&Loading
Package in Export Wooden or Steel Wooden or Steel Drums or in Coil

Galvanized Steel Optical Ground Wire

Galvanized Steel Optical Ground Wire

Certificate

Galvanized Steel Optical Ground Wire

Customer Visit

Galvanized Steel Optical Ground Wire

Contact us:

Nancy

nancylsl@hotmail.com

Mobile:86-13855514957

What'app:86-13855514957

Skype:nancylsl

wechat:nancy13855514957
