High Carbon Wire Rod Galvanized Steel Wire Strand For Vibration Damper
High Carbon Wire Rod Galvanized Steel Wire Strand For Vibration Damper
High Carbon Wire Rod Galvanized Steel Wire Strand For Vibration Damper
High Carbon Wire Rod Galvanized Steel Wire Strand For Vibration Damper
High Carbon Wire Rod Galvanized Steel Wire Strand For Vibration Damper
High Carbon Wire Rod Galvanized Steel Wire Strand For Vibration Damper
High Carbon Wire Rod Galvanized Steel Wire Strand For Vibration Damper
High Carbon Wire Rod Galvanized Steel Wire Strand For Vibration Damper
Specifications
Place of Origin :
Anhui,China
Brand Name :
Litong Global
Certification :
ISO9001-2008
Model Number :
LT-160321
MOQ :
Negotiable
Price :
Negotiable

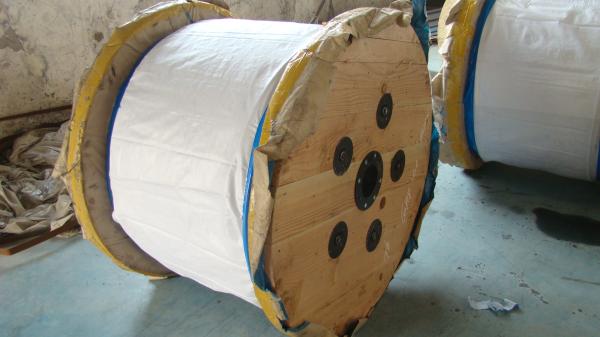

Packaging Details :
In Coil or on Packing
Delivery Time :
10 days after confirmed order or as per order quantity
Payment Terms :
TT/LC
Supply Ability :
400tons/day
Steel Grade :
High Carbon Wire Rod
Wire Gauge :
1.0-4.5mm
Type :
Galvanized
Alloy Or Not :
Non-alloy
Special Use :
Cold Heading Steel
Application :
ACSR Conductor,Guy Wire,Stay Wire
Standard :
AISI|ASTM|BS|DIN|GB|JIS
Description

Galvanized Steel Core Wire for ACSR Conductor as per ASTM B 498

Wire Diamater(mm)

Diamater Tolerance(mm)

Weight of Zinc-coating(g/m2)

Stress at 1% Extension,Min(Mpa)

Tensile Strength
Min.(Mpa)

Elongation in 250mm,Min(%)

1.57-1.90

+0.04,-0.03

210

1310

1450

3.0

Over 1.9-2.3

+0.04,-0.03

220

1310

1450

3.0

Over 2.3-2.7

+0.05,-0.05

230

1280

1410

3.5

Over 2.7-3.1

+0.05,-0.05

240

1280

1410

3.5

Over3.1-3.5

+0.08,-0.05

260

1240

1410

4.0

Over 3.5-3.9

+0.08,-0.05

270

1240

1410

4.0

Over 3.9-4.5

+0.1,-0.08

275

1170

1380

4.0

Over 4.5-4.8

+0.1,-0.08

300

1170

1380

4.0


Galvanized Steel Wire Strand for ACSR Conductor as per ASTM A 475

Norminal Diamater of Strand

No. of Wires

Diamater of Wire

Tolerance of Wire

Weight

Zinc-coating

Breaking Loading

mm

-

mm

mm

Kg/Km

g/m2

KN

3.18

7

1.04

±0.05

48

122

8.14

3.97

7

1.32

±0.05

76

122

13.078

4.76

7

1.57

±0.08

109

153

17.748

5.56

7

1.83

±0.08

146

153

24.02

6.35

7

2.03

±0.08

180

183

29.581

7.14

7

2.36

±0.10

244

214

39.812

7.94

7

2.64

±0.10

305

244

49.82

9.52

7

3.05

±0.10

407

259

68.503

11.11

7

3.68

±0.13

595

275

92.523

12.7

7

4.19

±0.13

770

275

119.657
