Flexible Overhead Electrical Wire Steel Wire Strand With Galvanized Type
Flexible Overhead Electrical Wire Steel Wire Strand With Galvanized Type
Flexible Overhead Electrical Wire Steel Wire Strand With Galvanized Type
Flexible Overhead Electrical Wire Steel Wire Strand With Galvanized Type
Flexible Overhead Electrical Wire Steel Wire Strand With Galvanized Type
Flexible Overhead Electrical Wire Steel Wire Strand With Galvanized Type
Flexible Overhead Electrical Wire Steel Wire Strand With Galvanized Type
Flexible Overhead Electrical Wire Steel Wire Strand With Galvanized Type
Specifications
Brand Name :
Litong Global
Model Number :
LT-160908
Certification :
ISP9001
Place of Origin :
ANHUI,CHINA
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
400tons/day
Packaging Details :
Coil or spool, drum
Material :
High Carbon Wire Rod
Standard :
AISI, ASTM, BS, DIN, GB, JIS,
Type :
Galvanized
Alloy Or Not :
Non-alloy
Special Use :
Cold Heading Steel
Tensile strength :
1000-1970mpa
Stress at 1% elongation :
≥1140mpa
Zinc coating :
Class A, B, C from 150g/m2-900g/m2
Package :
Coil or spool, drum,100-800kg
Product features :
Good anti-rusty, smooth surface
Description

Factory! 1.57-5.0mm hot dipped galvanized Steel Core wire for ACSR , guy wire, stay wire

Product Description

Product Standard: ASTM B498

Size(mm) Min Tensile Strength(Mpa) Min Stress at 1% Extension(mpa) Min Zinc Coating(g/m2) Min Elongation (%)
1.57-2.28 1450 1310 200 3
2.29-3.04 1410 1280 230 3.5
3.05-3.55 1410 1240 260 4
3.56-4.82 1380 1170 275 4

Product Standard: ASTM B957, Extra-High-Strength and Ultra-High-Strength Grade

Size(mm) Min Tensile Strength(Mpa) Min Stress at 1% Extension(mpa) Min Zinc Coating(g/m2) Min Elongation (%)
1.57-2.28 1965 1580 200 3
2.29-3.04 1900 1550 230 3
3.05-3.55 1860 1515 260 3.5
3.56-4.82 1825 1480 275 3.5

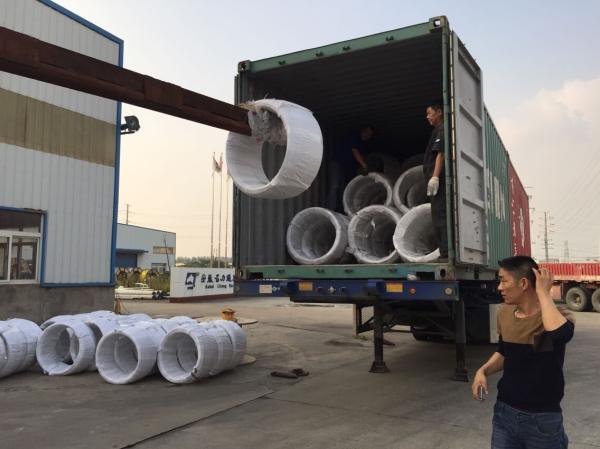

Packaging & Shipping

Package type Suitable size Unit weight Description
Coil 1.57-4.0MM 100-800KG With plastic and PE package
Wooden/ Iron Spool 1.57-5.0MM 100-800KG With wood pallet or strip outside
Our Services

Professional suggestion on package, technical requirement according to the application

Different transportation choice, EXW, FOB, CIF, DDP, etc.

Welcome to visit us and make on-site inspection!

Contact information

Attn:Ms Nancy

E-mail:nancylsl at hotmail.com

Cell/What'app:86-13855514957

Skype:nancylsl
