Marine Flange Non-Asbestos Sheet - Seawater & Salt Spray Resistant, IMO Compliant For Marine Diesel Engines

Available in thickness options from 0.5mm to 5.0mm, our advanced sealing materials adhere to marine engineering specifications. For optimal performance, we recommend selecting the minimum thickness suitable for your operational requirements.

Technical Composition & Performance:
Our engineered composite sheets combine aramid polymer reinforcements with nitrile rubber compounds, delivering exceptional chemical stability. These multilayer laminates demonstrate:
• Superior resistance to petroleum-based fluids and hydrocarbon fuels
• Reliable performance across aqueous media including seawater immersion
• Compatibility with compressed gases and LNG/LPG applications
Certified for deployment in marine propulsion systems, coastal power plants, and offshore drilling equipment.

Manufacturing Specifications:
Formulated through precision hot-roll compression and vulcanization processes using:

• Aramid fiber matrix

• Synthetic elastomer binders

• Mineral reinforcement particulates

• Polymer stabilizers

Temperature Grading System:
Three performance classifications (maximum continuous service temperatures):
CSNXB150: 150°C operational limit
CSNXB250: 250°C thermal threshold
CSNXB350: 350°C extreme heat rating

Key Advantages:
• Enhanced compression recovery maintains seal integrity under vibration
• Delamination-resistant layered construction
• Cost-effective alternative to metallic sealing solutions
• Full compliance with IMO MSC.282(86) regulations
• UKAS-accredited ISO 9001 manufacturing certification
• Asbestos-free composition verified through SGS testing

Marine Engineering Applications:
• Diesel engine block sealing surfaces
• Saltwater cooling system flanges
• Turbine casing interfaces
• Hydraulic system connections
• Ballast piping networks
• Marine compressor installations

Customizable Dimensions:
Standard sheet configurations:
Thickness range: 0.5-5.0mm
Panel sizes (LxW):
1270x1270mm | 1270x3810mm
1500x1500mm | 1500x2000mm | 1500x4500mm
Custom-cut dimensions available for bulk orders

This product meets MIL-G-21289B and ASTM F104 standards for marine sealing applications, providing corrosion-resistant solutions for harsh maritime environments.

Physical Property:

Items			CSNXB150	CSNXB250	CSNXB350
Tensile Strength		Mpa	7.0	8.0	10.0
Compressibility		%	7-17
Recovery		≥%	40	45	50
Creep relaxation		≤%	40	35	30
Density		g/cm3	1.8±0.1
Flexibility at room temperature		Bend 180°C on the rod with diameter which is 12 times of nominal thickness of the sample, no crack.
Immersed into ASTM 3# at 150ºC for 5h	Tensile Strength	MPa≥	5.0	6.0	7.0
	Weight Increase	≤%	30
Immersed into ASTM B at21-30ºC for 5h	Thickness Increase	-	0-20
	Flexibility	-	No crack
Working Temperature	Max/Continuous	ºC	200/150	300/250	350/300
Working Pressure	Max/Continuous	MPa	2.0/1.0	4.0/2.0	5.0/3.0

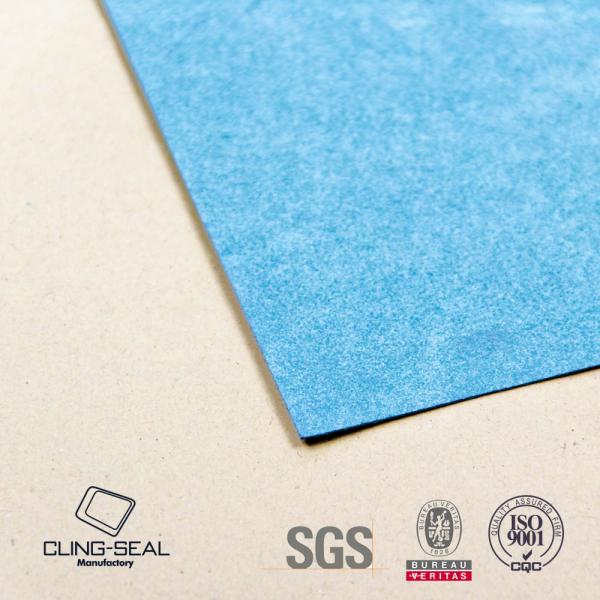

Product Shows


Product Technical Details
As a general rule, Non-asbestos jointing gasket sheet is:
• Good for use with water
• Good for use with petrol
• Have good resistance to oil
