Specifications
Brand Name :
CLINGSEAL
Model Number :
NXB150
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500KGS
Price :
1.5-4 USD PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200Tons per month
Delivery Time :
10-20 days
Packaging Details :
pallets or wooden case
Color :
Red,Green,Black
Material :
jointing gasket sheet compressed with aramid firbre and NBR
Application :
Sealing
Density :
1.8-2.0g/cm3
Compressibility :
7-17%
Recovery :
35%
Working Temperature :
150Deg
Description

Industrial Non Asbestos Gasket Oil Resistant For Automotive Engines/ Oil Pipelines / Marine Flanges

Industrial Grade Non-Asbestos Gasket - Oil & 500℃ Heat Resistant, Suitable For Automotive Engines, Oil Pipelines & Marine Flanges

From this page you can purchase non asbestos jointing gasket sheet from 0.5 to 5mm thickness. Remember that as a general rule you should select the thinnest material possible for your application.
General Properties of Non-asbestos jointing gasket sheet compressed with aramid firbre and NBR.It generally have very good oil resistant properties. They are also good for use in applications that put them into contact with water, petrol, or natural gas.
As such, non-asbestos jointing gasket are used in air compressors, diesel engines, pipelines, and many other general industrial and marine environments.

Product Information:

It made of aramid fiber, non asbestos mineral fiber, synthetic fiber, synthetic oil resistant rubber, Compressed by hot roller, vulcanized.

Product Type
It have following type based on different temperature(Numbers means peak temperature)
CSNXB150; CSNXB250; CSNXB350

Product Features:

·Good adaptability and durability, good sealing, no delamination, high yield
·An economical sealing gasket and exhaust, manifold gasket material
·Proved by ISO9001 UKAS,100% no asbestos
·Good oil-resistance.
Product Application:

Engine, Air compressor, Gearbox ,Pipe line and Flange sealing

Product Size:

Thickness-------0.5-5.0mm
Size---1500*1500mm,1500*2000mm,1500*4500mm,1270*1270mm,1270*3810mm
Size can be customized by clients.
Physical Property:

Items CSNXB150 CSNXB250 CSNXB350
Tensile Strength Mpa 7.0 8.0 10.0
Compressibility % 7-17
Recovery ≥% 40 45 50
Creep relaxation ≤% 40 35 30
Density g/cm3 1.8±0.1
Flexibility at room temperature Bend 180°C on the rod with diameter which is 12 times of nominal thickness of the sample, no crack.
Immersed into ASTM 3# at 150ºC for 5h Tensile Strength MPa≥ 5.0 6.0 7.0
Weight Increase ≤% 30
Immersed into ASTM B at21-30ºC for 5h Thickness Increase - 0-20
Flexibility - No crack
Working Temperature Max/Continuous ºC 200/150 300/250 350/300
Working Pressure Max/Continuous MPa 2.0/1.0 4.0/2.0 5.0/3.0
Industrial Non Asbestos Gasket Oil Resistant For Automotive Engines/ Oil Pipelines / Marine FlangesIndustrial Non Asbestos Gasket Oil Resistant For Automotive Engines/ Oil Pipelines / Marine FlangesIndustrial Non Asbestos Gasket Oil Resistant For Automotive Engines/ Oil Pipelines / Marine FlangesIndustrial Non Asbestos Gasket Oil Resistant For Automotive Engines/ Oil Pipelines / Marine Flanges

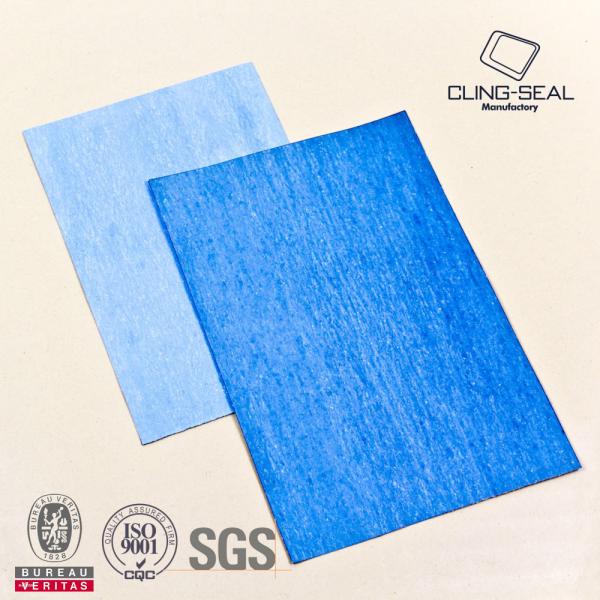

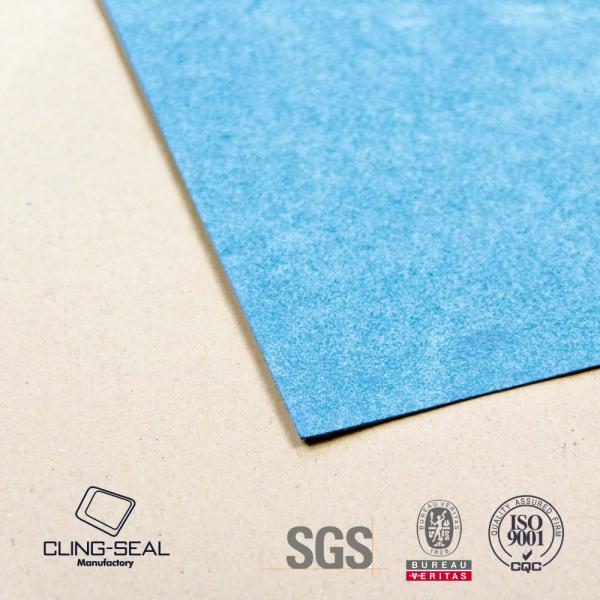

Product Shows


Product Technical Details
As a general rule, Non-asbestos jointing gasket sheet is:
• Good for use with water
• Good for use with petrol
• Have good resistance to oil

Industrial Non Asbestos Gasket Oil Resistant For Automotive Engines/ Oil Pipelines / Marine Flanges
