Specifications
Brand Name :
CLINGSEAL
Model Number :
NXB150
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500KGS
Price :
1.5-4 USD PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200Tons per month
Delivery Time :
10-20 days
Packaging Details :
pallets or wooden case
Color :
Grey
Material :
jointing gasket sheet compressed with aramid firbre and NBR
Application :
Sealing and gasketing in various industries
Density :
1.5 g/cm3
Compressibility :
7-17%
Recovery :
35%
Working Temperature :
150Deg
Pressure Range :
0-1000psi
Feature :
Wide range of temperatures
Chemical Resistance :
Excellent
Temperature :
200-500 Celsius Degrees
Elongation :
15%
Pressure :
2.0-5.0Mpa
Temperature Range :
-100°C to 500°C
Thickness :
1.0mm
Water Resistance :
Good
Tensile Strength :
10MPa
Width :
1m
Oil Resistance :
Good
Pressure Resistance :
Up to 100 bar
Ph Range :
2-12
Fluid Compatibility :
Water, oil, gas, steam, etc.
Type :
Gasket sheet
Length :
1000mm
Certifications :
FDA, RoHS, REACH
Water Absorption :
Less than 5%
Leakage Rate :
0.01 cm3/min
Description

Non-Asbestos Latex Fiber Gasket Sheet for Industrial Sealing Heat Oil and Pressure Resistant for Mechanical Equipment and Insulation

Non-Asbestos Latex Fiber Gasket Sheet for Industrial Sealing – Heat, Oil, and Pressure Resistant for Mechanical Equipment and Insulation Applications​
When it comes to industrial sealing solutions, the non-asbestos latex fiber gasket sheet stands out as a versatile choice, available in thicknesses from 0.5mm to 5mm. A smart selection tip: opt for the thinnest variant that meets your specific application needs. This approach not only cuts down on costs but also guarantees top-notch performance in sealing tasks.​
Core Composition & Manufacturing Craft​
This innovative gasket sheet is a blend of aramid fiber, non-asbestos mineral fiber, synthetic fiber, and oil-resistant synthetic rubber. Its production involves two key steps: hot-roller compression and vulcanization. These processes work together to create a gasket with a robust internal structure, high density, and impressive physical properties, laying a solid foundation for its reliable performance.​
Model Classification by Temperature Resistance​
The product is categorized based on its peak temperature tolerance (indicated by specific numbers), ensuring there’s a suitable option for various high-temperature working environments.

Contact Medium Performance
Oil High resistance, maintains integrity and sealing performance
Water Does not degrade, suitable for wet environments
Petrol Resistant to corrosion and swelling
Natural Gas Prevents leakage, reliable for gas - related applications

Key Advantages​
  • 100% Asbestos-Free & Certified Quality: Safety is a top priority, and this gasket sheet delivers by being completely free of asbestos, fostering a secure workplace. It also holds ISO9001 UKAS certification, a mark of strict adherence to high manufacturing standards and superior quality.​
  • Exceptional Sealing Performance: It forms a tight, reliable seal that effectively prevents fluid or gas leakage. A standout feature is its resistance to delamination, which ensures the seal remains consistent and trustworthy over time. Additionally, the high production yield rate means you’re getting a premium product every time.​
  • Superior Heat, Oil & Pressure Resistance: Tailored for industrial settings, it excels in withstanding high temperatures, making it suitable for heat-intensive equipment. Its excellent oil resistance is a boon for machinery where oil is present, while its ability to handle pressure changes ensures sealing integrity even under varying pressure conditions.​
  • Durable & Adaptable: This gasket sheet is built to last. It can endure mechanical vibrations, sudden pressure shifts, and temperature fluctuations without losing its sealing effectiveness. Its strong adaptability to different working conditions translates to a long service life, reducing the hassle and cost of frequent replacements.​
  • Cost-Effective Solution: Whether used as an exhaust gasket or manifold gasket material, it offers a budget-friendly alternative that doesn’t skimp on performance, making it an economical choice for various sealing needs.

Product Type Peak Temperature
CSNXB150 150°C
CSNXB250 250°C
CSNXB350 350°C
Ideal Application Scenarios​
  • Engine Systems: It plays a vital role in sealing different engine components, stopping leaks of oil, coolant, and exhaust gases. This not only keeps the engine running efficiently but also minimizes the risk of damage.​
  • Air Compressors: By sealing air and oil passages, it helps maintain optimal pressure levels and prevents leaks, contributing to improved energy efficiency and extending the compressor’s lifespan.​
  • Gearboxes: It creates a reliable seal between gearbox components, preventing lubricating oil leakage. This ensures smooth gear operation and reduces wear and tear, keeping the gearbox in good working order.​
  • Pipelines & Flanges: Used to seal pipelines and flanges, it effectively stops fluid or gas leakage, which is essential for the safe and efficient operation of piping systems.

Product Size

The gasket sheet is available in various standard sizes, as shown in the table below:

Thickness (mm) Dimensions (mm)
0.5 - 5.0 1500*1500
0.5 - 5.0 1500*2000
0.5 - 5.0 1500*4500
0.5 - 5.0 1270*1270
0.5 - 5.0 1270*3810

In addition to these standard sizes, we also offer custom - sizing services. If the standard sizes do not meet your requirements, you can provide us with your specific dimensions, and we will manufacture the gasket sheet according to your needs.

Physical Property:

Items CSNXB150 CSNXB250 CSNXB350
Tensile Strength Mpa 7.0 8.0 10.0
Compressibility % 7-17
Recovery ≥% 40 45 50
Creep relaxation ≤% 40 35 30
Density g/cm3 1.8±0.1
Flexibility at room temperature Bend 180°C on the rod with diameter which is 12 times of nominal thickness of the sample, no crack.
Immersed into ASTM 3# at 150ºC for 5h Tensile Strength MPa≥ 5.0 6.0 7.0
Weight Increase ≤% 30
Immersed into ASTM B at21-30ºC for 5h Thickness Increase - 0-20
Flexibility - No crack
Working Temperature Max/Continuous ºC 200/150 300/250 350/300
Working Pressure Max/Continuous MPa 2.0/1.0 4.0/2.0 5.0/3.0
Non-Asbestos Latex Fiber Gasket Sheet for Industrial Sealing Heat Oil and Pressure Resistant for Mechanical Equipment and InsulationNon-Asbestos Latex Fiber Gasket Sheet for Industrial Sealing Heat Oil and Pressure Resistant for Mechanical Equipment and InsulationNon-Asbestos Latex Fiber Gasket Sheet for Industrial Sealing Heat Oil and Pressure Resistant for Mechanical Equipment and InsulationNon-Asbestos Latex Fiber Gasket Sheet for Industrial Sealing Heat Oil and Pressure Resistant for Mechanical Equipment and Insulation

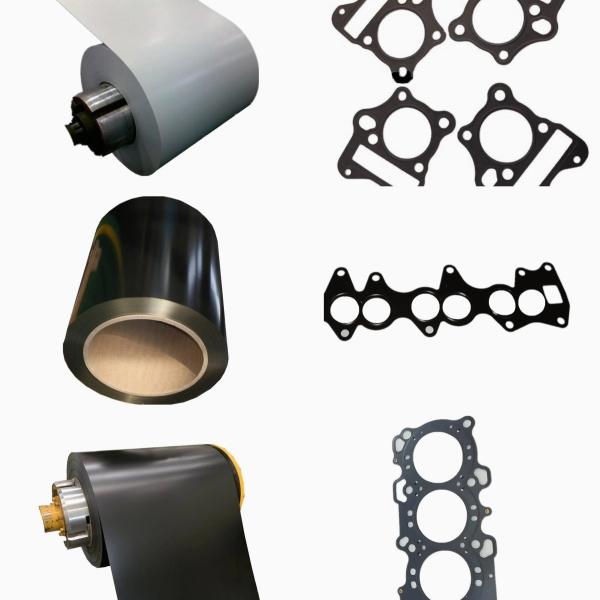

Product Shows


Product Technical Details
As a general rule, Non-asbestos jointing gasket sheet is:
• Good for use with water
• Good for use with petrol
• Have good resistance to oil
