High-Performance Non-Asbestos Latex Fiber Gasket Sheet Heat Resistant Oil Resistant For Pumps , Engines And Flanges
High-Performance Non-Asbestos Latex Fiber Gasket Sheet Heat Resistant Oil Resistant For Pumps , Engines And Flanges
High-Performance Non-Asbestos Latex Fiber Gasket Sheet Heat Resistant Oil Resistant For Pumps , Engines And Flanges
High-Performance Non-Asbestos Latex Fiber Gasket Sheet Heat Resistant Oil Resistant For Pumps , Engines And Flanges
High-Performance Non-Asbestos Latex Fiber Gasket Sheet Heat Resistant Oil Resistant For Pumps , Engines And Flanges
High-Performance Non-Asbestos Latex Fiber Gasket Sheet Heat Resistant Oil Resistant For Pumps , Engines And Flanges
Specifications
Brand Name :
CLINGSEAL
Model Number :
NXB150
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
500KGS
Price :
1.5-4 USD PER KG
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
200Tons per month
Delivery Time :
10-20 days
Packaging Details :
pallets or wooden case
Color :
Black
Material :
Non Asbestos
Application :
Sealing of flanges, pumps, valves, and other industrial equipment
Density :
1.5 g/cm3
Compressibility :
5-15%
Recovery :
35%
Working Temperature :
150Deg
Temperature Range :
-100°C to 400°C
Thickness :
0.5-6.0 mm
Usual Color :
Green, Blue, Black, Red
Oil Resistance :
Good
Pressure Range :
Up to 100 bar
Tensile Strength :
10-20 MPa
Water Resistance :
Good
Pressure :
2.0-5.0Mpa
Feature :
Wide range of temperatures
Steam Resistance :
Good
Chemical Resistance :
Resistant to most chemicals except strong oxidizing agents
Temperature :
200-500 Celsius Degrees
Fluid Compatibility :
Wide range of fluids
Length :
1000-1500 mm
Elongation :
10%
Custom Sizes :
Available upon request
Certifications :
FDA, RoHS, REACH
Sealing Performance :
High
Size :
Standard sizes or customized
Flexural Strength :
15 MPa
Standard Size :
1000mm x 1000mm
Description

High-Performance Non-Asbestos Latex Fiber Gasket Sheet Heat Resistant Oil Resistant For Pumps , Engines And Flanges

High-Performance Non-Asbestos Latex Fiber Gasket Sheet – Heat Resistant, Oil Resistant, Ideal for Pumps, Engines, and Flanges​
If you're seeking a top-notch sealing solution, the high-performance non-asbestos latex fiber gasket sheet is a standout choice. It's available in thicknesses from 0.5mm to 5mm. A useful guideline: select the thinnest sheet that meets your application demands. This not only helps cut costs but also ensures the product delivers optimal performance.​
Makeup and Manufacturing Steps​
This high-performance gasket sheet is composed of aramid fiber, non-asbestos mineral fiber, synthetic fiber, and synthetic oil-resistant rubber. Its production involves hot-roller compression and vulcanization. These steps are crucial in creating a gasket with a strong internal structure, high density, and excellent physical properties.​
Product Varieties​
The product comes in different varieties, each with a specific peak temperature tolerance (denoted by numbers). This ensures there's a suitable option for various temperature conditions in different applications.​
Key Traits​
  • Non-Asbestos and Certified: Safety is paramount, and this gasket sheet is 100% asbestos-free, providing a secure working environment. It's also certified by ISO9001 UKAS, a testament to its high quality and adherence to strict manufacturing standards.​
  • Superior Sealing: It forms a tight seal, effectively preventing the leakage of fluids and gases. Notably, it doesn't delaminate, which is vital for maintaining a consistent seal over time. The high production yield rate guarantees a quality product.​
  • Heat and Oil Resistance: As highlighted in the title, it excels in heat resistance, making it suitable for high-temperature environments. Its excellent oil resistance also makes it perfect for applications where oil is present.​
  • Durable and Adaptable: Built to last, this gasket sheet can withstand mechanical vibrations, pressure changes, and temperature fluctuations without losing its sealing ability. Its adaptability to different working conditions ensures a long service life, reducing the need for frequent replacements.​
  • Economical: Whether used in pumps, engines, or flanges, it offers a cost-effective solution. You don't have to compromise on performance to save money.
Suitable Applications​
  • Engines: In engines, it seals various components, preventing the leakage of oil, coolant, and exhaust gases. This helps the engine operate efficiently and reduces the risk of damage.​
  • Pumps: It plays a key role in pumps by sealing crucial parts, preventing fluid leakage and ensuring efficient pump operation.​
  • Flanges: When used on flanges, it creates a tight seal, stopping the leakage of fluids and gases. This is essential for the safe and efficient operation of flange connections.​
  • Other Areas: Beyond pumps, engines, and flanges, it's also suitable for air compressors, gearboxes, and pipelines, contributing to their smooth and reliable operation.​

Physical Property:

Items CSNXB150 CSNXB250 CSNXB350
Tensile Strength Mpa 7.0 8.0 10.0
Compressibility % 7-17
Recovery ≥% 40 45 50
Creep relaxation ≤% 40 35 30
Density g/cm3 1.8±0.1
Flexibility at room temperature Bend 180°C on the rod with diameter which is 12 times of nominal thickness of the sample, no crack.
Immersed into ASTM 3# at 150ºC for 5h Tensile Strength MPa≥ 5.0 6.0 7.0
Weight Increase ≤% 30
Immersed into ASTM B at21-30ºC for 5h Thickness Increase - 0-20
Flexibility - No crack
Working Temperature Max/Continuous ºC 200/150 300/250 350/300
Working Pressure Max/Continuous MPa 2.0/1.0 4.0/2.0 5.0/3.0
High-Performance Non-Asbestos Latex Fiber Gasket Sheet Heat Resistant Oil Resistant For Pumps , Engines And FlangesHigh-Performance Non-Asbestos Latex Fiber Gasket Sheet Heat Resistant Oil Resistant For Pumps , Engines And FlangesHigh-Performance Non-Asbestos Latex Fiber Gasket Sheet Heat Resistant Oil Resistant For Pumps , Engines And FlangesHigh-Performance Non-Asbestos Latex Fiber Gasket Sheet Heat Resistant Oil Resistant For Pumps , Engines And Flanges

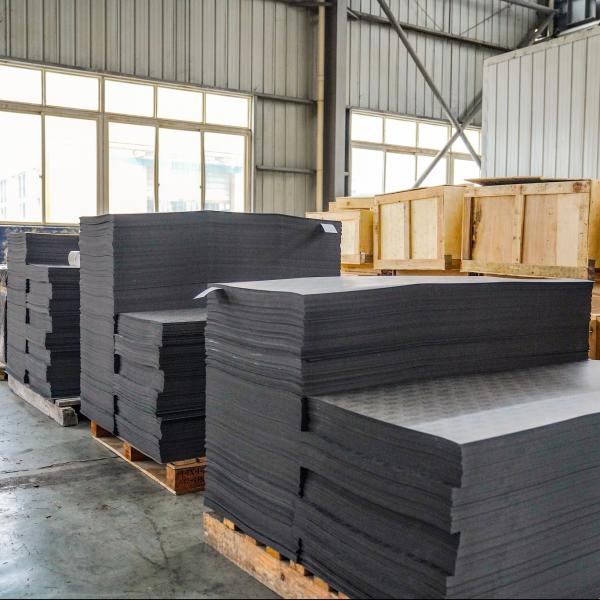

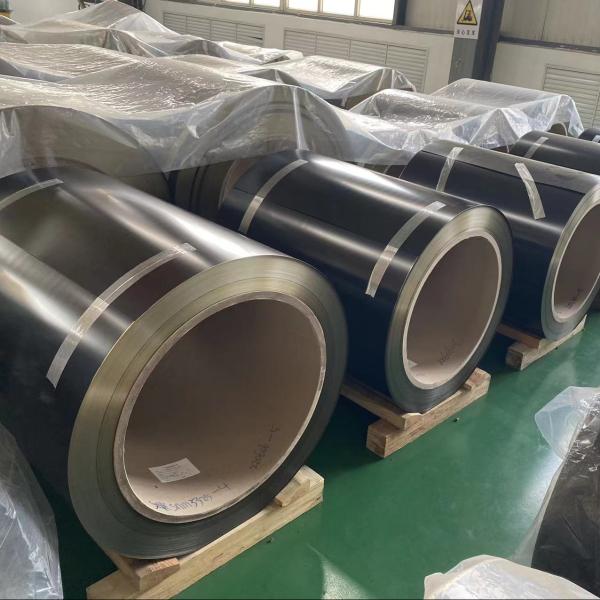

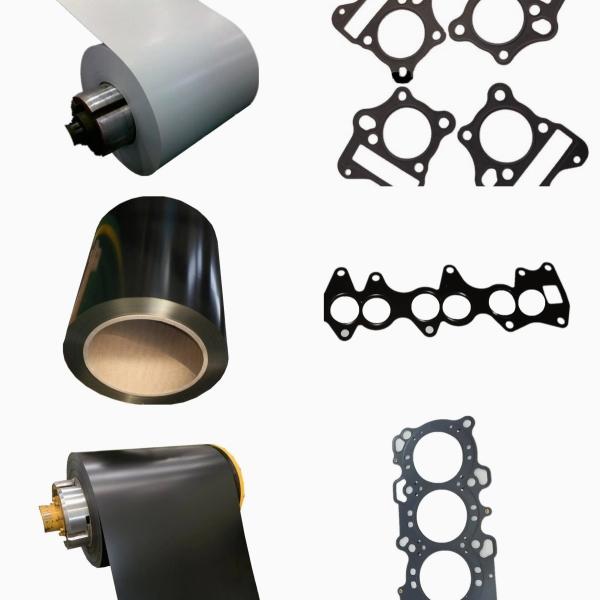

Product Shows


Product Technical Details
As a general rule, Non-asbestos jointing gasket sheet is:
• Good for use with water
• Good for use with petrol
• Have good resistance to oil
