1310/1480/1550nm Fiber Patch Cord 1 Core 2 Core For Optical Communication
1310/1480/1550nm Fiber Patch Cord 1 Core 2 Core For Optical Communication
1310/1480/1550nm Fiber Patch Cord 1 Core 2 Core For Optical Communication
1310/1480/1550nm Fiber Patch Cord 1 Core 2 Core For Optical Communication
1310/1480/1550nm Fiber Patch Cord 1 Core 2 Core For Optical Communication
1310/1480/1550nm Fiber Patch Cord 1 Core 2 Core For Optical Communication
Specifications
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
MOQ :
1pieces
Payment Terms :
L/C,T/T
Delivery Time :
5-8 work days
Supply Ability :
100,000 pieces per month
Name :
Fiber Optic Components
Channel Configuration :
1Core, 2Core
Operating Wavelength :
1310/1480/1550nm, 980/1064nm, 780/850nm, 650nm, 460nm, 405nm
Insertion Loss :
Max 0.5dB, 0.6dB, 1.0dB, 1.5dB, 2.5dB
Core NA :
0.12
Mode Field Diameter :
9.3±0.5µm @1300, 6.6±0.5µm @980, 5.3±1.0µm @850, 4.5±0.5µm @630, 3.3±0.5µm @515, 3.3±0.5µm @405
Return Loss :
45dB @ PC, 55dB @ APC
Description
Patch Cords Fiber Patch 1Core 2Core 1310/1480/1550nm 980/1064nm 780/850nm 650nm 460nm 405nm For Optical Communication, Fiber Laser And Optical Instrument
1. Product Description

These Patch Cords are fiber optic jumper assemblies designed for applications in optical communications, fiber lasers, optical testing, and precision transmission systems.

2. Key Features
Parameter Unit Value
Channel Configuration - 1Core,2Core
Operating Wavelength nm 1310/1480/1550 980/1064 780/850 650 460 405
Operating Wavelength Range nm 1270～1625 970～1550 770～1100 620～850 460~700 400~680
Insertion Loss Max dB 0.5 0.6 1.0 1.5 2.5 2.5
Core NA - 0.12 0.12 0.12 0.12 0.12 0.12
Mode Field Diameter Min µm 9.3±0.5 @1300 6.6±0.5 @980 5.3±1.0 @850 4.5±0.5@630 3.3 ± 0.5@ 515 3.3 ± 0.5@405
Return Loss (Min) Min dB 45 @ PC, 55 @ APC
Power Handing (Max) mW 500 300 300 100 100 100
Fiber Type - G657A1/A2/B3 980 780 630 460 405
Fiber Coating µm 250 µm / 900 µm Blue loose tube
Fiber Length m 1,2,3,5,10,15

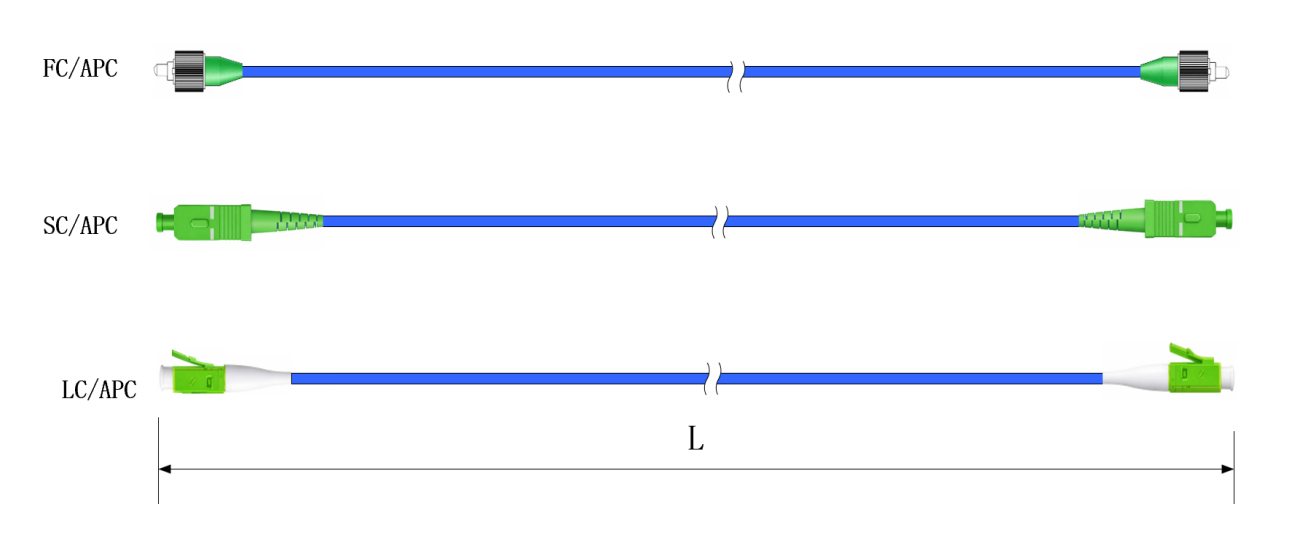

Connector - FC/ SC/LC/ST/E2000,or Customized
Operating Temperature °C -5~65
Storage Temperature °C -40~85
  • Supports 1-core and 2-core configurations
  • Compatible with 1310/1480/1550nm, 980/1064nm, 780/850nm, 650nm, 460nm, and 405nm wavelength bands
3. Applications
  • Optical communication equipment
  • Fiber lasers
  • Optical test instrumentation
  • Laboratory optical path connections
  • Interconnection of optical modules and components
  • OEM fiber assembly integration
