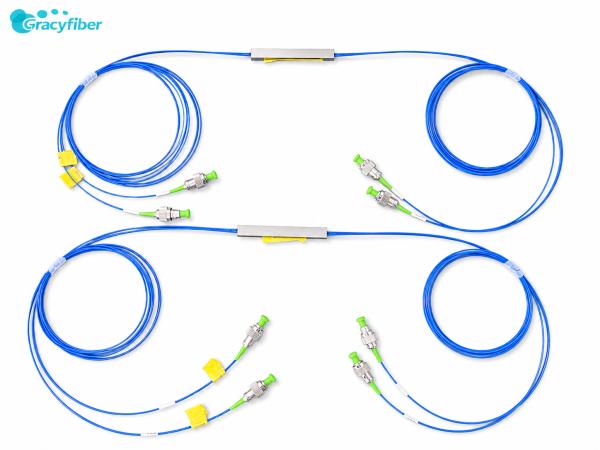

OEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber Sensor
OEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber Sensor
OEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber Sensor
OEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber Sensor
OEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber Sensor
OEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber Sensor
OEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber Sensor
OEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber Sensor
Specifications
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
Delivery Time :
5-8 work days
Payment Terms :
L/C,T/T
Supply Ability :
100,000 pieces per month
MOQ :
1pieces
Operating Wavelength :
1260~1650 nm
Insertion Loss :
≤8.2 dB
Extinction Ratio :
≥18 dB
Return Loss :
≥50 dB
Power Handling :
300 mW
Operating Temperature :
-5~+65 ℃
Description
OEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber Sensor
1. Features
  • Low Insertion loss
  • High Extinction Ratio
  • Compact Design
  • Good Channel-to-channel Uniformity
  • Wide Operating Wavelength
  • High Reliability and Stability
2. Applications
  • Coherent communication
  • Fiber Optic Gyroscope
  • Fiber Sensor
3. Specifications
Parameters Unit Value
Operating Wavelength nm 1260~1650
Test Wavelength nm 1550
Insertion Loss dB ≤8.2
Uniformity dB ≤0.8
Extinction Ratio dB ≥18
Return Loss dB ≥50
Directionality dB ≥50
Pigtail / Input: 0.9m blue hytrel tube
Output: 3.0mm yellow PVC Tube
Input & Output Length m 0.5±0.03
Connector / Input=FC/APC (slow axis work),
Output=MPO/APC (male) - (Fast axis work)
Fiber Mark / Numbering tube
Package Dimension mm 100×80×10
Power mW 300
Operating Temperature ℃ -5~+65
Storage Temperature ℃ -40～+85
Fiber Type / PM 15-U25D


OEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber Sensor


OEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber Sensor


OEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber SensorOEM 2x(1x4) PM PLC Splitter Polarization Maintaining High ER>18dB Low IL PM15-U25D Fiber FC to MPO/APC Connector for Coherent Communication Fiber Sensor


FAQ

1. As an OEM product, what level of customization do you support in terms of polarization mapping, polarization axis, and specific parameters?
We offer the deepest engineering-level customization services. For this FC to MPO device, you can precisely specify slow axis alignment (default) or fast axis alignment; on the MPO side, we support customized specific polarity mapping rules (Polarity Type A/B/C) and channel allocation. Furthermore, non-standard operating wavelengths, specific cable lengths, and high-precision FC/APC structures with narrow keys can all be quickly prototyped and mass-produced strictly according to your system schematics.


2. How do you control lead times and production scheduling for large-scale bulk orders from system equipment vendors?
The coupling and testing cycle for MPO polarization-maintaining devices is relatively long, but we have a high-capacity, highly automated precision passive device packaging production line. For standard-specification FC-MPO dual-group polarization-maintaining splitters, samples and small-batch orders can typically complete rigorous testing and be delivered within 1-2 weeks; for large-scale coherent communication or sensing infrastructure orders, the standard lead time is strictly controlled within 3-4 weeks. Our core engineering and manufacturing capabilities ensure that your R&D and mass production milestones are met on time.
