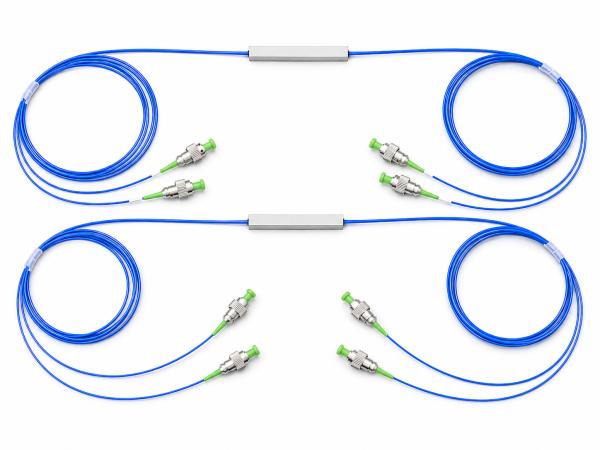

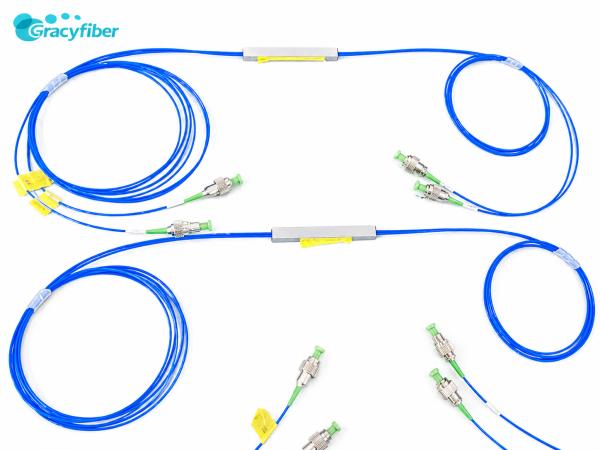

2x (1x4) PM PLC Splitter
2x (1x4) PM PLC Splitter
2x (1x4) PM PLC Splitter
2x (1x4) PM PLC Splitter
2x (1x4) PM PLC Splitter
2x (1x4) PM PLC Splitter
Specifications
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
Delivery Time :
5-8 work days
Payment Terms :
L/C,T/T
Supply Ability :
100,000 pieces per month
MOQ :
1pieces
Operating Wavelength :
1260~1650 nm
Insertion Loss :
≤8.2 dB
Uniformity :
≤0.8 dB
Extinction Ratio :
≥18 dB
Return Loss :
≥50 dB
Operating Temperature :
-5~+65 ℃
Description


1. Features

Ø Low Insertion loss

Ø High Extinction Ratio

Ø Compact Design

Ø Good Channel-to-channel Uniformity

Ø Wide Operating Wavelength

Ø High Reliability and Stability

2. Applications

Ø Coherent communication

Ø Fiber Optic Gyroscope

Fiber Sensor


3. Specifications

Parameters

Unit

Value

Operating Wavelength

nm

1260~1650

Test Wavelength

nm

1550

Insertion Loss

dB

≤8.2

Uniformity

dB

≤0.8

Extinction Ratio

dB

≥18

Return Loss

dB

≥50

Directionality

dB

≥50

Pigtail

/

Input:0.9m blue hytrel tube

Output:3.0mm yellow PVC Tube

Input & Output Length

m

0.5±0.03

Connector

/

Input=FC/APC(slow axis work),

Output=MPO/APC(male)-(Fast axis work)

Fiber Mark

/

Numbering tube

Package Dimension

mm

100×80×10

Power

mW

300

Operating Temperature

℃

-5~+65

Storage Temperature

℃

-40～+85

Fiber Type

/

PM 15-U25D


2x (1x4) PM PLC Splitter

2x (1x4) PM PLC Splitter

2x (1x4) PM PLC Splitter



FAQ


1. How do you ensure high polarization extinction ratio (PER) and low loss in a dual-array structure?

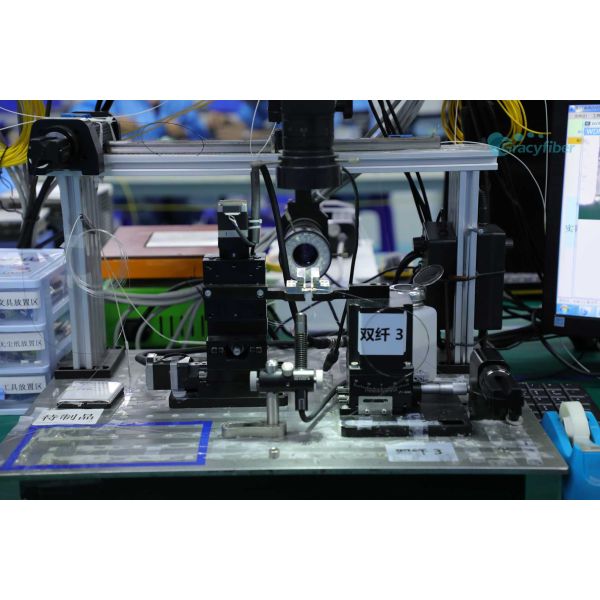

The core of polarization-maintaining devices lies in the precise alignment of the polarization axis. Leveraging mature semiconductor-level coupling and alignment processes, we ensure that both 1x4 channels exhibit extremely low insertion loss (IL) and excellent channel uniformity. Simultaneously, the single-channel polarization extinction ratio (PER) remains stable at ≥ 20 dB. Before shipment, each port undergoes 100% rigorous 3D interferometer and high-precision polarization state testing.

2. Do you support deep customization (OEM/ODM) of polarization axis alignment, package size, and interfaces?
Fully supported. As a source factory with strong R&D capabilities, we offer highly flexible customization services. You can precisely specify slow axis alignment (default) or fast axis alignment; for packaging, we offer various forms such as micro steel tubes and compact ABS boxes; and we can customize high-precision FC/APC connectors with narrow keys and specific fiber lengths according to drawings.
