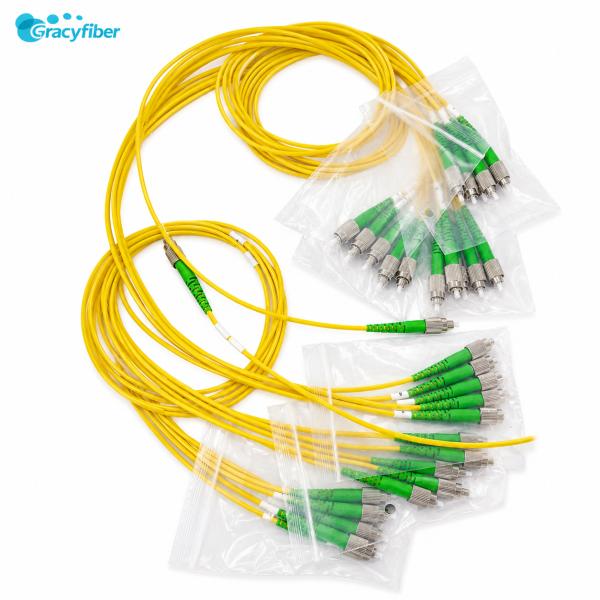

Single Mode Multimode Fiber Optic Patch Cord , Fiber Optic Pigtail LC/SC/FC/ST Patch Cables
Single Mode Multimode Fiber Optic Patch Cord , Fiber Optic Pigtail LC/SC/FC/ST Patch Cables
Single Mode Multimode Fiber Optic Patch Cord , Fiber Optic Pigtail LC/SC/FC/ST Patch Cables
Single Mode Multimode Fiber Optic Patch Cord , Fiber Optic Pigtail LC/SC/FC/ST Patch Cables
Specifications
Place of Origin :
Guangdong , China
Brand Name :
Gracyfiber
Certification :
ISO9001 , ROHS
MOQ :
1pieces
Payment Terms :
L/C,T/T
Delivery Time :
5-8 work days
Supply Ability :
100,000 pieces per month
Name :
Fiber Optic Patch Cord
Insertion loss :
≤ 0.2 dB
Operating wavelength :
1260 nm to 1650 nm
Operating temperature :
-40°C to +85°C
Return loss :
≥ 50 dB
Fiber core diameter :
9/125, 62.5/125, 50/125 um
Tensile strength :
80N (long term), 150N (short term)
Description

Fiber Optic Patch Cord & Pigtail Manufacturer | LC/SC/FC/ST Patch Cables | Gracyfiber

1. Product Overview

Gracyfiber Fiber Optic Patch Cords and Pigtails provide reliable, low-loss optical connectivity for telecom, datacom, FTTx, and enterprise networks.

2. Product Features
Item Parameters
Fiber type G652D G657A1 G657A2 OM1 OM2 OM3 OM4
Fiber core/cladding dia (um) 9/125 62.5/125 50/125
Fiber count 1 core or 2 cores
Material PVC or LSZH
Color Yellow Orange Aqua Magenta
Nom. diameter (mm) 2.0, 3.0, 0.9 or others
Strength member Kevlar
Attenuation(dB/km) ≤0.4@1310nm ≤3.0@850nm
≤0.3@1550nm ≤1.0@1300nm
Insert loss (dB) ≤0.3
Return loss (dB) ≥50(PC) –
≥60(APC) –
Structure Diagram:
Name Description Quantity
Fiber Connector FC, LC, SC, ST…APC or UPC 1 or 2
Fiber Cable G652D,G657A1,G657A2,OM1,OM2,OM3,OM4… L (m)
Fiber Connector FC, LC, SC, ST… APC or UPC 1 or 2
Mechanical Dimensions:
Minimum Bending Radius Cable Dynamic 20xOD, OD=outer diameter
Static 10xOD, OD=outer diameter
Tensile Strength Long term tensile force: 80N
(according to IEC 60794-1-2 E1) Short term tensile force: 150N
Crush (according to IEC 60794-1-2 E3) Long term: 100 N/100mm
Short term: 500 N/100mm


3. Applications

  • ODF

  • Backbone network

  • Data center

  • ONT interconnects

  • Telecom and FTTx networks
