1060nm FBT Coupler Module Hi1060 Fiber Cascaded 5 95 and 50 50 Optical Coupler Module FC APC ABS Box for Fiber Laser System
1060nm FBT Coupler Module Hi1060 Fiber Cascaded 5 95 and 50 50 Optical Coupler Module FC APC ABS Box for Fiber Laser System
1060nm FBT Coupler Module Hi1060 Fiber Cascaded 5 95 and 50 50 Optical Coupler Module FC APC ABS Box for Fiber Laser System
1060nm FBT Coupler Module Hi1060 Fiber Cascaded 5 95 and 50 50 Optical Coupler Module FC APC ABS Box for Fiber Laser System
1060nm FBT Coupler Module Hi1060 Fiber Cascaded 5 95 and 50 50 Optical Coupler Module FC APC ABS Box for Fiber Laser System
1060nm FBT Coupler Module Hi1060 Fiber Cascaded 5 95 and 50 50 Optical Coupler Module FC APC ABS Box for Fiber Laser System
Specifications
Optical path difference :
7 ± 1 mm
Wavelength :
1060nm
Fiber type :
HI1060 single-mode fiber
Fiber length :
1 ± 0.1 m
Description

1060nm FBT Coupler Module Hi1060 Fiber Cascaded 5 95 and 50 50 Optical Coupler Module FC APC ABS Box for Fiber Laser System

Product Overview:

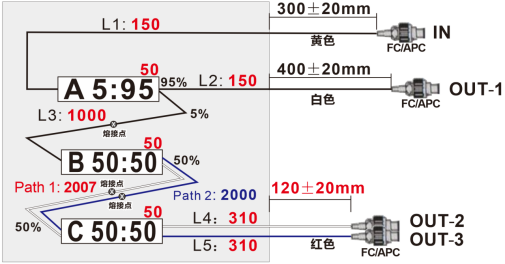

The FBT 1060 coupler module integrates three FBT (Fused Biconical Taper) coupler units—1×2 5:95, 1×2 50:50, and 2×2 50:50—to form a composite optical circuit with one input and three outputs.

Key Features:

1060nm FBT Coupler Module Hi1060 Fiber Cascaded 5 95 and 50 50 Optical Coupler Module FC APC ABS Box for Fiber Laser System

1060nm FBT Coupler Module Hi1060 Fiber Cascaded 5 95 and 50 50 Optical Coupler Module FC APC ABS Box for Fiber Laser System

  • Composite FBT coupler module with 1 input and 3 outputs
  • Integrated 1×2 5:95 splitter
  • Integrated 1×2 50:50 splitter
  • Integrated 2×2 50:50 coupler
  • HI1060 single-mode fiber
  • Optical path difference of 7 ± 1 mm between Path 1 and Path 2
  • Fiber length of 1 ± 0.1 m (IN to OUT-1)
  • FC/APC connectors
  • 0.9 mm colored loose tube

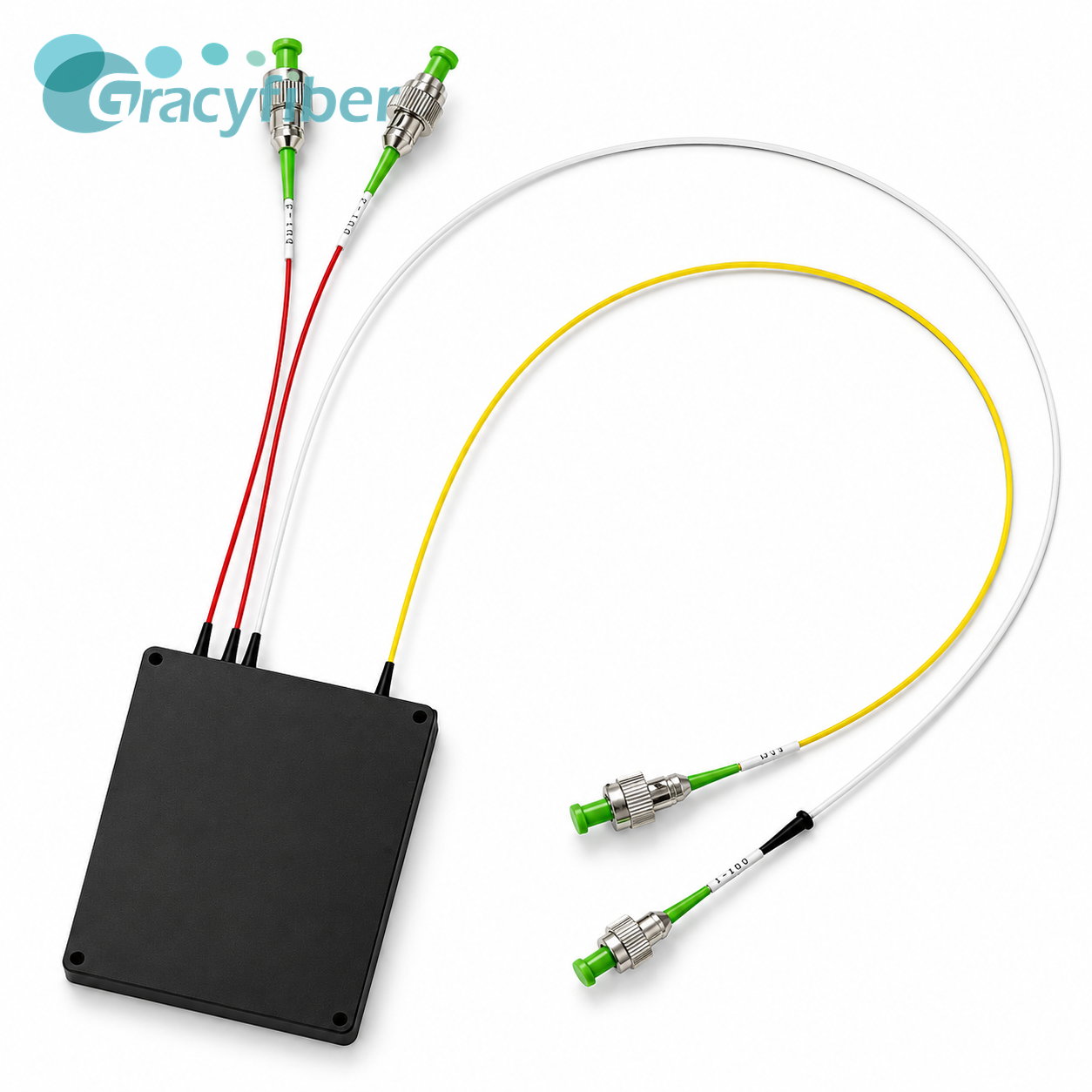

  • Yellow tubing at input
  • White tubing at OUT-1
  • Red tubing at OUT-2 and OUT-3

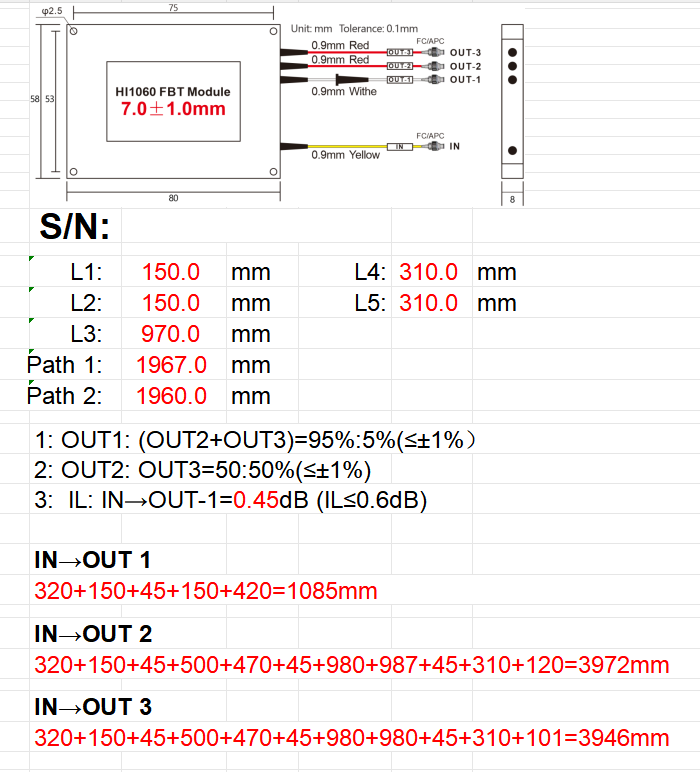

  • ABS module dimensions: 80 × 58 × 8 mm
  • Built-in HI1060 FBT module
  • Customizable pigtails and optical path lengths

Applications:

  • 1060 nm fiber laser systems
  • Optical power distribution and monitoring
  • Fiber-optic interferometry systems
  • Fiber-optic sensing systems
  • Laser test and measurement equipment
  • Multi-stage optical signal splitting
  • Optical experimental platforms
  • Customized fiber-optic module integration

1060nm FBT Coupler Module Hi1060 Fiber Cascaded 5 95 and 50 50 Optical Coupler Module FC APC ABS Box for Fiber Laser System
