Custom 2x2 5/95 Fused Biconical Taper Coupler Corning 1060 Fiber for Optical Power Splitting，Passive Optical Communication Components
Custom 2x2 5/95 Fused Biconical Taper Coupler Corning 1060 Fiber for Optical Power Splitting，Passive Optical Communication Components
Custom 2x2 5/95 Fused Biconical Taper Coupler Corning 1060 Fiber for Optical Power Splitting，Passive Optical Communication Components
Custom 2x2 5/95 Fused Biconical Taper Coupler Corning 1060 Fiber for Optical Power Splitting，Passive Optical Communication Components
Specifications
Splitting ratio :
95/5
Insertion loss :
<0.4dB (95% end), <15.2dB (5% end)
Fiber screening intensity :
200kpsi
Model Number :
953111108-2
Operating wavelength :
1060nm
Description
Custom 2x2 5/95 Fused Biconical Taper Coupler Corning 1060 Fiber for Optical Power Splitting,Passive Optical Communication Components
Product Overview

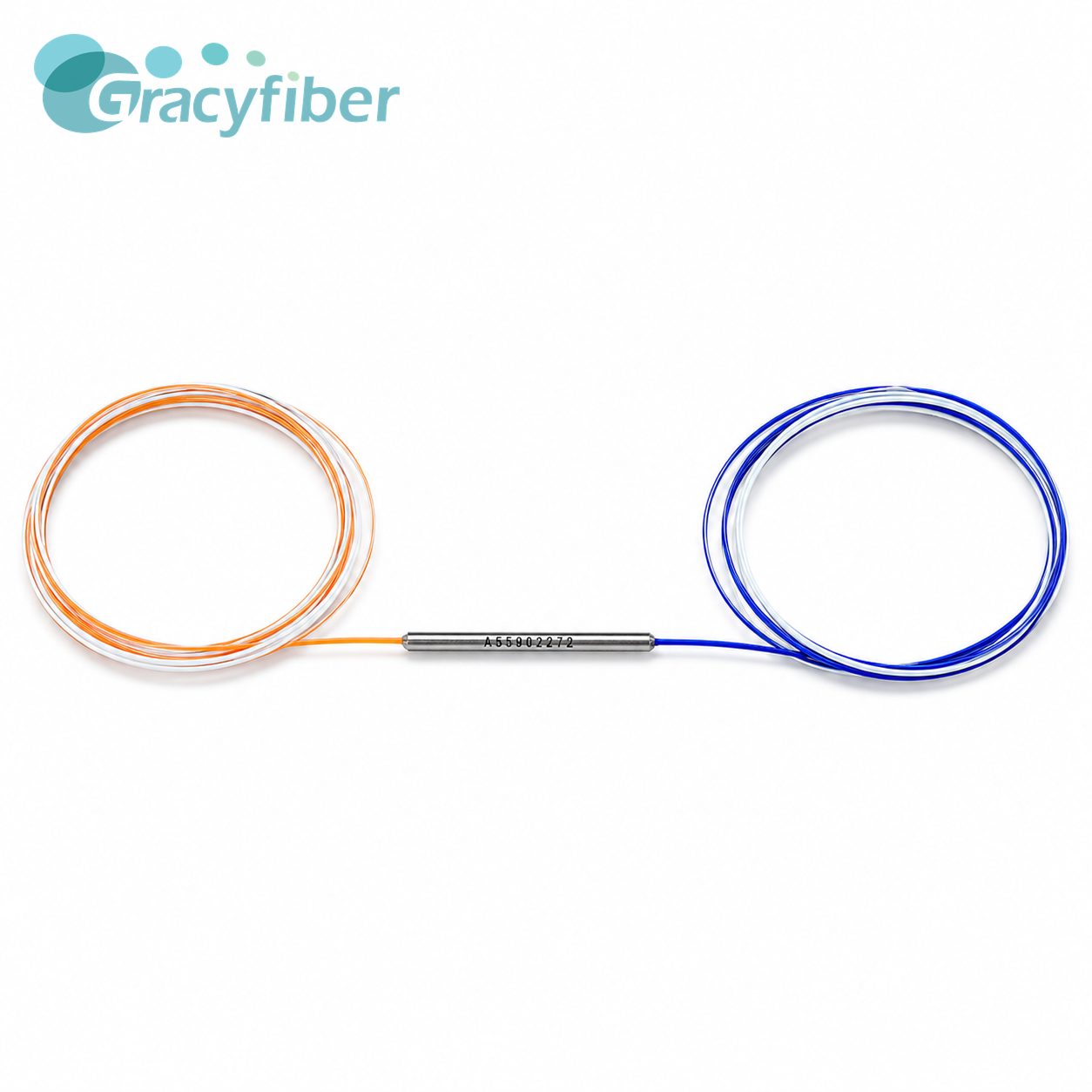

This 2×2 FBT tapered fiber coupler uses Corning 1060 fiber and enables 95/5 non-uniform optical power distribution.

Product Features
I1-O1 Coupling Ratio I1-O1 IL(dB) I1-O2 Coupling Ratio I1-O2 IL(dB) I2-O1 Coupling Ratio I2-O1 IL(dB) I2-O2 Coupling I2-O2 IL(dB)
96.15 0.28 3.85 14.26 96.34 0.36 3.66 14.56
96.12 0.29 3.88 14.23 96.40 0.31 3.60 14.59
96.45 0.32 3.55 14.66 96.24 0.28 3.76 14.36
96.43 0.28 3.57 14.59 96.40 0.32 3.60 14.60
96.28 0.35 3.72 14.48 96.31 0.28 3.69 14.45
96.17 0.28 3.83 14.28 96.17 0.36 3.83 14.36
96.12 0.34 3.88 14.28 96.30 0.29 3.70 14.44
96.39 0.28 3.61 14.54 96.20 0.29 3.80 14.32
96.12 0.30 3.88 14.24 96.31 0.32 3.69 14.49
96.12 0.30 3.88 14.24 96.41 0.29 3.59 14.58
96.49 0.28 3.51 14.67 96.30 0.28 3.70 14.43
96.45 0.30 3.55 14.64 96.26 0.31 3.74 14.42
96.28 0.28 3.72 14.41 96.29 0.39 3.71 14.53
96.43 0.35 3.57 14.67 96.26 0.34 3.74 14.44
96.27 0.37 3.73 14.49 96.34 0.27 3.66 14.47
  • 2×2 FBT tapered fiber coupler structure
  • Suitable for operating wavelengths around 1060nm
  • Nominal splitting ratio: 95/5
  • Splitting ratio tolerance: 95%±1.5% and 5%±1.5%
  • Utilizes Corning fiber 1060 Fiber Optic
  • Fiber screening intensity: 200kpsi
  • 95% main end insertion loss: <0.4dB
  • 5% splitter end insertion loss: <15.2dB
  • Polarization dependent loss (PDL): <0.2dB
  • Test data shows a splitting ratio of approximately 96.10%–96.49% at the 95% end and approximately 3.51%–3.90% at the 5% end.

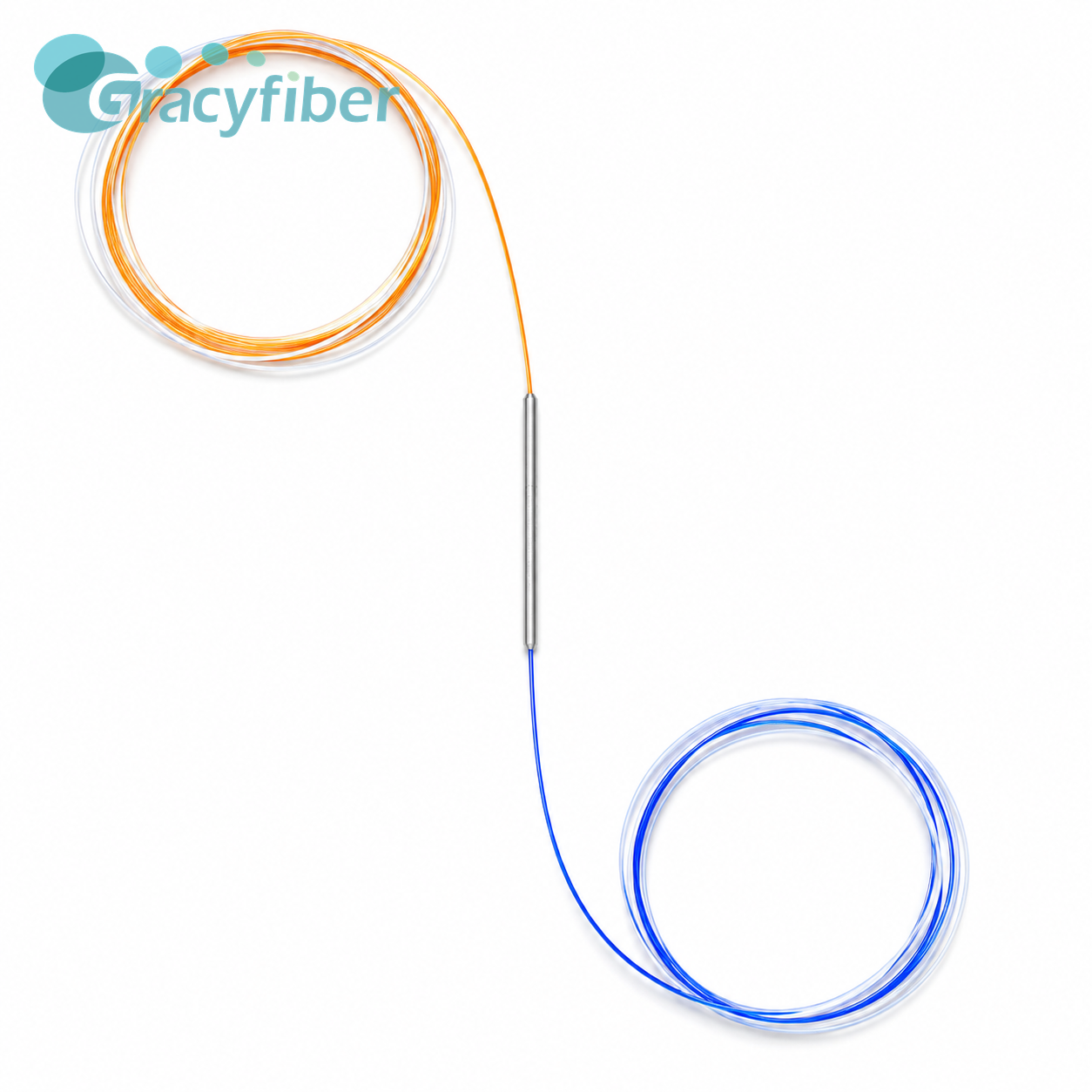

  • Custom Φ3×50mm packaging
  • Configured with 0.9mm colored fiber optic tubing
  • Tubing length: 1.0–1.05m, controlled according to specified maximum tolerances
  • Input ports are distinguished by white and blue tubing
  • Output side: 95% end with white tubing, 5% end with orange tubing
  • 95% white output end with FC/APC connector
  • Connector configuration for other ports needs to be confirmed according to the final drawings
  • Single blister pack packaging
Applications:
  • 1060nm fiber laser systems
  • 1064nm laser power distribution
  • Separation of main optical path and sampling optical path
  • Online optical power monitoring
  • Fiber optic sensing and measurement systems
  • Laser and amplifier testing
  • Optical instruments and scientific research equipment
  • Customized fiber optic path integration
