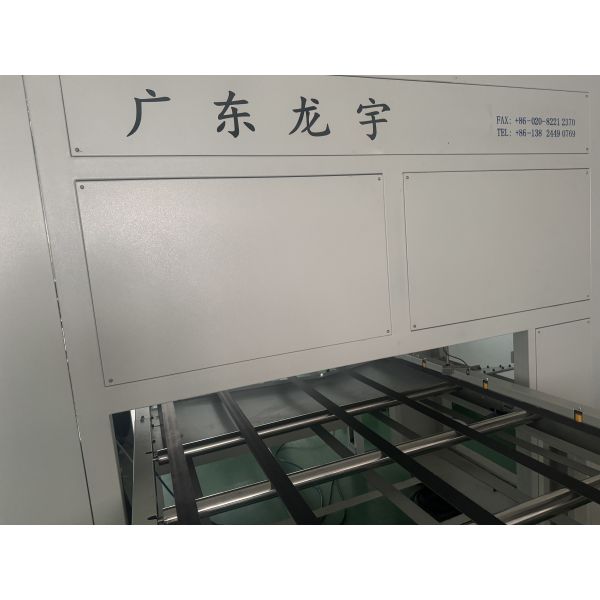

One Component Glue Spraying Machine For Marine Board Lamination
One Component Glue Spraying Machine For Marine Board Lamination
Specifications
Brand Name :
LONGYU
MOQ :
1Set
Price :
USD：20000.00-35000.00
Payment Terms :
T/T
Supply Ability :
6Sets/month
Delivery Time :
30-60 days
Packaging Details :
Standard wooden case
Application Industry :
Door, Automotive, Building Materials，Marine Board
Max Coating Width :
1300 mm
Coating Accuracy :
±5%
Control System :
Automatic Width Recognition
Max Line Speed :
15 m/min
Core Feature :
High-Speed Precision Coating
Glue Type :
One-component polyurethane adhesive
HIM :
7-inch interface screen
Description

Single-Component Glue Spraying Machine

Specifications:

Technical Parameter

Specification

Model Number

LY-01-1300

Work Coating Amount

500 - 4000 g/min

Adhesive Flow Accuracy

≤ ±5%

Glue Nozzle Hole Interval

17mm

Coating Width Range

100 - 1300 mm (Auto-recognition)

Max. Production Line Speed

15 m/min

Glue Application (Unit Area)

100 - 400 g/m² (Total ≤ 4000 g/min)

Adhesive Viscosity Range

Up to 25,000 mPa.s

Adhesive Type

Single-Component

Equipment Length (Standard)

6 m (Customizable)

Air Supply

0.6 - 0.8 MPa

Power Supply

380V, 50Hz, 3-Phase (Optional)

Max. Power

7 KW

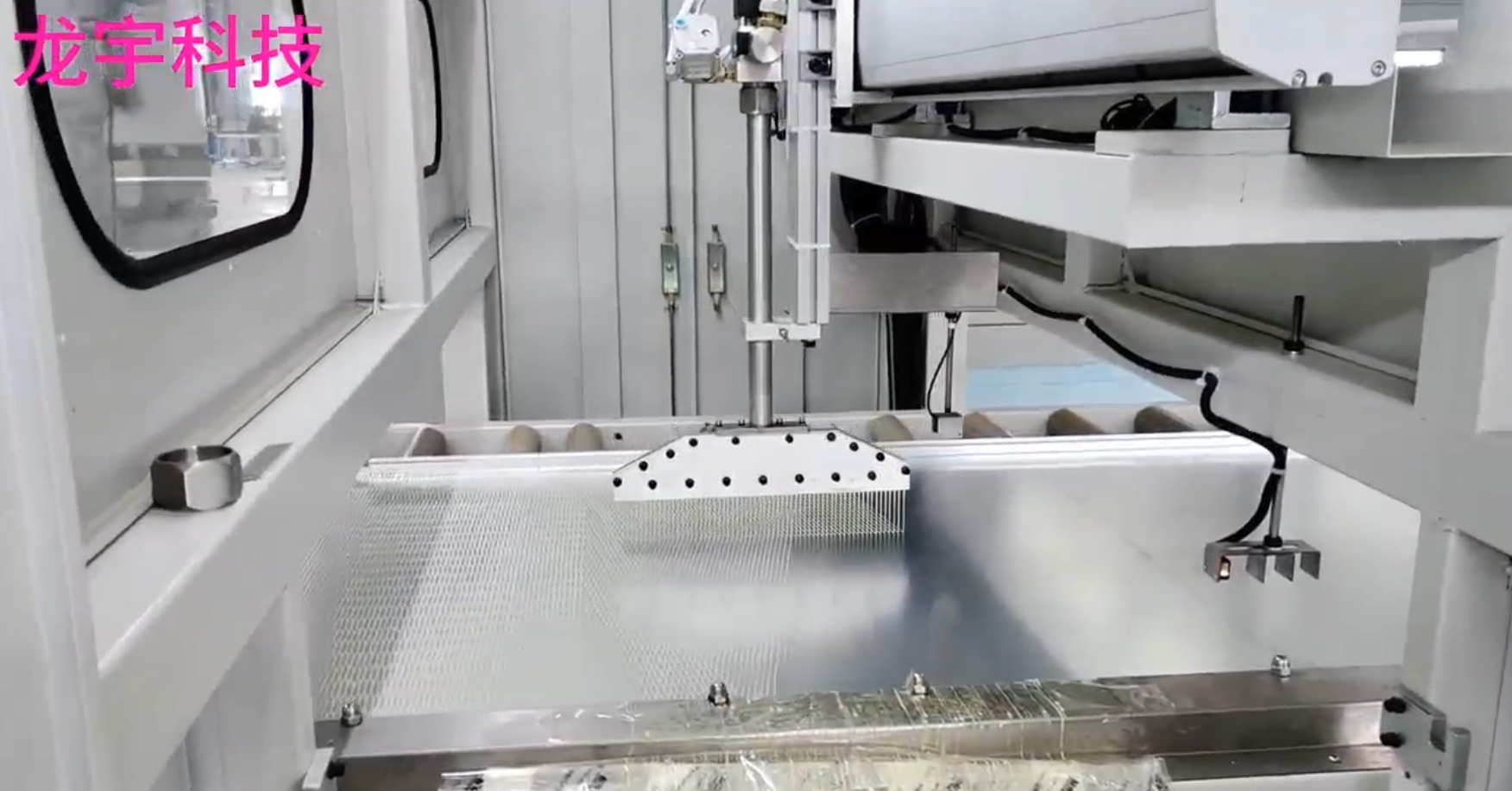

One Component Glue Spraying Machine For Marine Board Lamination

Quick Detail:

1. High-Speed Coating: Work coating amount from 500 to 4000 g/min.

2. Precision Control: Adhesive flow accuracy within ±5%.

3. Wide Adaptability: Coating width range 100-1300mm, automatically adjustable.

4. High Efficiency: Compatible with production line speeds up to 15m/min.

5. Simplified Process: Designed for single-component adhesives (viscosity below 25,000 mPa.s).

6. Robust Design: Standard length 6m (customizable), power up to 7KW.

Notices:

1. Ensure the air supply is stable and meets the required pressure (0.6-0.8 MPa) before operation.

2. Use only single-component adhesives within the specified viscosity range (≤ 25,000 mPa.s) for optimal performance.

3. Regular maintenance of the glue nozzle is recommended to prevent clogging.

One Component Glue Spraying Machine For Marine Board Lamination

Applications:
Primarily used for the automated glue application process in manufacturing:

1. Door and Door Panels

2. Automotive Interior Panels and Trim

3. Building Insulation Wall Panels

4. Other large-format panel laminating industries.

One Component Glue Spraying Machine For Marine Board Lamination
