Two Component Automatic Glue Spraying Machine Cantilever Type
Two Component Automatic Glue Spraying Machine Cantilever Type
Specifications
Brand Name :
LONGYU
MOQ :
1Set
Price :
USD:30000.00-50000.00
Payment Terms :
T/T
Supply Ability :
1Set/month
Delivery Time :
30-60 days
Packaging Details :
Standard wooden case
Machine Structure :
Cantilever Type
Target Industry :
Transportation (RV, Truck)
Panel Size Category :
Extra-Large / Oversized
Typical Bonding :
Structural Panel Lamination
Warranty :
1 Year,12 Months,One year since the date B/L
Color :
customized, Blue, Company Standar
Application :
compression spring coiling,Wires,spring making machine,Spring coiling machine
Function :
Forming,Spring Coil Making Machine,Spring coiling machine
Description

Two Component Cantilever Glue Machine

Specifications:

Technical Parameter

Specification

Model Number

LY-05-1300

Work Coating Amount

500 - 4000 g/min

Adhesive Flow Accuracy

≤ ±5%

Glue Nozzle Hole Interval

8mm

Coating Width Range

1000 - 3000 mm (Optional)

Max. Production Line Speed

6 m/min

Glue Application (Unit Area)

200 - 500 g/m² (Total ≤ 4000 g/min)

Adhesive Viscosity Range

Up to 25,000 mPa.s

Adhesive Type

Two-Component

Applicable Board Specs (W x L x T)

1-3 M (W) x 1-17 M (L) x 2-120 MM (T)

Air Supply

0.6 - 0.8 MPa

Power Supply

380V, 50Hz, 3-Phase (Optional)

Max. Power

10 KW

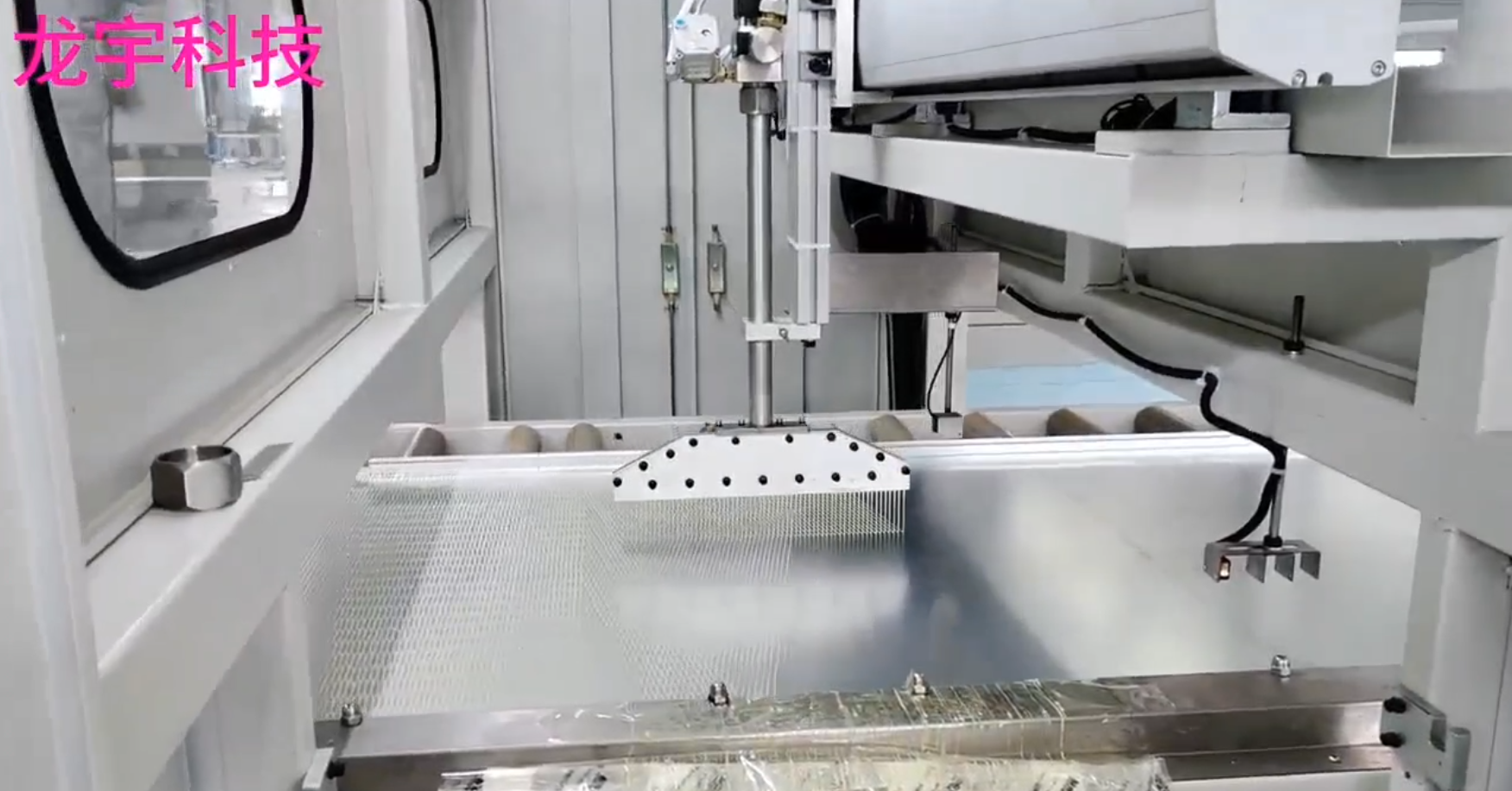

Two Component Automatic Glue Spraying Machine Cantilever Type

Notices:

1. The cantilever design requires sufficient overhead clearance and a stable foundation.

2. Due to the large panel size, ensure your factory layout accommodates the length of up to 17 meters for panel handling.

3. Regular inspection of the cantilever rail and movement mechanism is recommended for long-term precision.

Two Component Automatic Glue Spraying Machine Cantilever TypeTwo Component Automatic Glue Spraying Machine Cantilever Type

Applications:
Specifically built for the lamination of extra-large, reinforced panels in the transportation and specialty vehicle sectors:

1. RV (Recreational Vehicle) Cabin Panels and Sidewalls

2. Refrigerated Truck and Trailer Body Panels

3. Large-format Industrial and Architectural Composite Panels

Two Component Automatic Glue Spraying Machine Cantilever Type

Two Component Automatic Glue Spraying Machine Cantilever Type
