Two Component Curtain Coating Equipment For Honeycomb Panels
Two Component Curtain Coating Equipment For Honeycomb Panels
Specifications
Brand Name :
LONGYU
Model Number :
LY-02-1300
MOQ :
1SET
Price :
USD:20000.00-40000.00
Payment Terms :
T/T
Supply Ability :
1000Sets/Years
Delivery Time :
30-60 days
Packaging Details :
Standard wooden case
Process Type :
Curtain Coating / Lamination
Adhesive System :
Two-Component (2K)
Primary Use :
Honeycomb & SPC Panel Bonding
Mixing Accuracy :
High Precision
Control Feature :
Auto Width Recognition (Optional)

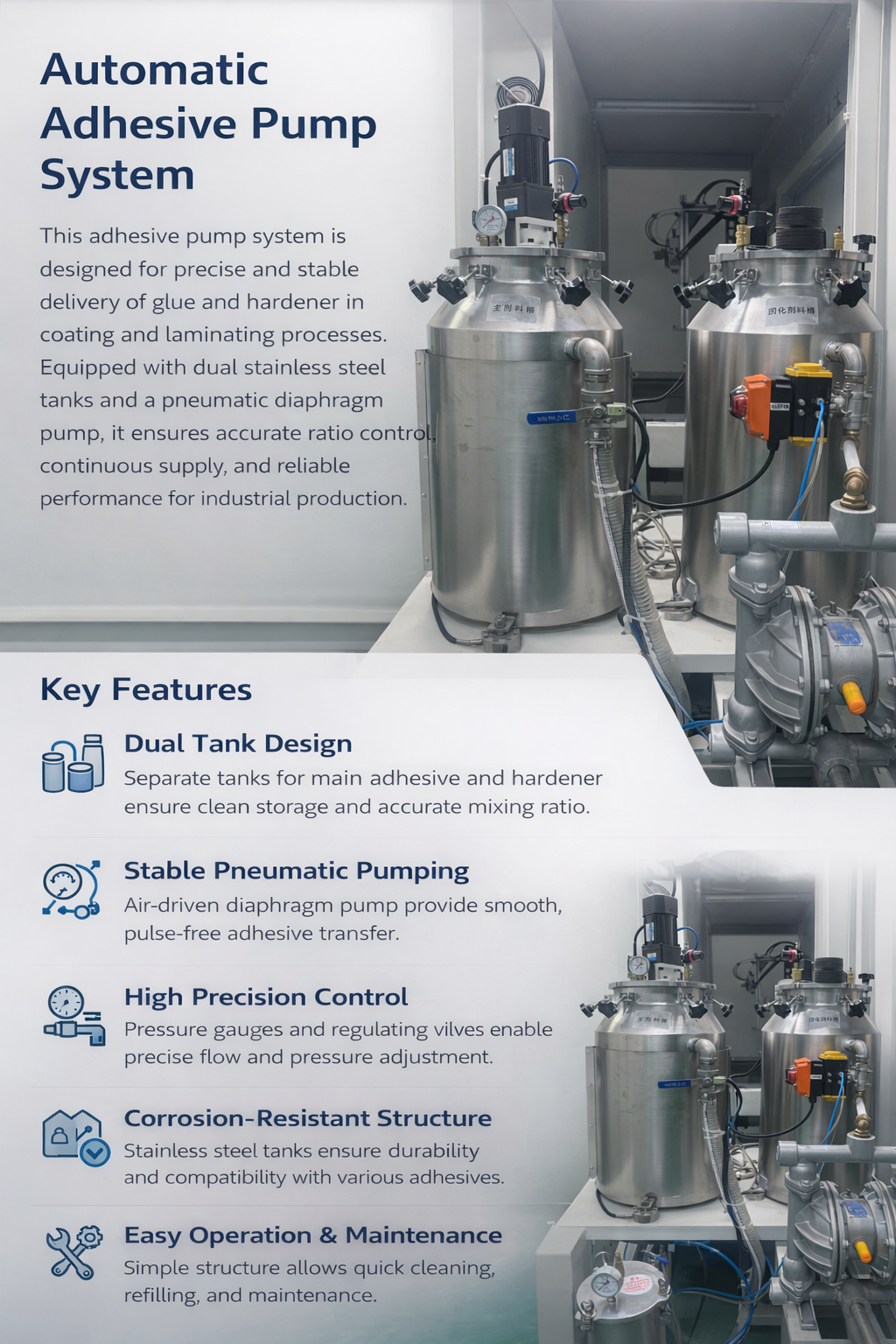

Glue Storage Tanks :
Dual Stainless Tanks
Warranty :
1 Year
Color :
customized, Blue, Company Standard
Type :
Fully Automatic, CNC
Description

Two-Component Curtain Coating Equipment

Specifications:

Technical Parameter

Specification

Model Number

LY-02-1300

Work Coating Amount

500 - 4000 g/min

Adhesive Flow Accuracy

≤ ±5%

Glue Nozzle Hole Interval

8mm

Coating Width Range

100 - 1300 mm (Auto-recognition Optional)

Max. Production Line Speed

15 m/min

Glue Application (Unit Area)

120 - 400 g/m² (Total ≤ 4000 g/min)

Adhesive Viscosity Range

Up to 25,000 mPa.s

Adhesive Type

Two-Component

Equipment Length (Standard)

10 m (Customizable)

Air Supply

0.6 - 0.8 MPa

Power Supply

380V, 50Hz, 3-Phase (Optional)

Max. Power

10 KW

Two Component Curtain Coating Equipment For Honeycomb Panels

Description:
The LY-02-1300 Automatic Two-Component Curtain Coating Equipment is a professional solution for high-strength panel lamination. It expertly meters, mixes, and applies two-component adhesives in a uniform curtain, perfectly suited for bonding honeycomb cores, SPC composites, and other industrial panels. The system ensures consistent mix ratio and glue application, resulting in superior bond strength and product durability. With its optional automatic width recognition and high-capacity design, it seamlessly integrates into automated lines, significantly boosting productivity and quality in composite panel manufacturing.

Two Component Curtain Coating Equipment For Honeycomb Panels

Quick Detail:

1. Dual-Component System: Designed for precision metering and mixing of two-component adhesives.

2. High-Speed Curtain Coating: Work coating capacity from 500 to 4000 g/min.

3. Excellent Accuracy: Adhesive flow accuracy within ±5%.

4. Wide & Adaptive: Coating width range 100-1300mm (optional auto-width recognition).

5. For Rigid Panels: Ideal for honeycomb, SPC composite, door, and automotive panels.

6. Powerful & Customizable: Standard length 10m (customizable), robust 10KW power system.

Applications:
Ideal for the lamination process in the production of:

1. Honeycomb Panels (e.g, for doors, partitions)

2. SPC (Stone Plastic Composite) Panels

3. Door and Automotive Interior Panels

4. Building Insulation Wall Panels

5. Other composite panel structures requiring high-strength bonds.
