CNC Automatic Glue Spraying Machine 15KW For Medical Furniture Panels
CNC Automatic Glue Spraying Machine 15KW For Medical Furniture Panels
Specifications
Brand Name :
LONGYU
Model Number :
LY-04-1300
MOQ :
1Set
Price :
USD:30000.00-50000.00
Payment Terms :
T/T
Supply Ability :
1Set/month
Delivery Time :
30-60 days
Packaging Details :
Standard wooden case
Key Industry :
Medical Furniture & Bathroom
Operation Mode :
Fully Automatic, Programmable
Main Benefit :
Precision for Complex Shapes
Warranty :
1 Year,12 Months,One year since the date B/L
Function :
Forming, Spring Coil Making Machine, Spring coiling machine
Power :
160kw, Three phase 380V.AC. 50HZ, 25.5kw, 20kw, 220V 3P 50/60Hz
Type :
Fully Automatic,CNC
Usage :
Automatic Control Operation, compression spring machine
Description

Fully Automatic CNC Gluing Machine

Specifications:

Technical Parameter

Specification

Model Number

LY-04-1300

Work Coating Amount

500 - 4000 g/min

Adhesive Flow Accuracy

≤ ±5%

Glue Nozzle Hole Interval

8mm

Coating Width Range

100 - 1300 mm (Optional)

Max. Production Line Speed

8 m/min

Board Inspection Range (W x L)

0.2 - 1.3 M (Wide) x 1.0 - 2.5 M (Length)

Glue Application (Unit Area)

120 - 400 g/m² (Total ≤ 4000 g/min)

Adhesive Viscosity Range

Up to 25,000 mPa.s

Adhesive Type

Two-Component

Air Supply

0.6 - 0.8 MPa

Power Supply

380V, 50Hz, 3-Phase (Optional)

Max. Power

15 KW

CNC Automatic Glue Spraying Machine 15KW For Medical Furniture Panels

Description:

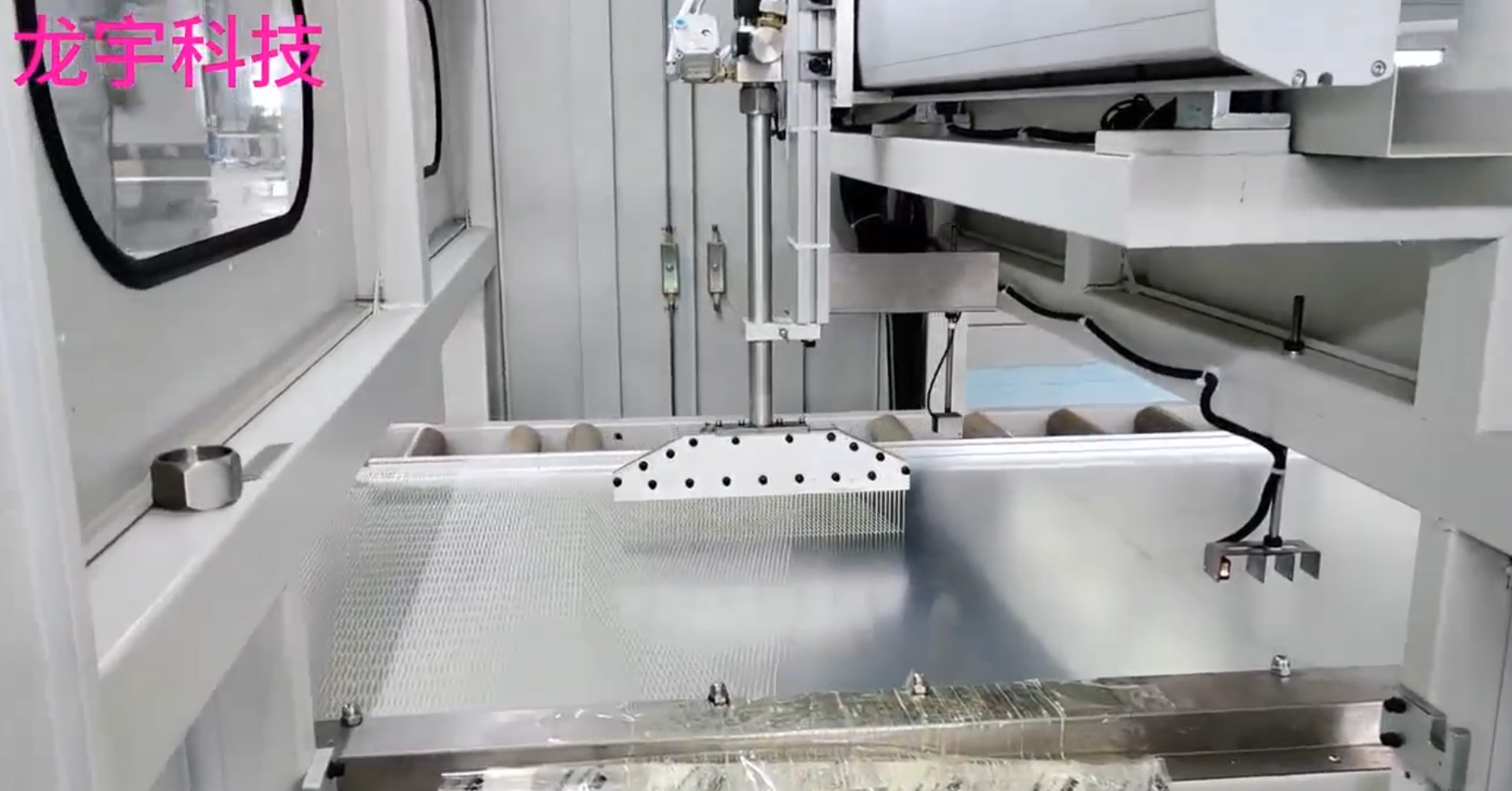

The LY-04-1300 Fully Automatic CNC Gluing Machine revolutionizes adhesive application for non-standard, irregular-shaped panels. It integrates advanced infrared scanning technology to first map the exact dimensions and contours of each workpiece. This data then guides the computer numerical control (CNC) system to execute precise, programmable glue paths automatically. Designed specifically for complex items like medical doors and bathroom cabinets, it eliminates the inaccuracy and waste of manual operation. This machine ensures consistent, repeatable glue application on every unique piece, significantly enhancing quality and productivity in customized panel manufacturing.

CNC Automatic Glue Spraying Machine 15KW For Medical Furniture Panels

CNC Automatic Glue Spraying Machine 15KW For Medical Furniture Panels

CNC Automatic Glue Spraying Machine 15KW For Medical Furniture Panels

Notices:

1. Ensure the infrared detection system is kept clean and calibrated for accurate board profiling.

2. Programming the CNC path is required for new panel shapes, which unlocks the machine’s flexibility.

3. Use compatible two-component adhesives to leverage the full potential of this precision dispensing system.

CNC Automatic Glue Spraying Machine 15KW For Medical Furniture Panels

Applications:
Perfect for automated glue application on custom-shaped and irregular panels, such as:

1. Medical Doors and Cabinets

2. Bathroom Vanities and Baseboards

3. Specialty Furniture Components

4. Other custom woodworking or composite panels requiring contour following.
