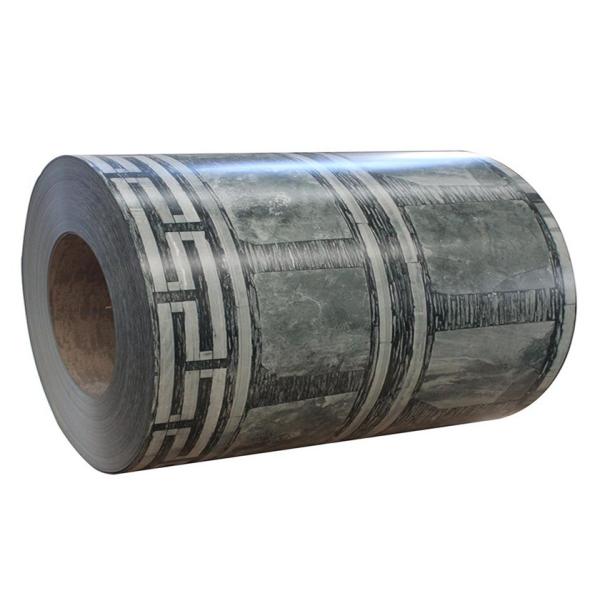

DX51D 24 Gauge Prepainted Galvanized Steel Coil G30 RAL Color for Roofing and Wall Cladding

１．Product Overview

DX51D 24 Gauge Prepainted Galvanized Steel Coil is a color-coated steel product widely used in roofing systems, wall cladding panels, steel structures, and industrial fabrication. Produced from galvanized steel substrate and finished with an organic coating system, it combines corrosion protection with decorative appearance and forming performance.

The product is available in a wide range of RAL colors and is suitable for both architectural and manufacturing applications requiring consistent surface quality.

２．Technical Solution

The galvanized substrate is protected by a zinc coating ranging from 30g/m² to 275g/m². The steel surface is continuously coated and cured to provide adhesion, weather resistance, and color consistency.

DX51D and SGCC grades offer good formability for roll forming, bending, profiling, and sheet fabrication processes. The regular spangle finish provides a traditional galvanized appearance beneath the coating system.

３．Specifications

４．Application

• Roofing sheets
• Wall cladding panels
• Steel structure buildings
• Industrial workshops
• Warehouses
• Agricultural buildings
• Home appliance panels
• Furniture manufacturing
• Electrical equipment enclosures
• General fabrication projects

５．Processing

• Roll forming
• Roof panel manufacturing
• Wall panel production
• Cut-to-length processing
• Slitting
• Bending
• Stamping
• Profile forming

６．Advantages

• DX51D substrate provides excellent forming performance.
• Wide zinc coating range supports different corrosion protection requirements.
• Available in multiple RAL colors for architectural flexibility.
• Suitable for roofing and wall cladding applications.
• Regular spangle substrate is widely accepted in construction markets.
• Compatible with standard roll-forming and fabrication equipment.
• Prepainted surface reduces additional painting operations.

７．How to Choose

• Select zinc coating level according to environmental exposure conditions.
• Choose thickness according to structural and span requirements.
• Confirm color selection based on project specifications.
• Use DX51D when forming and bending performance are important.
• Verify coil width compatibility with production equipment.

８．FAQ

Q1．What gauge is this product?

This product is commonly supplied in 24 Gauge equivalent specifications within the 0.12-1.2mm thickness range.

Q2．What steel grades are available?

The product is available in SGCC and DX51D grades.

Q3．What zinc coating range is offered?

The zinc coating range is 30-275g/m².

Q4．What applications is this coil suitable for?

It is widely used for roofing sheets, wall cladding, steel structures, and industrial fabrication.

Q5．Can custom RAL colors be supplied?

Yes, the product can be supplied according to the RAL Color System and customer color requirements.
