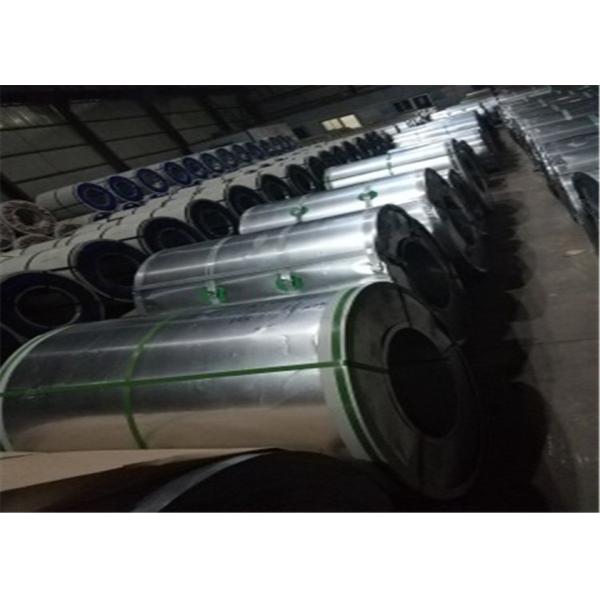

DX51D PVDF PPGI PPGL Steel Coil with 0.55mm Thickness and Z40 Coating for Roofing and Building Panels

１．Product Overview

DX51D PVDF PPGI PPGL Steel Coil is a pre-painted color coated steel coil used for roofing sheets, wall panels, steel structure workshops, warehouses, vehicle components, furniture panels, and electric industry applications.

The product uses galvanized steel coil or galvalume steel coil as the base material. With 0.55mm thickness, 1000mm width, Z40 zinc coating, and PVDF coating system, it supports outdoor building applications that require corrosion resistance, color stability, and forming performance.

２．Technical Solution

The base material is galvanized steel coil or galvalume steel coil. The metallic coating range can be Z40–Z275 or AZ40–AZ150 depending on the substrate and corrosion protection requirement.

The specified top surface uses 15μm polyester coating with 5μm primer, while the back surface uses 8μm coating with 5μm primer. This coating structure improves paint adhesion, surface protection, and reverse-side durability during forming, handling, and installation.

PVDF coating is suitable for applications requiring improved UV resistance, weatherability, and long-term exterior performance.

３．Specifications

４．Application

• Roofing sheets for steel structure workshops
• Warehouse roofing panels
• Wall cladding systems
• Airport building panels
• Shipbuilding components
• Vehicle manufacturing parts
• Furniture panels
• Electric industry panels
• Industrial building components
• Decorative color coated sheets

５．Processing

• Roll forming
• Roofing sheet production
• Wall panel fabrication
• Cut-to-length processing
• Slitting
• Bending
• Profiling
• Decorative panel forming

６．Advantages

• DX51D grade supports common forming and building panel applications.
• PVDF coating improves UV resistance, weatherability, and outdoor color stability.
• Z40 coating provides basic corrosion protection for selected applications.
• 0.55mm thickness supports roofing and wall panel fabrication.
• 1000mm width is suitable for common roll forming lines.
• 508mm and 610mm coil IDs fit standard decoiling equipment.
• Multiple color options support architectural and industrial design needs.

７．How to Choose

• Choose PVDF coating for outdoor roofing and wall cladding applications requiring better weather resistance.
• Select Z coating or AZ coating according to substrate type and corrosion exposure conditions.
• Confirm 0.55mm thickness suitability based on roofing profile design and panel strength requirements.
• Confirm 1000mm width compatibility with roll forming equipment.

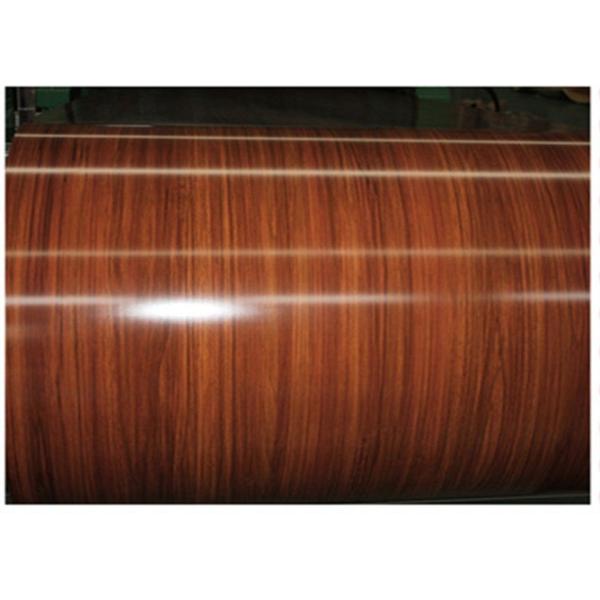

• Select RAL color, wooden color, military color, or custom color according to project design.

８．FAQ

Q1．What base materials are available?

Galvanized steel coil and galvalume steel coil are available.

Q2．What is the specified thickness and width?

The specified thickness is 0.55mm and the specified width is 1000mm.

Q3．What is the metallic coating range?

The available metallic coating range is Z40–Z275 or AZ40–AZ150.

Q4．What paint type is used?

The specified paint type is PVDF.

Q5．What applications are suitable for this product?

It is suitable for roofing sheets, wall panels, steel structure workshops, warehouses, vehicle components, furniture panels, and electric industry applications.
