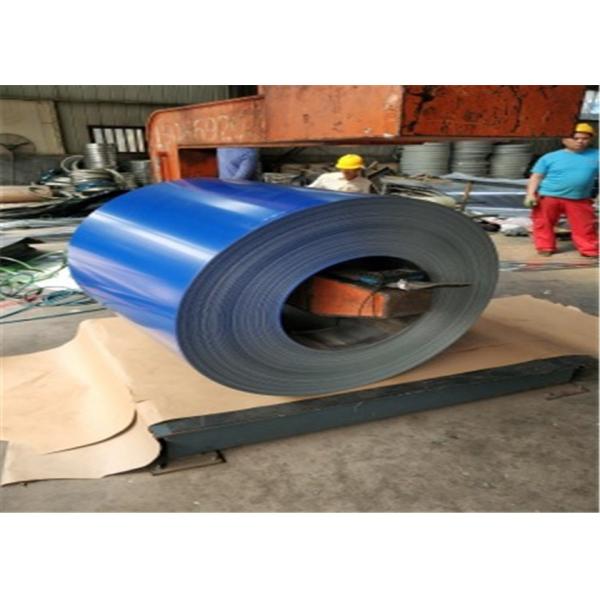

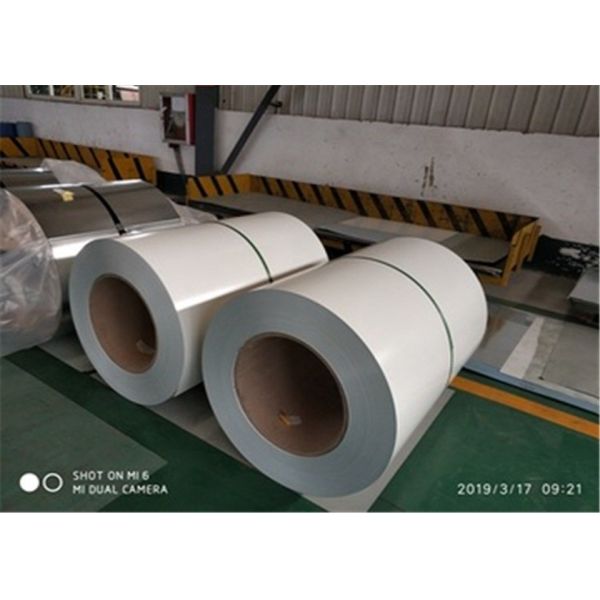

PVDF Color Coated Steel Coil with Z90 Zinc Coating for Building Roofing and Wall Cladding Applications

１．Product Overview

PVDF Color Coated Steel Coil is a pre-painted steel product manufactured according to JIS G3312 standards for building and architectural applications. The product combines a zinc-coated steel substrate with a durable organic coating system to provide corrosion resistance, weatherability, and decorative appearance.

With a 900mm width, 0.35mm thickness, and Z90 zinc coating, the coil is suitable for roofing systems, wall cladding panels, and light-gauge building components where long-term outdoor performance is required.

２．Technical Solution

The steel substrate is protected by a Z90 zinc coating equivalent to 100g/m², providing corrosion resistance for exterior applications.

The coating system consists of a 15–20μm top coating with an additional 5μm primer layer, while the reverse side uses a 5–7μm coating with a 5μm primer. This structure improves adhesion, weather resistance, and coating durability.

RAL color options allow the product to meet architectural design requirements while maintaining color consistency throughout production batches.

３．Specifications

４．Application

• Building roofing panels
• Wall cladding systems
• Steel structure workshops
• Warehouses
• Airport buildings
• Commercial buildings
• Industrial buildings
• Decorative exterior panels
• Architectural façade systems
• Light construction components

５．Processing

• Roll forming
• Roof panel manufacturing
• Wall panel fabrication
• Cut-to-length processing
• Slitting
• Bending
• Profiling
• Construction component production

６．Advantages

• Z90 zinc coating provides corrosion protection for outdoor applications.
• Multi-layer coating structure improves durability and weather resistance.
• RAL color system supports architectural color consistency.
• 0.35mm thickness offers a balance between weight and formability.
• Suitable for roofing and wall cladding systems.
• JIS G3312 grade supports stable processing performance.
• Pre-painted finish reduces post-painting costs and processing time.

７．How to Choose

• Select coating systems according to project exposure conditions and service life requirements.
• Confirm thickness and width according to roofing or wall panel profile designs.
• Choose RAL colors according to building design specifications.
• For coastal or high-corrosion environments, verify zinc coating requirements before ordering.
• Confirm forming equipment compatibility with the specified coil dimensions.

８．FAQ

Q1．What standard does this product comply with?

The product is supplied according to JIS G3312.

Q2．What is the zinc coating level?

The zinc coating is Z90, equivalent to approximately 100g/m².

Q3．What is the coil thickness?

The specified thickness is 0.35mm.

Q4．What applications is this product suitable for?

It is suitable for roofing panels, wall cladding, façade systems, warehouses, workshops, and commercial buildings.

Q5．What color options are available?

Colors can be supplied according to the RAL Color System.
