Specifications
Origin :
Guangdong, China
Model Number :
GN-MR-400H
Roller Width :
400mm (Effective Roller Width: 395mm)
Certification :
CE
Power / Power Supply :
2200W / AC220V/50Hz, 110V/60Hz (Customizable)
Packaging Details :
Wooden case
Roller Gap :
0~1.5 mm (Adjustable)
Roller Drive :
Motor-driven (Suitable for argon gas environment / glove box)
MOQ :
1
Delivery Time :
45-60 days
Heating Temperature :
Max 130℃ (Recommended: 60℃-80℃)
Net / Gross Weight :
Approx. 150kg / 180kg
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Roller Size :
196mm
Place of Origin :
China
Trademark :
Gelon
Brand Name :
Gelon
Gap Adjustment Precision :
0.02mm
Price :
5880-6000 USD
Rolling Speed :
Adjustable (Supports Forward & Reverse)
Equipment Dimensions :
approx L1100*W280* H420mm
Supply Ability :
500 sets/month
Description

High-Precision Heated Electric Calendering Machine for Battery R&D

Contact for Details

Email: Nirvana@libgroup.net

WhatsApp / Mobile / WeChat: +86-18774688262

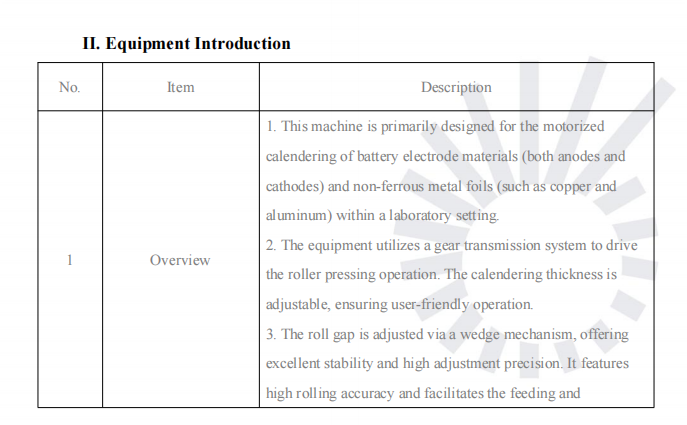

Products Description

The GELON GN-MR-400H is specifically engineered for laboratory battery research. Featuring a 400mm roller width, max 130°C independent heating, and 0.02mm gap adjustment precision, it delivers exceptional stability for pressing battery electrodes and non-ferrous metal foils. Its compact, motor-driven design is fully compatible with glove box and argon gas environments.

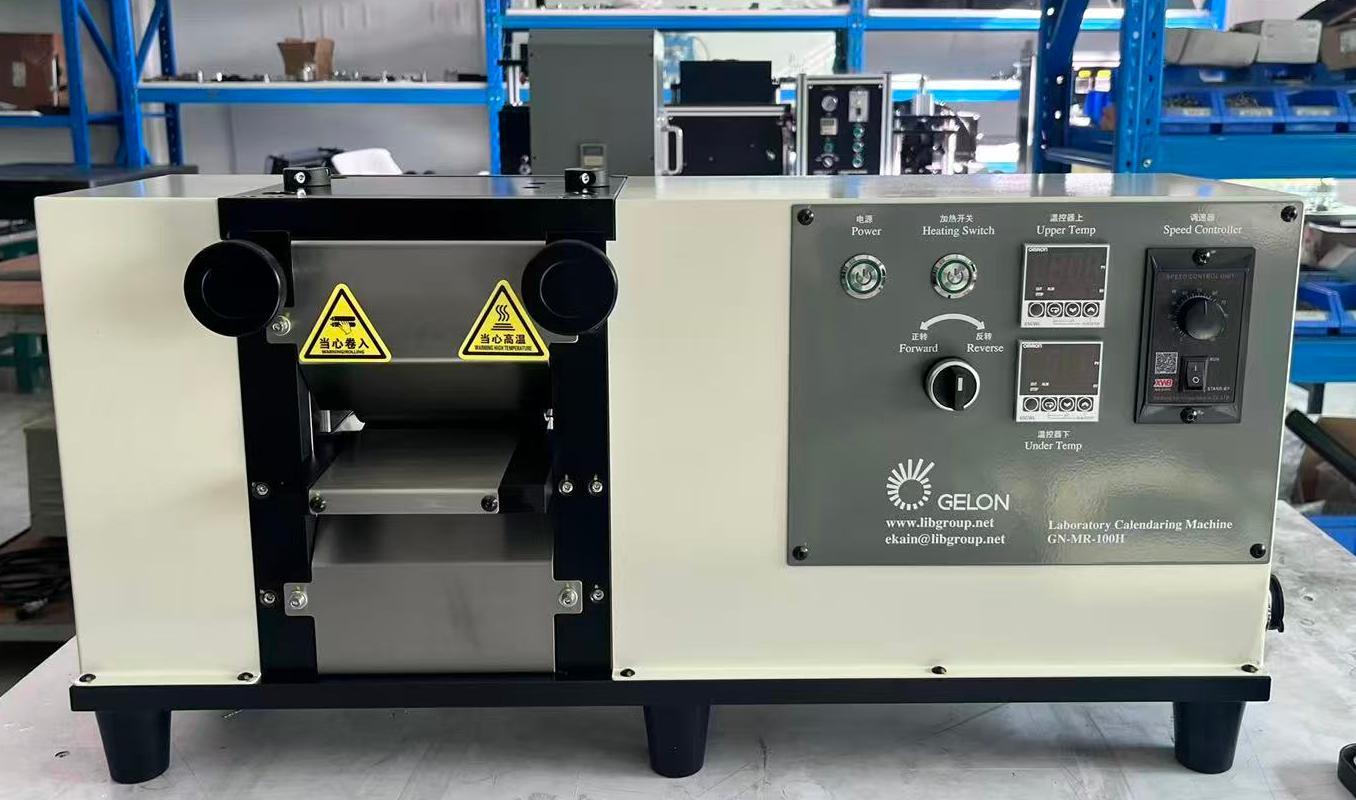

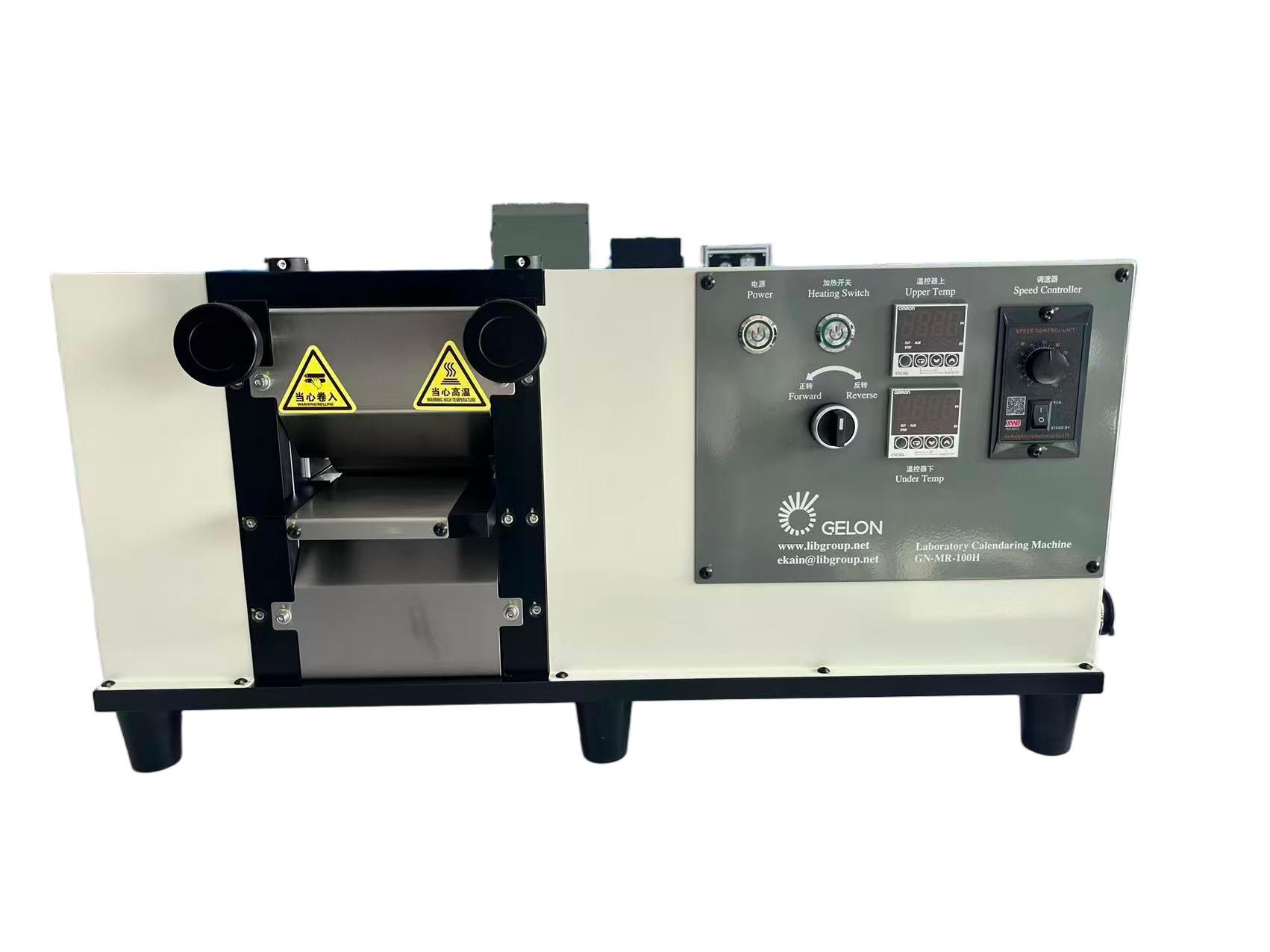

Gelon Lab Calendering Machine Series (Real Shots)

400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D

400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D

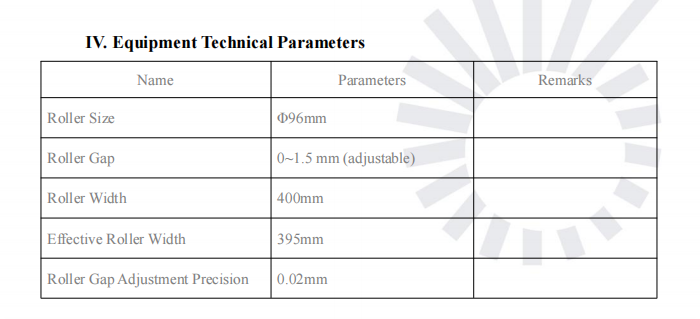

I. Technical Parameters
400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D
400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D
400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D 400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D 400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D 400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D 400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D 400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D 400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D 400mm Width Heated Electric Calendering Machine Roll Press with 0.02mm Gap Adjustment Precision for Lab Battery Electrode R&D
