Specifications
Thickness :
16, 18, 20, 25, 30 Micron, etc
Porosity :
38%-44%
Tensile Strength :
More Than 90 MPa
Width :
Customerization
Technology :
From Japan, Made in China
Brand Name :
Gelon
Model Number :
GN-PP
Certification :
CE
Place of Origin :
China
MOQ :
50 sqm
Price :
USD 50-150/Roll
Supply Ability :
10000 SQM Per Month
Delivery Time :
4-6 week
Packaging Details :
Standard Packing
MOQ :
50sqm
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Description
PE/PP Separator Ceramic Coated Battery Separator Lithium Battery Materials
PE/PP Separator Ceramic Coated Separator 2325 Separator Lithium Battery Materials Lithium battery materials—Celgard separator—Li-ion battery separator/membrane
Product Specifications
  • Thickness: 16, 18, 20, 25, 30, 40 micron
  • Width: 60mm
  • MOQ: 50Sqm
Detailed Specifications (16 micron thickness)
Parameter Unit Value
Appearance - Ivory-white
Thickness micron 16± 2
Gas permeability Sec/100ml 350-550
Porosity % 38-44
Puncturing Strength g >300
Tensile strength MD Mpa >90
Tensile strength TD Mpa >100
Film close temperature degree ≤ 135
Film break temperature degree ≥ 147
90 degree heat shrink MD % ≤ 3.5
90 degree heat shrink TD % ≤ 2
105 degree heat shrink MD % ≤ 5
105 degree heat shrink TD % ≤ 3
120 degree heat shrink MD % ≤ 20
120 degree heat shrink TD % ≤ 15
Key Advantages
  • High Safety: Multilayer membrane efficiently reduces safety hazards (crystal point, holes) found as defects on single layer membrane; No TD shrinkage, low MD shrinkage; Perfect heat resistance and anti-oxidant; High puncture strength & mechanical strength, suitable for high/low voltage systems.
  • Good Uniformity: Using popular dry & uniaxial stretching process, ensures pore size uniformity and well-distributed membrane pores. Multilayer structure with better thickness uniformity improves Li-ion battery cycle life.
  • Excellent Air Permeability: High porosity, high air-permeability, low sinuosity, suitable for high rate discharging of electric vehicle Li-ion batteries.
  • Various Products: Basic separator, Ceramic coated separator, Polymer coated separator, Multifunctional hybrid coating separator, Multi-layer functional coated separator.

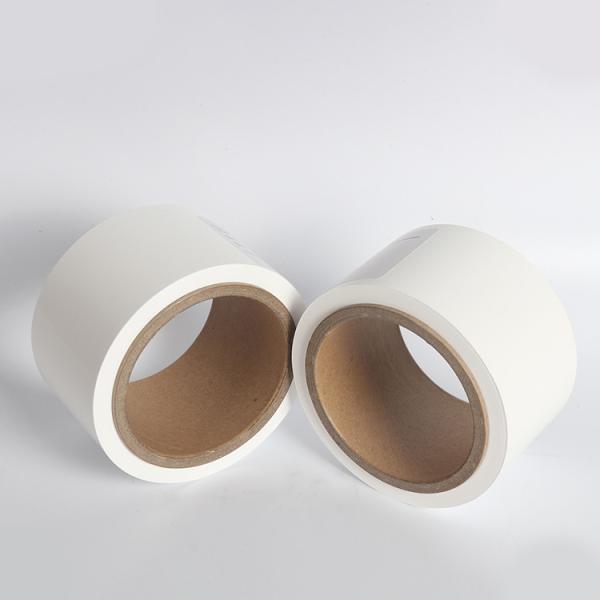

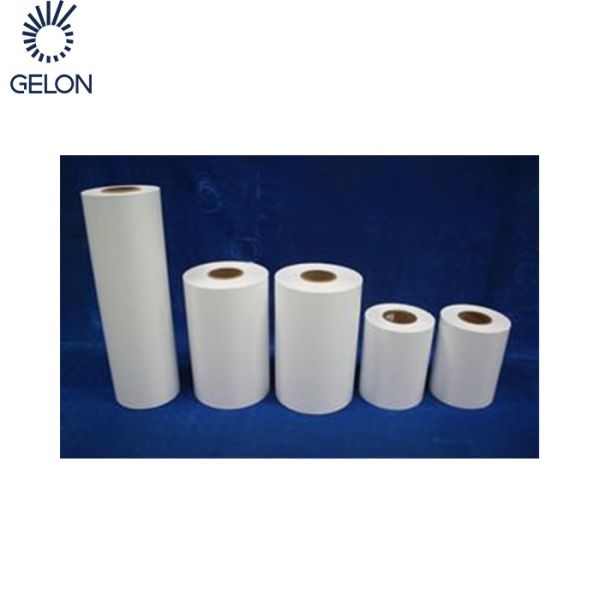

Product Images
Ceramic Coated PE/PP Separator with High Tensile Strength and Customizable Width for Lithium Batteries Ceramic Coated PE/PP Separator with High Tensile Strength and Customizable Width for Lithium Batteries Ceramic Coated PE/PP Separator with High Tensile Strength and Customizable Width for Lithium Batteries Ceramic Coated PE/PP Separator with High Tensile Strength and Customizable Width for Lithium Batteries Ceramic Coated PE/PP Separator with High Tensile Strength and Customizable Width for Lithium Batteries Ceramic Coated PE/PP Separator with High Tensile Strength and Customizable Width for Lithium Batteries Ceramic Coated PE/PP Separator with High Tensile Strength and Customizable Width for Lithium Batteries Ceramic Coated PE/PP Separator with High Tensile Strength and Customizable Width for Lithium Batteries
All specifications are for reference only. Contact us for detailed technical data sheets and custom requirements.
