Specifications
Brand Name :
Gelon
Model Number :
GN-VM-7P
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
2395 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500 pcs/month
Delivery Time :
25-35 days
Packaging Details :
Wooden case
Mixing Tank Volume :
50ml/150ml/250ml/300ml/500ml(only one of the specification is standard)
Tank Volume: 50ml :
Effective volume max.30ml
Tank Volume: 150ml :
Effective volume max.120ml
Tank Volume: 500ml :
Effective volume max.400ml
Mixing Time :
0-600min
Multi-segment Function :
Three segments speed can be set
Gas source :
0.5~0.8MPa Argon, Nitrogen gas (inside glove box), or 0.5~0.8MPa Compressed Air
Power Supply :
AC220V/50Hz，AC110V/60Hz
Power :
500W
Equipment Dimensions :
Approx. L350*W330*H590mm
Dimensions after Packaging :
Approx. L450*W440*H770mm
Net Weight :
Approx. 40kg
Gross Weight :
Approx. 57kg
Warranty Period :
1-year warranty, lifetime maintenance
Description

Lithium Battery Mixer Battery Mixing Machine for Slurry Mixing

High Viscosity Lithium Battery Slurry Mixer | Planetary Vacuum Mixer for Li-ion Electrode Slurry Production Stainless ChemicalsHigh Viscosity Lithium Battery Slurry Mixer | Planetary Vacuum Mixer for Li-ion Electrode Slurry Production Stainless Chemicals

High Viscosity Lithium Battery Slurry Mixer | Planetary Vacuum Mixer for Li-ion Electrode Slurry Production Stainless ChemicalsHigh Viscosity Lithium Battery Slurry Mixer | Planetary Vacuum Mixer for Li-ion Electrode Slurry Production Stainless ChemicalsHigh Viscosity Lithium Battery Slurry Mixer | Planetary Vacuum Mixer for Li-ion Electrode Slurry Production Stainless Chemicals




Contact for details

Email: Kimberley@libgroup.net

WhatsApp/Mobile/Wechat: +86-13686664348


Products Description

1. Planetary vacuum mixer can be applied to various solvent and powder mixing processes, such as raw material preparation processes for lithium-ion batteries, tapes, solar energy, chemical industry, etc.

2. The human-machine interface adjusts the motor speed, which in turn drives the rotation of the blades for uniform mixing of the slurry. However, this machine cannot mix dry powder.


Equipment Technical Parameter

Name

Parameters

Remarks

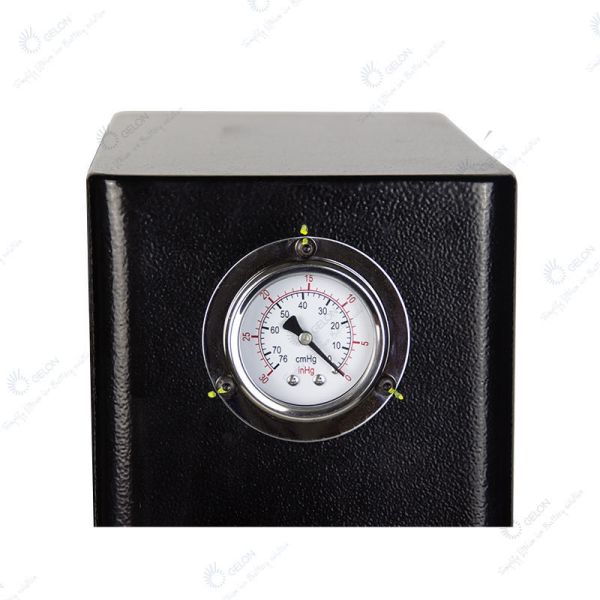

Vacuum Degree

Built-in vacuum generator with a vacuum degree equal to or greater than -70 kPa.

Mixing Tank Volume

50ml/150ml/250ml/300ml/500ml(only one of the specification is standard)

Tank Volume: 50ml

Effective volume max.30ml

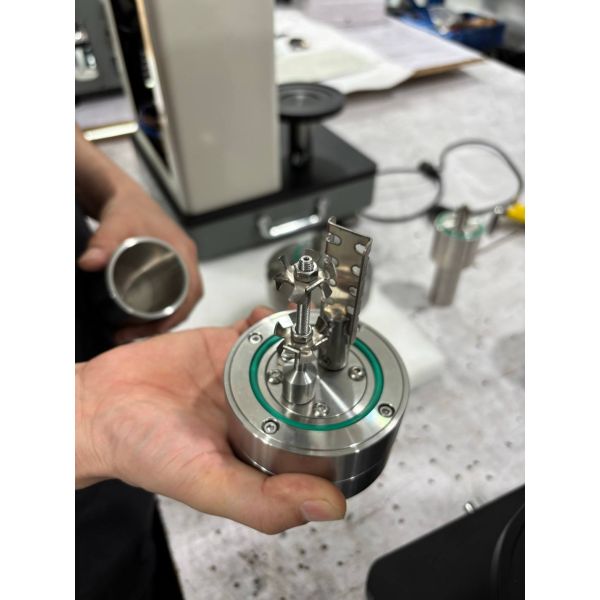

Single paddle mixing

Tank Volume: 150ml

Effective volume max.120ml

Double paddle mixing

Tank Volume: 500ml

Effective volume max.400ml

Double paddle mixing

Mixing Time

0-600min

Freely set as needed

Multi-segment Function

Three segments speed can be set

Max.1,000RPM

Gas source

0.5~0.8MPa Argon, Nitrogen gas (inside glove box), or 0.5~0.8MPa Compressed Air

If the equipment is used inside a glove box, an argon or nitrogen supply must be used. If the equipment is placed outside the glove box, compressed air can be used.

Power Supply

AC220V/50Hz,AC110V/60Hz

Customized

Power

500W

Equipment Dimensions

Approx. L350*W330*H590mm

Dimensions after Packaging

Approx. L450*W440*H770mm

Net Weight

Approx. 40kg

Gross Weight

Approx. 57kg

Usage Site

Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions

Warranty Period

1-year warranty, lifetime maintenance
