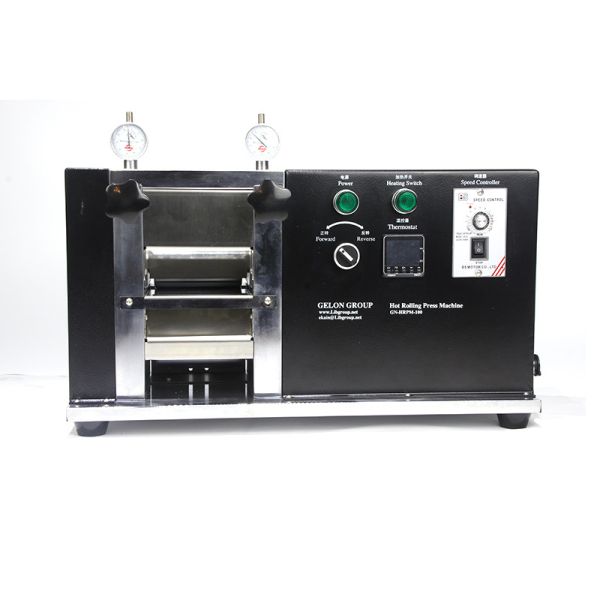

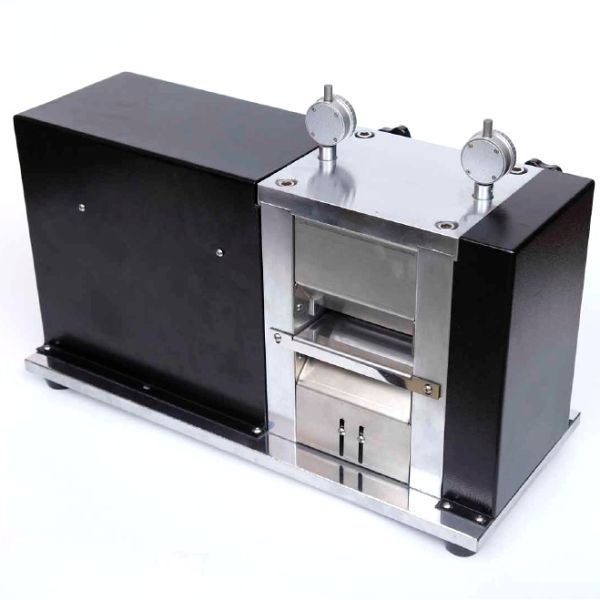

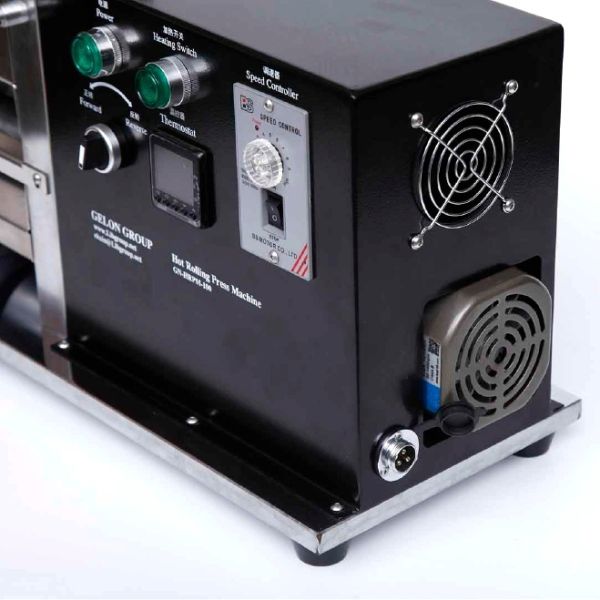

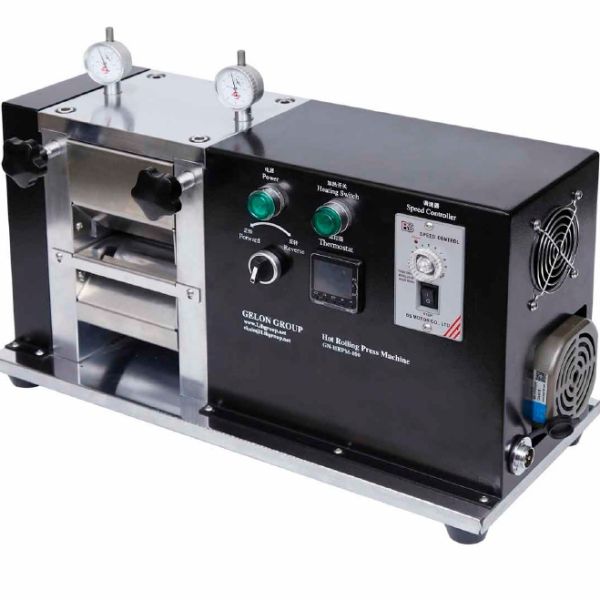

GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production
GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production
GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production
GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production
GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production
GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production
GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production
GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production
GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production
GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production
GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production
GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production
GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production
GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production
Specifications
Brand Name :
Gelon
Model Number :
GN-MR-250H
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
2856 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500 sets/month
Delivery Time :
25-35 days
Packaging Details :
Wooden case
Roller Size :
Φ96mm
Roller Gap :
0~1.2 mm (adjustable)
Roller Width :
250mm
Effective Roller Width :
245mm
Roller Gap Adjustment Precision :
0.01mm
Description

GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production

GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion ProductionGN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion ProductionGN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production



Contact for details

Email: Kimberley@libgroup.net

WhatsApp/Mobile/Wechat: +86-13686664348


Products Description

1. Overview

  1. This machine is primarily designed for the electric rolling of cathode and anode electrode battery materials, as well as nonferrous metals such as copper and aluminum in laboratories. It is particularly suitable for thinning and increasing the density of lithium battery electrodes, which are materials for clean energy.
  2. The equipment uses gear transmission to achieve roller pressing, with adjustable pressing thickness and convenient use. The rollers have high hardness and are treated with hard chrome plating on the surface, reaching a hardness of HRC55 and being rust-resistant, ensuring safe use.
  3. The wedge adjustment for the pressing gap is stable and has high adjustment precision. The rolling precision is high, facilitating the feeding of sheet materials for rolling. It uses gear engagement to achieve roller pressing. The pressing thickness and speed are adjustable. Electric roller pressing forms automation and allows for forward and reverse operation.
  4. The upper and lower rollers have independent temperature control.


2. Features

  1. The calendering roller has high hardness and the surface is treated with hard chromium plating, which is not easy to rust.
  2. The use of inclined blocks to adjust the gap which has good stability and high adjustment accuracy.

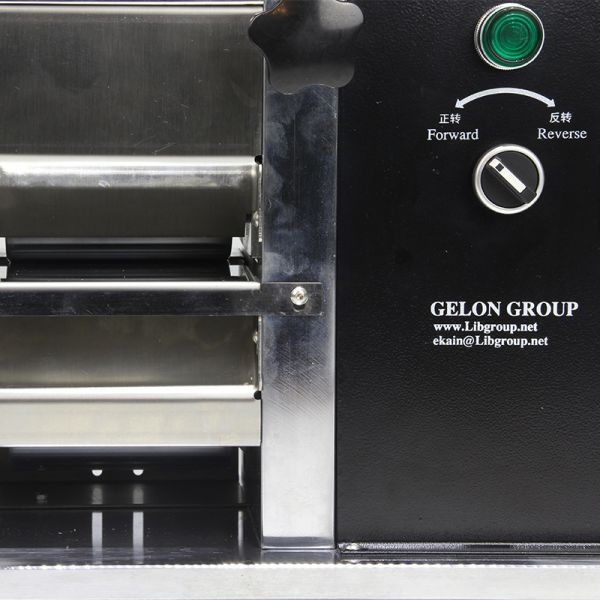

  3. The thickness of the electrode can be adjusted, and it is designed with forward and reverse calendering functions.
  4. Using gear meshing rotation to achieve roller calendering.

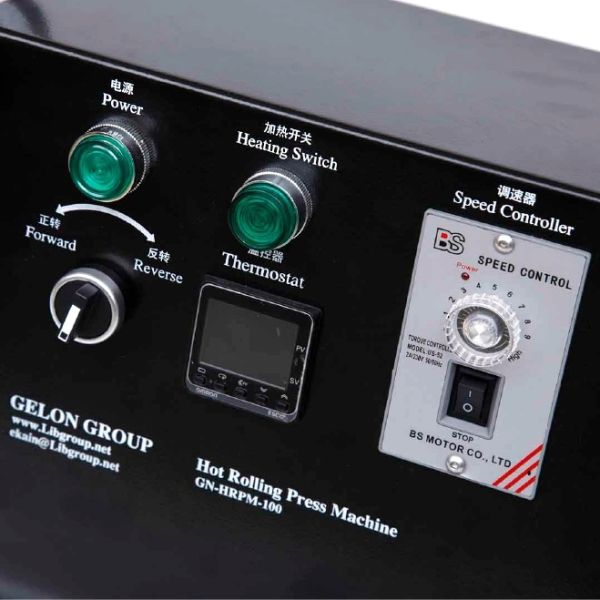

  5. Speed regulating motor drive, equipped with inlet and outlet guide plates.


Equipment Technical Parameter

Name

Parameters

Remarks

Roller Size

Φ96mm

Roller Gap

0~1.2 mm (adjustable)

Roller Width

250mm

Effective Roller Width

245mm

Roller Gap Adjustment Precision

0.01mm

Upper/Lower Roller Heating Temperature

Recommended heating temperature 60℃-80℃

Roller heating temperature Max: 100℃

Roller Hardness

Surface hardness ≥ HRC55

Hardness Layer Thickness ≥ 10mm

Roller Drive

Motor-driven

Suitable for argon gas environment

Rolling Speed

Adjustable

Power Supply

AC220V/50Hz,110V/60Hz

Customized

Power

2400W

Equipment Dimensions

≈L880*W260*H415mm

Including dial indicator

Dimension after Packaging

≈L980*W400*H580mm

Net Weight of Equipment

Approx. 102kg

Gross Weight of Equipment

Approx. 124kg

Usage Site

Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions

Warranty Period

1-year warranty, lifetime maintenance
