Specifications
Air pressure :
0.5 – 0.8 MPa
Separator roll core :
3 inch
Net weight :
Approx. 110 kg
MOQ :
1
Roller Width :
120mm
Stack layer number :
Max. 80 layers (adjustable)
Price :
8250 USD
Packaging Details :
Wooden case
Place of Origin :
China
Based Material Width :
Max. 110 mm
Equipment size :
L600 × W690 × H800 mm
Stacking accuracy :
≤ ±0.5 mm
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Brand Name :
Gelon
Supply Ability :
500 sets/month
Certification :
CE
Delivery Time :
35-40 days
Model Number :
GN-DP200S
Description

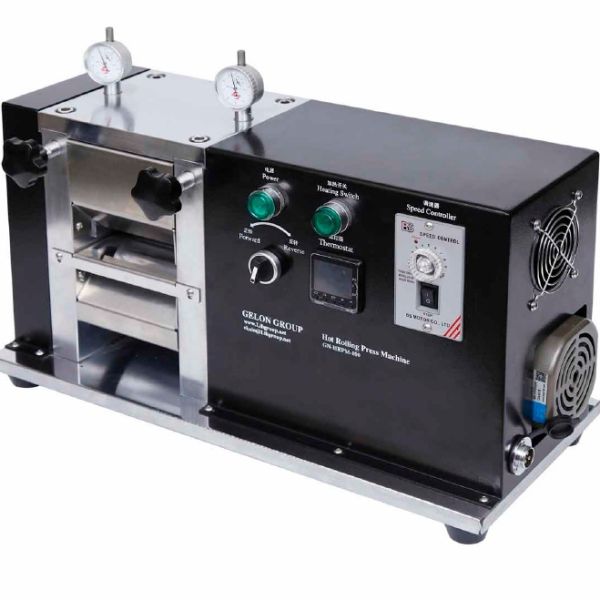

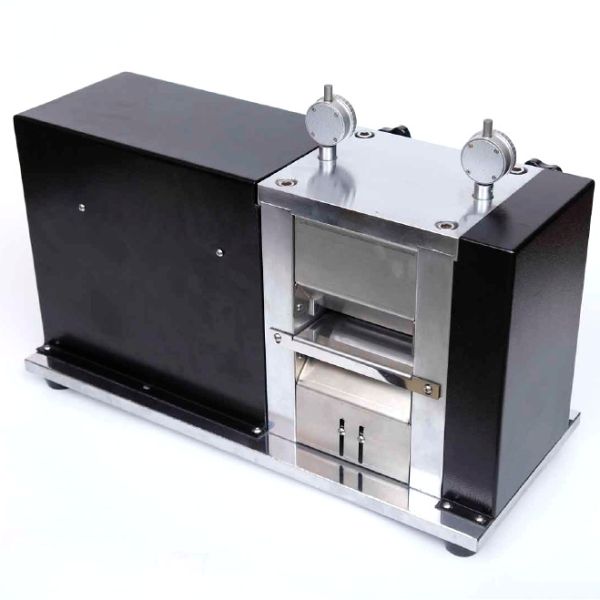

GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production
This advanced electric hot rolling press is specifically engineered for lithium battery electrode calendering in laboratory and production environments.
Electric Hot Rolling Press Electrode Calender Machine with Φ96mm Roller Size, 0.01mm Adjustment Precision, and HRC55 Hardness for Lithium Battery Production Electric Hot Rolling Press Electrode Calender Machine with Φ96mm Roller Size, 0.01mm Adjustment Precision, and HRC55 Hardness for Lithium Battery Production Electric Hot Rolling Press Electrode Calender Machine with Φ96mm Roller Size, 0.01mm Adjustment Precision, and HRC55 Hardness for Lithium Battery Production
Contact for details
Email: Kimberley@libgroup.net
WhatsApp/Mobile/Wechat: +86-13686664348
Product Description
Overview
  • Designed for electric rolling of cathode and anode electrode battery materials, as well as nonferrous metals such as copper and aluminum in laboratories
  • Ideal for thinning and increasing density of lithium battery electrodes for clean energy applications
  • Gear transmission system for roller pressing with adjustable thickness and convenient operation
  • Rollers feature high hardness with hard chrome plating surface treatment, reaching HRC55 hardness and rust resistance
  • Wedge gap adjustment system provides stable operation with high precision
  • Independent temperature control for upper and lower rollers
  • Automated electric roller pressing with forward and reverse operation capabilities
Features
  • High hardness calendering rollers with hard chromium plating surface treatment for rust resistance
  • Inclined block gap adjustment system with excellent stability and high precision
  • Adjustable electrode thickness with forward and reverse calendering functions
  • Gear meshing rotation system for precise roller calendering
  • Speed regulating motor drive with inlet and outlet guide plates
Equipment Technical Parameters
Name Parameters Remarks
Roller Size Φ96mm
Roller Gap 0~1.2 mm (adjustable)
Roller Width 250mm
Effective Roller Width 245mm
Roller Gap Adjustment Precision 0.01mm
Upper/Lower Roller Heating Temperature Recommended heating temperature 60℃-80℃ Roller heating temperature Max: 100℃
Roller Hardness Surface hardness ≥ HRC55 Hardness Layer Thickness ≥ 10mm
Roller Drive Motor-driven Suitable for argon gas environment
Rolling Speed Adjustable
Power Supply AC220V/50Hz,110V/60Hz Customized
Power 2400W
Equipment Dimensions ≈L880*W260*H415mm Including dial indicator
Dimension after Packaging ≈L980*W400*H580mm
Net Weight of Equipment Approx. 102kg
Gross Weight of Equipment Approx. 124kg
Usage Site Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions
Warranty Period 1-year warranty, lifetime maintenance
