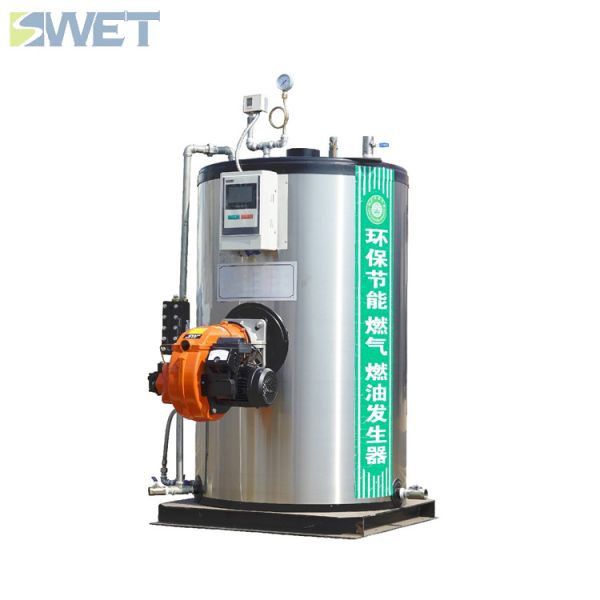

Small Natural Gas Steam Boiler Full Automatic 3.1sqm 700*750*1350mm
Small Natural Gas Steam Boiler Full Automatic 3.1sqm 700*750*1350mm
Specifications
Brand Name :
Swet
Model Number :
ZFQ0.1-Q
Certification :
ISO9001
Place of Origin :
Henan Province, China
MOQ :
1
Supply Ability :
1500 sets per year
Delivery Time :
15-30 days after payment received
Packaging Details :
The boiler is covered with a waterproof film and the transport package is a wooden box.
Rated evaporation :
100kg/h
Rated pressure :
0.2Mpa
Rated steam temperature :
120℃
Fuel :
natural gas
Fuel consumtiion :
8.2 stere per hour
Thermal efficiency :
more than 93%
Heat transfer area :
3.1sqm
Approx weight :
700*750*1350mm
Description

Small Natural Gas Steam Boiler Full Automatic 3.1sqm 700*750*1350mm

This natural gas steam boiler is fully automated and controlled, works stably and reliably, has a long life and low maintenance costs.
This natural gas steam boiler is more efficient because we have increased its heating surface. Uniform heating, good steam quality, high steam purity temperature and wide range of applications.
Reliable boiler auxiliary equipment and a variety of safety protection devices, fully automatic interlock protection program with protection functions such as water shortage, overpressure, overtemperature, gas leakage, flameout, power leakage, word shortage or motor overload.
Small Natural Gas Steam Boiler Full Automatic 3.1sqm 700*750*1350mm
Technical parameters
Item LSS0.1-Q
Rated evaporation Kg/h 100
Rated pressure Mpa 0.2
Rated steam temperature ℃ 120
Design thermal efficiency % ≥93
Heat transfer area m² 3.1
Fuel consumtiion m³/h 8.2
Power consumption kw 0.66
Applicable fuel - natural gas
Approx dimensions L mm 700
W mm 750
H mm 1350
Approx shipping weight Kg 340
Application area
Textile industry: shrinking machine, dry cleaning machine, dryer, washing machine, dehydration machine, printing, ironing machine, iron and other equipment.
Food machinery industry: steamer, tofu machine, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment.
Other industries: automotive steam cleaning industry, hotels, hotels, schools, enterprises and other hot water supply, bridges, railway concrete conservation and other industries.
