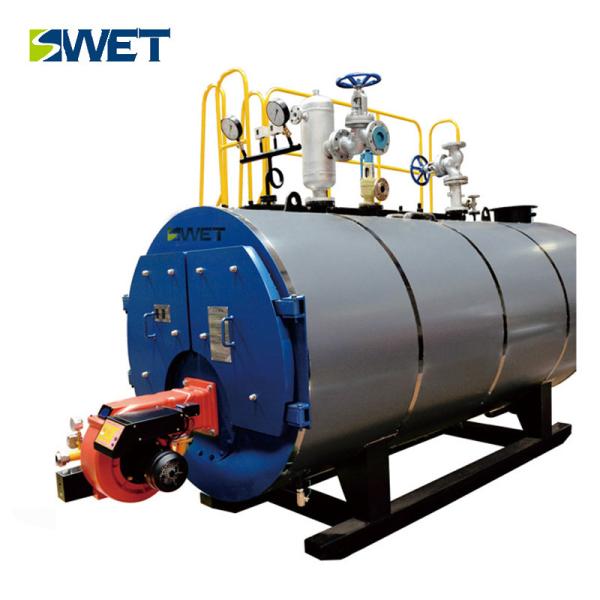

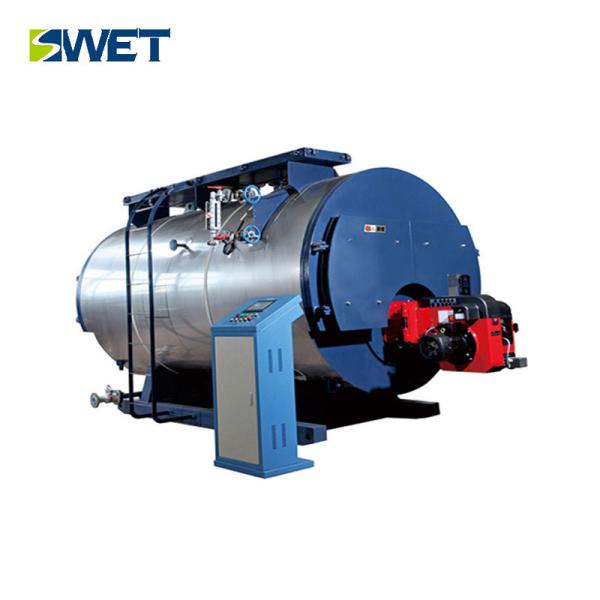

No Pollution Emission Mini Diesel Steam Boiler High Thermal Efficiency
No Pollution Emission Mini Diesel Steam Boiler High Thermal Efficiency
No Pollution Emission Mini Diesel Steam Boiler High Thermal Efficiency
No Pollution Emission Mini Diesel Steam Boiler High Thermal Efficiency
Specifications
Brand Name :
SWET
Model Number :
WNS
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
25-30 work days
Packaging Details :
The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Rated evaporation :
1000kg / h
Rated working pressure :
1.0/1.25/1.6 MPa
Rated steam temperature :
184/194/204 ℃
Feed water temperature :
20 ℃
Keywords :
gas steam boiler
Model :
WNS
Testing efficiency :
96.48 %
Color :
Customer requirements
Description

No Pollution Emission Fire Tube 1 ton 2 ton 3 ton 4ton 5ton Mini Diesel Steam Boiler

Advanced and reasonable design

A large combustion chamber which increases the radistion heating furnace

Reasonable boiler combustor design, suitable for different fuels such as diesel, natural gas, town gas and so on, the fuels can burn completely and increasing the radiation heating furnace area,reducing the NOX emissions.

(1)This kind of burning gasoline boiler uses new type fireproof material, no preload, high thermal efficiency, stable air pressure, steam can produce high quality products in a short time.

(2)When burning, the noise is low, pollution-free, flue gas is burned completely, which can save fuel cost and improve economic efficiency.and this is an environment-friendly and energy-saving product.

No Pollution Emission Mini Diesel Steam Boiler High Thermal Efficiency
WNS series automatic gas (oil) steam energy saving boiler product selection form
Model Rated capacity Working pressure Steam temperature Feed temperature Testing efficiency Gas consumption Outline dimension
Unit t/h Mpa ℃ ℃ % Nm³/h mm(L*W*H)
WNS20-2.5-Q(Y) 20 2.5 226 105 97.62 1407.5 8660*3520*4831
WNS20-1.25(1.6)-Q(Y) 20 1.25/1.6 194/204 105 97.51 1459 8870*3550*3750
WNS10-1.25(1.6)-Q(Y) 10 1.25/1.6 194/204 105 96.75 837.25 6370*2812*3514
WNS6-1.25(1.6)-Q(Y) 6 1.25/1.6 194/204 105 96.58 433.51 5470*2770*3195
WNS4-1.0(1.25)(1.6)-Q(Y) 4 1.0/1.25/1.6 184/197/204 20 96.3 334.23 4880*2710*2600
WNS3-1.0(1.25)(1.6)-Q(Y) 3 1.0/1.25/1.6 184/197/204 20 95.99 245.12 4762*2447*2469
WNS2-1.0(1.25)-Q(Y) 2 1.0/1.25 184/197/204 20 95.81 163.72 4030*2010*2210
Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output
Welcome to contact us

Important production process of the product

(1) The boiler is composed of a tube sheet manufacturing process, a barrel manufacturing process, a manhole device manufacturing process, a drum manufacturing process, and a boiler assembly process.

(2) After the components of the boiler are assembled, they are packaged or sent directly to the user.

Application

(1) The steam boiler for food industry and wood processing.

(2) The steam boiler for asphalt plant and brewery.

(3) The steam boiler for printing mill and garment industry.

(4) The steam boiler for hospital and school

(5) The steam boiler hotel and paper industry.

(6) The steam boiler steel industry and rice mill.

Welcome to contact us

Packaging & Shipping

No Pollution Emission Mini Diesel Steam Boiler High Thermal Efficiency

Product packaging

(1) Industrial steam boiler package.

(2) In all boiler attachments or plywood wooden boxes.

(3) Packing specification: customer requirements.

(4) Bulk, wooden boxes, crate.

FAQ

Q: What is our Qualification?

A: We are a Class-A Boiler Manufacturer, with 30 years' experience in the field of boilers and pressure vessels.

Q: What is our Product Range?

A: We specialized in Hot Water Boiler, Steam Boiler, Thermal Oil Boiler, Autoclave, Pressure Tanks, Wood Treatment Plant, Hot Air Generator, etc.

Q: What is our Warranty Period?

A: The Warranty Period is one year with lifelong service.

Q:How is our industry brand?

A:Boiler design, manufacturing, transportation, installation, service integration.
