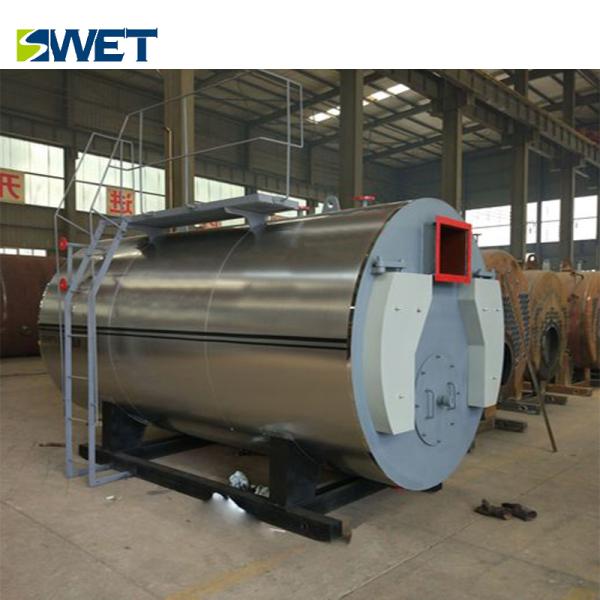

Heating 15T/H Industrial Gas Fired Steam Boilers Good Thermal Insulation Material
Heating 15T/H Industrial Gas Fired Steam Boilers Good Thermal Insulation Material
Heating 15T/H Industrial Gas Fired Steam Boilers Good Thermal Insulation Material
Heating 15T/H Industrial Gas Fired Steam Boilers Good Thermal Insulation Material
Heating 15T/H Industrial Gas Fired Steam Boilers Good Thermal Insulation Material
Heating 15T/H Industrial Gas Fired Steam Boilers Good Thermal Insulation Material
Heating 15T/H Industrial Gas Fired Steam Boilers Good Thermal Insulation Material
Heating 15T/H Industrial Gas Fired Steam Boilers Good Thermal Insulation Material
Specifications
Brand Name :
SWET
Model Number :
WNS15-1.0(1.25)(1.6)-Q(Y)-3004
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
25-30 work days
Packaging Details :
The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Rated evaporation :
15 t / h
Rated working pressure :
1.6 MPa
Rated steam temperature :
184/197/204
Feed water temperature :
105 ℃
Keywords :
gas steam boiler
Model :
WNS15-1.0(1.25)(1.6)-Q(Y)-3004
 Gas consumption :
1126 Nm³/h
Color :
based on customer's needs
Description

High Afficiency Automatic Horizontal 15T/h 1.6Mpa Gas Stam Boiler For Heating


Product description

The WNS series of gas steam boilers for the fast-loading horizontal internal combustion three back wet back fire tube structure. The furnace tube and the wet-smoke tube plate are all butt-welded. In order to restrain the generation of NOx, a lower furnace volume heat load

Product advantages

1.Boiler automation instrumentation and auxiliary equipment is reasonable, advanced and reliable

2. Gas steam boiler computer control, high degree of automation, all kinds of safety protection device is complete, easy to operate, safe and reliable operation.

3. 80mm thick aluminum silicate fiber for insulation, light weight, good thermal insulation, heat loss

Specification

WNS series of automatic gas (oil) steam energy-saving boiler product selection table
Model Rated evaporation Work pressure Steam temperature Feed water temperature Air consumption Test efficiency Transport dimensions
Unit t/h MPa ℃ ℃ Nm³/h % mm
WNS20-2.5-Q(Y) 20 2.5 226 105 1407.5 97.62 8660x3520x4831
WNS20-1.25(1.6)-Q(Y) 20 1.25/1.6 194/204 105 1459 97.51 8870x3550x3750
WNS15-1.0(1.25)(1.6)-Q(Y) 15 1.0/1.25/1.6 184/194/204 105 1126 97.2 7450x3520x4090
WNS10-1.25(1.6)-Q(Y) 10 1.25/1.6 194/204 105 837.25 96.75 6370x2812x3514
WNS8-1.25(1.6)-Q(Y) 8 1.25/1.6 194/204 105 659.25 96.7 6000x2920x3430
WNS6-1.25(1.6)-Q(Y) 6 1.25/1.6 194/204 105 433.51 96.58 5470x2770x3195
