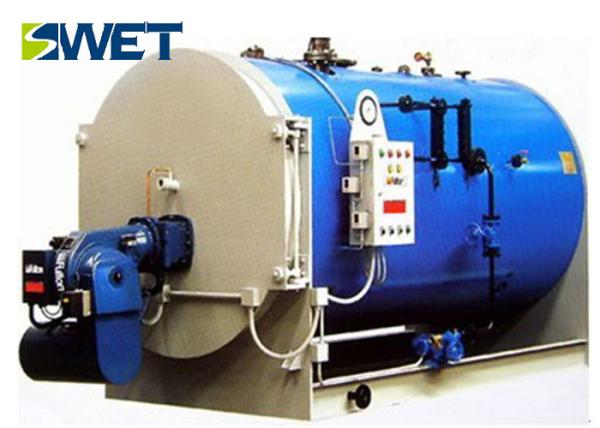

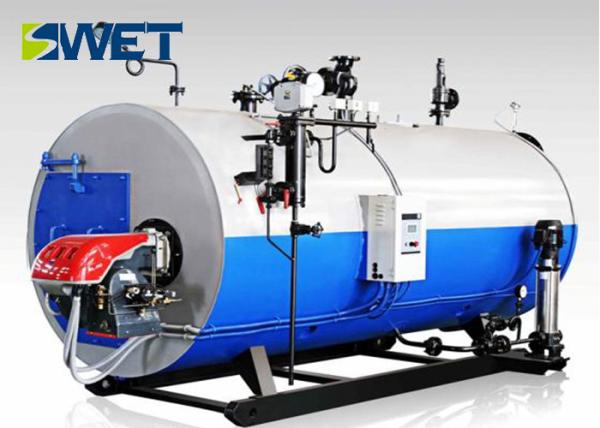

Excellent Heat Insulation Layer Energy Saving 2t/h 0.7Mpa 1.0Mpa 1.2Mpa Industrial Steam Boiler
Excellent Heat Insulation Layer Energy Saving 2t/h 0.7Mpa 1.0Mpa 1.2Mpa Industrial Steam Boiler
Excellent Heat Insulation Layer Energy Saving 2t/h 0.7Mpa 1.0Mpa 1.2Mpa Industrial Steam Boiler
Excellent Heat Insulation Layer Energy Saving 2t/h 0.7Mpa 1.0Mpa 1.2Mpa Industrial Steam Boiler
Excellent Heat Insulation Layer Energy Saving 2t/h 0.7Mpa 1.0Mpa 1.2Mpa Industrial Steam Boiler
Excellent Heat Insulation Layer Energy Saving 2t/h 0.7Mpa 1.0Mpa 1.2Mpa Industrial Steam Boiler
Excellent Heat Insulation Layer Energy Saving 2t/h 0.7Mpa 1.0Mpa 1.2Mpa Industrial Steam Boiler
Excellent Heat Insulation Layer Energy Saving 2t/h 0.7Mpa 1.0Mpa 1.2Mpa Industrial Steam Boiler
Specifications
Brand Name :
SWET
Model Number :
WNS2
Certification :
ISO9001
Place of Origin :
HENAN,CHINA
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1200 Sets / Year
Delivery Time :
30 work days
Packaging Details :
Wooden boxes plus plastic paper packaging
Rated capacity/t/h :
2
Working pressure/MPA :
1.0
Steam temperature/℃ :
184
Feed temperature/℃ :
20
Testing efficiency/% :
95.81
Gas consumption/Nm3/h :
160
Description

Excellent Heat Insulation Layer Energy Saving 2t/h 0.7Mpa 1.0Mpa 1.2Mpa Industrial Steam Boiler

Excellent Heat Insulation Layer Energy Saving 2t/h 0.7Mpa 1.0Mpa 1.2Mpa Industrial Steam Boiler

Advantages

1. Boiler with light oil and gas for fuel, can also be used for city gas or liquefied petroleum gas, wide fuel adaptability, high efficiency and energy saving, low operation cost.

2. Using 80mm thick aluminum silicate fiber insulation layer, light weight, good heat insulation effect, small heat loss.

Advanced and reasonable design

WNS series steam boiler adopts the most sophisticated three returns all wet back structure,thread smoke tube structure weld joint with high quality.

A large combustion chamber which increases the radistion heating furnace

Reasonable boiler combustor design, suitable for different fuels such as diesel, natural gas, town gas , the fuels can burn completely and increasing the radiation heating furnace area,reducing the NOX emissions.

WNS series automatic gas (oil) steam energy saving boiler product selection form
Model Rated capacity Working pressure Steam temperature Feed temperature Testing efficiency Diesel consumption Gas consumption Outline dimension
Unit t/h Mpa ℃ ℃ ％ Kg/h Nm³/h mm(L*W*H)
WNS20-1.25(1.6)-Q(Y) 20 1.25/1.6 194/204 105 97.51 1276.63 1459

8870*3550

*3750
WNS15-1.0(1.25)(1.6)-Q(Y) 15 1.0/1.25/1.6 184/197/204 105 97.2 985.25 1126

7450*3520

*4090
WNS10-1.25(1.6)-Q(Y) 10 1.25/1.6 194/204 105 96.75 732.59 837.25

6370*2812

*3514
WNS8-1.25(1.6)-Q(Y) 8 1.25/1.6 194/204 105 96.7 576.84 659.25

6000*2920

*3403
WNS6-1.25(1.6)-Q(Y) 6 1.25/1.6 194/204 105 96.58 379.32 433.51

5470*2770

*3195
WNS5-1.25(1.6)-Q(Y) 5 1.25/1.6 194/204 20 96.48 358.16 409.33

5160*2410

*3015
WNS4-1.0(1.25)(1.6)-Q(Y) 4 1.0/1.25/1.6 184/197/204 20 96.3 292.45 334.23

4880*2710

*2600
WNS3-1.0(1.25)(1.6)-Q(Y) 3 1.0/1.25/1.6 184/197/204 20 95.99 214.48 245.12

4762*2447

*2469
WNS2-1.0(1.25)-Q(Y) 2 1.0/1.25 184/197/204 20 95.81 143.26 163.72

4030*2010

*2210
Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output

Excellent Heat Insulation Layer Energy Saving 2t/h 0.7Mpa 1.0Mpa 1.2Mpa Industrial Steam Boiler
