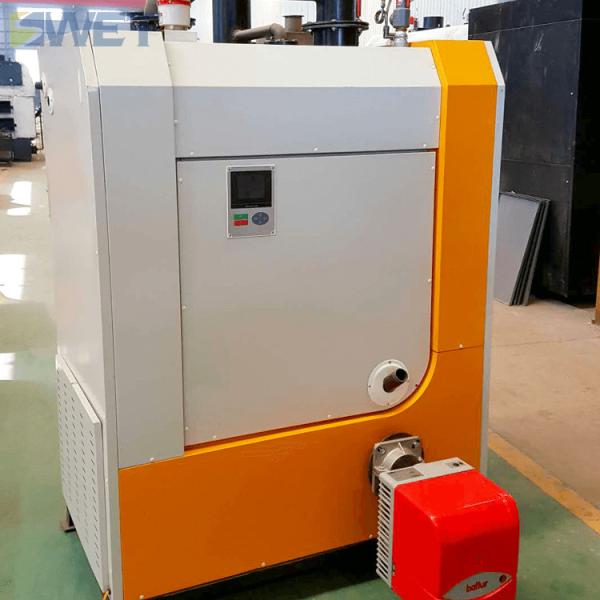

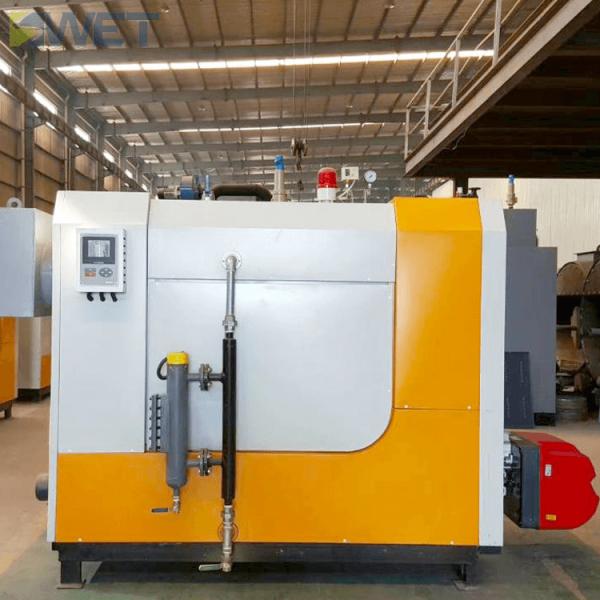

Environmental Natural Gas Steam Boiler , 600kg Gas Fired Steam Boiler
Environmental Natural Gas Steam Boiler , 600kg Gas Fired Steam Boiler
Environmental Natural Gas Steam Boiler , 600kg Gas Fired Steam Boiler
Environmental Natural Gas Steam Boiler , 600kg Gas Fired Steam Boiler
Environmental Natural Gas Steam Boiler , 600kg Gas Fired Steam Boiler
Environmental Natural Gas Steam Boiler , 600kg Gas Fired Steam Boiler
Specifications
Brand Name :
SWET
Model Number :
WNS
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
25-30 work days
Packaging Details :
The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Rated evaporation :
600kg / h
Rated working pressure :
1.0/1.25/0.7 MPa
Rated steam temperature :
184/194/204 ℃
Feed water temperature :
20 ℃
Keywords :
gas steam boiler
Model :
YDZ
Testing efficiency :
96.48 %
Color :
Customer requirements
Description

600kg 0.7Mpa gas steam boiler for dehydration

1.Environmental protection and durability: gas steam boiler with a new multi-tube cyclone dust collector and energy-saving integrated structure, greatly reducing the flue gas temperature, improve thermal efficiency, environmental protection requirements to meet the new national standards.

2.Sophisticated and beauty: gas steam boiler innovation and improvement to enhance the practicality, modeling novel, especially small size, easy to install without basic, product appearance, soft colors, and the environment coherent, full of artistic sense.

3.Easy installation; no need to ask for a professional installation personnel to install, meanwhile saving a lot of installation materials.

Gas steam boiler technical parameters

Gas steam boiler technical parameter

Rated evaporati on

Rated pressure

Rated steam temperat ure

Feed water temperat ure

Design thermal efficienc y

Water capacit y

Steam outlet

water intake

Drain valve

Gas supply pressur e

Gas pipe diamet er

Dimensions

Shippin g weight

Full load biomas s consum

ption
L W H
Kg/h Mpa ℃ ℃ % L DN DN DN Kpa DN mm mm mm T Nm³/h
150 0.7 170℃ 20℃ 90% 27 15 15 20 2-3.5 20 1250 1200 1700 0.7 11.7(NG)
200 0.7 170℃ 20℃ 90% 27.6 20 15 25 2-3.5 20 1600 1500 2300 1.2 15.7(NG)
300 0.7 170℃ 20℃ 90% 28 25 15 25 2-3.5 20 1700 1600 2300 2.3 22.3(NG)
400 0.7 170℃ 20℃ 90% 28 32 15 25 3.5-5 20 2350 1750 2200 2.8 30.5(NG)

Gas steam boiler Fuel Cost analysis:

Fuel Cost analysis(one hour)
Equipment selection Steam volume Energy consumption Unit Price Operating costs
Electrothermal steam boiler 100kg 72 kw/h 0.08 USD/kw 10.91 USD
Fuel steam boiler 100kg 7 kg/h 0.53 USD/kg 7.42 USD
Gas steam boiler 100kg 8 m³/h natural gas 0.34 USD/m³ 5.45 USD
Biomass steam generator 100kg 20 kg/h wood pellet 0.08 USD/kg 3.03 USD

gas steam boiler applicable scenario :

1.Textile industry: shrinking machine, dry cleaning machine, dryer, washing machine, dehydration machine, printing, ironing machine, iron and other equipment.

2.Other industries: automotive steam cleaning industry, hotels, hotels, schools, enterprises and other hot water supply, bridges, railway concrete conservation and other industries.

Our engineering case:

Related products

Company Information

Henan Swet Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler.It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification. It holds level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.In 1979 the world's first circulating fluidized bed boiler developed by the Austrian company in Finland, In 1987 China's first circulating fluidized bed boiler was born in our factory.

Our factory engineer with Tsinghua Thermal Engineering Department professor circulating fluidized bed boiler technology exchange.

OUR ADVANTAGES:

1.Chinese Academy of Sciences circulating fluidized bed boiler research and development base.

2.China 's top ten boiler manufacturing enterprises.

3.Shanghai Industrial Boiler Research Institute Industrial Boiler Technology Development Relying on the unit.

4.North China Water Conservancy and Hydropower University teaching and research base

5. The China’s first circular flow bed (CFB)boiler manufacturer

Some of our domestic customers:
China Petroleum Pipeline Materials and Equipment Corporation.
China Petroleum & Chemical Corporation.
China Aero Engine Group.
COFCO Group Limited.
