Industrial Hot Dipped Galvanized Steel Grating with Serrated Load Bearing Bar for Oil and Gas Industry
Industrial Hot Dipped Galvanized Steel Grating with Serrated Load Bearing Bar for Oil and Gas Industry
Industrial Hot Dipped Galvanized Steel Grating with Serrated Load Bearing Bar for Oil and Gas Industry
Industrial Hot Dipped Galvanized Steel Grating with Serrated Load Bearing Bar for Oil and Gas Industry
Industrial Hot Dipped Galvanized Steel Grating with Serrated Load Bearing Bar for Oil and Gas Industry
Industrial Hot Dipped Galvanized Steel Grating with Serrated Load Bearing Bar for Oil and Gas Industry
Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description
Industrial Flooring Hot Dipped Galvanized Steel Grating
Heavy-duty steel grating with flat serrated load bearing bars designed specifically for the oil and gas industry. Also known as bar grating, this product features a square grid pattern created by flat bearing bars and cross round bars.
Product Applications
Ideal for various industrial applications including:
  • Gutter covers and drainage systems
  • Steel structure platform walkways
  • Steps of steel ladders and stair treads
  • Industrial flooring and access platforms
Construction & Materials
Primary Materials
Carbon steel with hot-dip galvanized surface for oxidation protection. Also available in stainless steel and aluminum.
Welding Methods
Machine forge welding type and handmade manual welding type available to suit different project requirements.
Surface Types
Flat type, tooth type (serrated), and "I" type configurations for varying traction and load requirements.
Technical Specifications
Grating Type
Serrated steel grating
Bearing Bar Spacing
30mm, 35mm, 40mm, 45mm, 50mm, 60mm, 70mm, 80mm, 90mm, 100mm
Bearing Bar Thickness
2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm
Cross Bar Sizes
ø5mm, ø6mm, ø7mm, ø8mm, ø10mm, ø12mm
Cross Bar Spacing
ø40mm, ø50mm, ø60mm, ø80mm, ø100mm
Maximum Length
8 meters
Surface Treatment
Black bare metal, hot dipped galvanized, or powder coating
Load Capacity Specifications
Type Width mm Thick mm KG/m Clear Span mm 200 400 600 800 1000 1200 1400
G505/30/50 50 5 80.9 U 2361 590 262 147 94 65 48
D 0.14 0.55 1.24 2.2 3.45 4.97 6.82
G505/30/100 77.9 C 236 118 78 59 47 39 33
D 0.11 0.44 0.99 1.77 2.77 3.99 5.39
Product Images

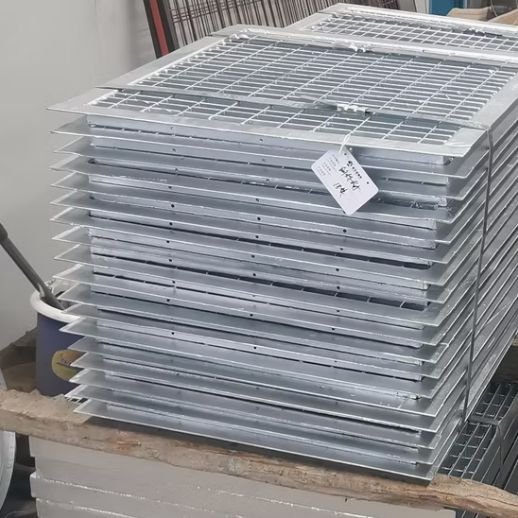

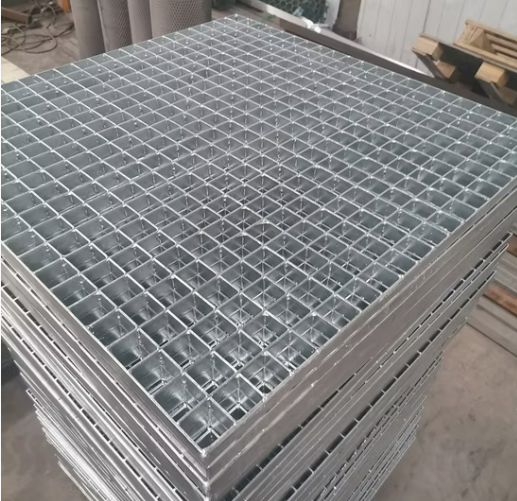

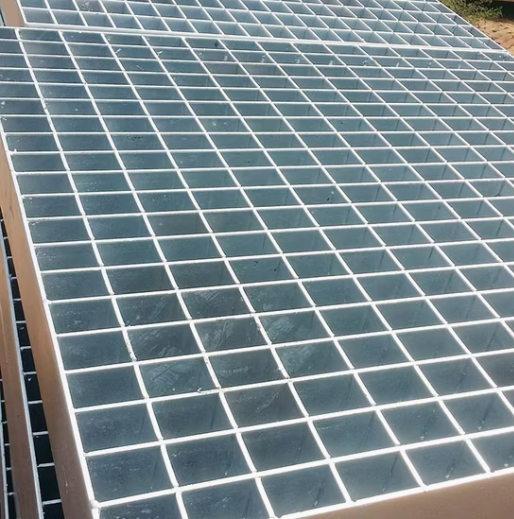

Industrial Hot Dipped Galvanized Steel Grating with Serrated Load Bearing Bar for Oil and Gas Industry Industrial Hot Dipped Galvanized Steel Grating with Serrated Load Bearing Bar for Oil and Gas Industry Industrial Hot Dipped Galvanized Steel Grating with Serrated Load Bearing Bar for Oil and Gas Industry
