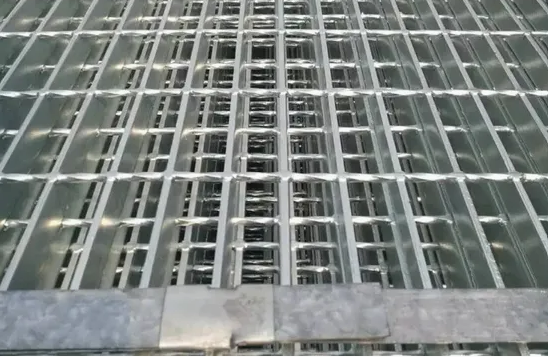

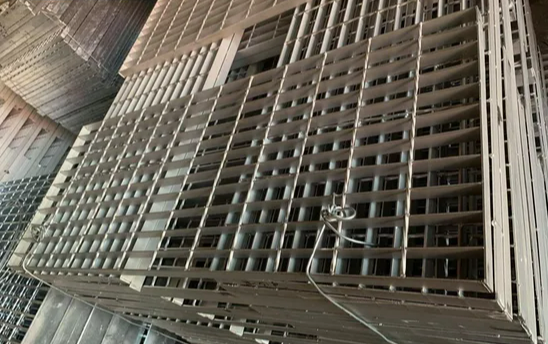

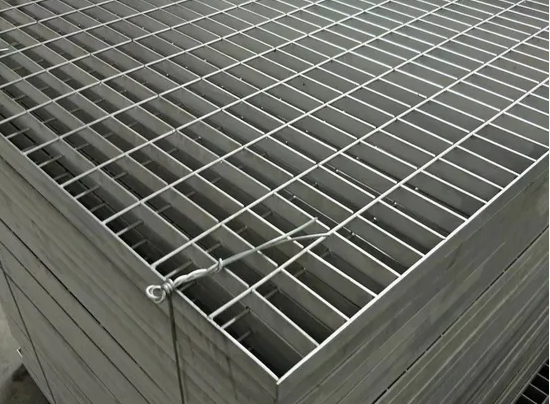

Stainless Steel 304/316 Heavy Duty Steel Bar Grating with Bearing Bar Size 20x3 to 100x9 and 12.5 to 100mm Pitch
Stainless Steel 304/316 Heavy Duty Steel Bar Grating with Bearing Bar Size 20x3 to 100x9 and 12.5 to 100mm Pitch
Stainless Steel 304/316 Heavy Duty Steel Bar Grating with Bearing Bar Size 20x3 to 100x9 and 12.5 to 100mm Pitch
Stainless Steel 304/316 Heavy Duty Steel Bar Grating with Bearing Bar Size 20x3 to 100x9 and 12.5 to 100mm Pitch
Stainless Steel 304/316 Heavy Duty Steel Bar Grating with Bearing Bar Size 20x3 to 100x9 and 12.5 to 100mm Pitch
Stainless Steel 304/316 Heavy Duty Steel Bar Grating with Bearing Bar Size 20x3 to 100x9 and 12.5 to 100mm Pitch
Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

Steel Grating is welded bearing steel bars and cross twisted bars accoring to required pitch space between steel bars by steel grating welding machines.it is a grid building material.
All gratings are made using high quality standard steel materials which exhibit good hardness and high tensile strength. It is extremely strong, durable and corrosion resistance and great anti-slip performance.
Based on where the grating will be used and its load bearing requirements, steel bars are available in a range of spacing pitch, thicknesses and heights.

  1. Expert Manufacturing

  2. Robust Export Experience

  3. Customization Capability

  4. Competitive Pricing

  5. Stringent QC & Certificate

  6. Responsive Service

Material 1.Carbon Steel Q235 2.Stainless Steel 304 / 316
Type Press lokced / Flat bar / Serrated bar / I Bar
Bearing Bar Size 20 x 3 to 100 x 9;the specification of "I-section" is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc
Bearing Bar Pitch 12.5 to 100 mm etc, 30, 40, 60mm are recommended, America standard is available
Cross Bar Pitch from18.5 to 101.6mm etc, 50, 100mm are recommended, America standard is available
Specification Size of bearing flat steel: 25x3mm / the center space: 30mm, 40mm, 50mm, 100mm
Size of horizontal pole: 10x2mm / the center space : 50mm, 100mm
Surface Treatment Untreated / Painting / Hot Dip Galvanizing
Steel Standard China GB700-88 / America ASTM (A36) / Britain ASTM (A36)
HDG Standard China GB/T13912-92 / America ASTM (A123) / Britain BS729
Quality Standard China YB/T4001-1998 America ANSI/NAAMM (MBG531-88)
Britain BS4592-1987 Australia AS1657-1992


No. Bearing Bar Pitch
(mm)		 Standard Panel Width
(Bearing Bar Thickness 5mm)		 Bearing Bar Number
(PC)		 Remark
1 12.5 1005 81 Pitch between the two sides are smaller than normal bearing bar pitch.
2 15 1010 68
3 20 1010 51
4 22 995 46
5 23.85 1007 43
6 25 1005 41
7 30 995 34
8 30.16 1000 34
9 30.3 1005 34
10 32.5 1013 32
11 34.3 1000 30
12 35 1020 30
13 35.3 1029 30
14 40 1005 26
15 41 1030 26
16 41.4 999 25
17 50 1005 21
18 60 965 17
19 62 997 17
