Hot DIP Galvanized 25x3 25x4 30x3 Bearing Bar Steel Grating for Industrial Flooring
Hot DIP Galvanized 25x3 25x4 30x3 Bearing Bar Steel Grating for Industrial Flooring
Hot DIP Galvanized 25x3 25x4 30x3 Bearing Bar Steel Grating for Industrial Flooring
Hot DIP Galvanized 25x3 25x4 30x3 Bearing Bar Steel Grating for Industrial Flooring
Hot DIP Galvanized 25x3 25x4 30x3 Bearing Bar Steel Grating for Industrial Flooring
Hot DIP Galvanized 25x3 25x4 30x3 Bearing Bar Steel Grating for Industrial Flooring
Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

Description

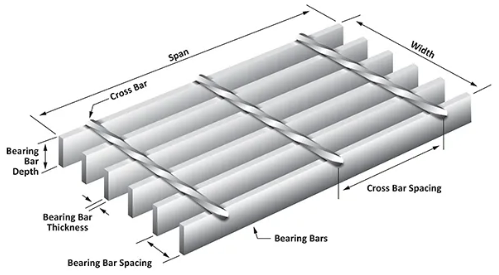

1. Bearing bar: 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm
2. Bearing bar pitch: 20,25,30,35,40,50,60mm.
US standard: 1"x3/16", 1-1/4"x3/16", 1-1/2"x3/16".
3. Cross bar pitch:38,40,50,100.
4. Material: Mild Carbon Steel, SUS304.
5. Surface finishing treatment:Black, electric galvanized,hot dipped galvanized, paint.
6. Standard
China: YB/T 4001.1-2007
USA: ANSI/NAAMM(MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985


Hot DIP Galvanized 25x3 25x4 30x3 Bearing Bar Steel Grating for Industrial Flooring

Table: Popular Specification of Steel Metal Grating
Item Specifications of
Bearing Bar (mm)		 Diameter of
Cross Bar (mm)		 Pitch of
Bearing Bar (mm)		 Pitch of
Cross Bar (mm)
253 25x3 6 20,30,40,50 50,100
254 25x4 6,8 20,30,40,50 50,100
255 25x5 6,8 20,30,40,50 50,100
304 30x4 8 20,30,40,50 50,100
305 30x5 8 20,30,40,50 50,100
355 35x5 8 20,30,40,50 50,100
404 40x4 8 20,30,40,50 50,100
405 40x5 8 20,30,40,50 50,100
455 45x5 8 20,30,40,50 50,100
505 50x5 8 20,30,40,50 50,100
605 60x5 8 30,40,50,60 50,100
705 70x5 8 30,40,50,60 50,100


Uses and Application of Metal Bar Steel Grating
Offshore Drilling Oil Platform Metal Grating for Petroleum Project
Flooring
Stairs, stair treads
Sewage drain covers, manhole covers and loading ramps
Racks and shelving
Catwalks,Walkway and crossover platforms
Safety steel grids fence
Bridge sidewalks and bridge decking
Architectural uses like building facades or partitions
Security screens in residential and commercial buildings
Steel bar grating has a vast amount of uses ranging from flooring and stairs to bridges and sewage drain covers. It is a smart choice for flooring and stairs in work areas where slipping and falling are a major concern, such as industrial plants, waste-water treatment facilities, or manufacturing operations. The open design makes bar grating the best option for areas that require the passage of light. It also works well for projects that require fast, easy fabrication and installation.
