Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

Steel Grating is welded bearing steel bars and cross twisted bars accoring to required pitch space between steel bars by steel grating welding machines.it is a grid building material.
Product Features
Durability: Constructed from high-quality carbon or stainless steel, ensuring long-lasting performance in demanding environments.
Load-Bearing Capacity: Engineered to support heavy loads, making it ideal for industrial applications such as factories and warehouses.
Slip-Resistant Surface: Features a textured surface that enhances safety by reducing the risk of slips and falls.
Customizable Sizes: Available in various sizes and spacing options to meet specific project requirements and applications.
Optimal Drainage: Open design allows for effective water drainage and air circulation, reducing the risk of pooling and enhancing hygiene.

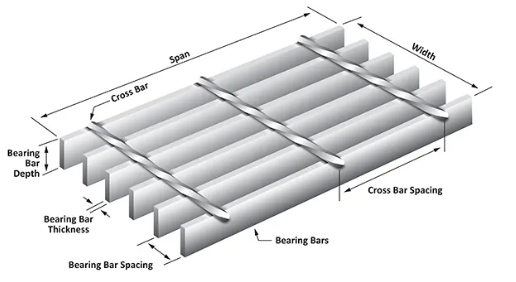

Table: Popular Specification of Steel Metal Grating
Item Specifications of
Bearing Bar (mm)		 Diameter of
Cross Bar (mm)		 Pitch of
Bearing Bar (mm)		 Pitch of
Cross Bar (mm)
253 25x3 6 20,30,40,50 50,100
254 25x4 6,8 20,30,40,50 50,100
255 25x5 6,8 20,30,40,50 50,100
304 30x4 8 20,30,40,50 50,100
305 30x5 8 20,30,40,50 50,100
355 35x5 8 20,30,40,50 50,100
404 40x4 8 20,30,40,50 50,100
405 40x5 8 20,30,40,50 50,100
455 45x5 8 20,30,40,50 50,100
505 50x5 8 20,30,40,50 50,100
605 60x5 8 30,40,50,60 50,100
705 70x5 8 30,40,50,60 50,100
