Load Bearing and Slip Resistant Steel Bar Grating with Customizable Sizes for Pedestrian and Light Vehicle Traffic
Load Bearing and Slip Resistant Steel Bar Grating with Customizable Sizes for Pedestrian and Light Vehicle Traffic
Load Bearing and Slip Resistant Steel Bar Grating with Customizable Sizes for Pedestrian and Light Vehicle Traffic
Load Bearing and Slip Resistant Steel Bar Grating with Customizable Sizes for Pedestrian and Light Vehicle Traffic
Load Bearing and Slip Resistant Steel Bar Grating with Customizable Sizes for Pedestrian and Light Vehicle Traffic
Load Bearing and Slip Resistant Steel Bar Grating with Customizable Sizes for Pedestrian and Light Vehicle Traffic
Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

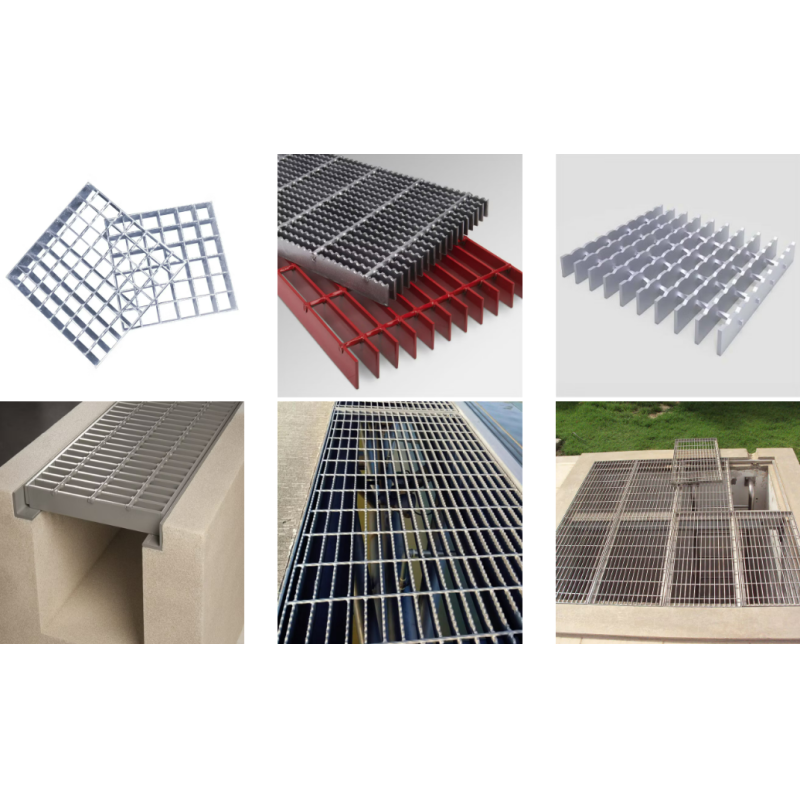

Steel Bar Grating
also known as Grating,Bar Gratins or Welded Steel Bar Grating. It is extremely strong and durable for all load bearing applications and is primarily used for pedestrian and light vehicle traffic. Steel Bar Grating is available in a variety of bearing bar spacing and thicknesses depending on applications and load requirements. Available in either smooth top or serrated for slip resistance.


When ordering, please specify:

  1. Material type
  2. Specification code of steel bar grating
  3. Cross bar type and size
  4. Thickness of checkered steel plates, or all parameters of steel mesh panels such as expanded steel mesh, perforated steel mesh and steel wire mesh panels
  5. Overall size
  6. Surface treatment
  7. Order qty
  8. Other technical details (if any)
  9. All commercial details
Easy-understanding specification chart of steel bar gratings
Vertical Bar Spacing Horizontal Bar Spacing Specification of Supporting Flat Steel (Width X Thickness)
20 × 3 25 × 3 32 × 3 40 × 3 20 × 5 25 × 5
30 100 G203 / 30 / 100 G253 / 30 / 100 G323 / 30 / 100 G403 / 30 / 100 G205 / 30 / 100 G255 / 30 / 100
50 G203 / 30 / 50 G253 / 30 / 50 G323 / 30 / 50 G403 / 30 / 50 G205 / 30 / 50 G255 / 30 / 50
40 100 G203 / 40 / 100 G253 / 40 / 100 G323 / 40 / 100 G403 / 40 / 100 G205 / 40 / 100 G255 / 40 / 100
50 G203 / 40 / 50 G253 / 40 / 50 G323 / 40 / 50 G403 / 40 / 50 G205 / 40 / 50 G255 / 40 / 50
60 50 - G253 / 60 / 50 G253 / 60 / 50 G403 / 60 / 50 G205 / 60 / 50 G255 / 60 / 50
Vertical Bar Spacing Horizontal Bar Spacing Specification of Supporting Flat Steel (Width X Thickness)
32 × 5 40 × 5 45 × 5 50 × 5 55 × 5 60 × 5
30 100 G325 / 30 / 100 G405 / 30 / 100 G455 / 30 / 100 G505 / 30 / 100 G555 / 30 / 100 G605 / 30 / 100
50 G325 / 30 / 50 G405 / 30 / 50 G455 / 30 / 50 G505 / 30 / 50 G555 / 30 / 50 G605 / 30 / 50
40 100 G325 / 40 / 100 G405 / 40 / 100 G455 / 40 / 100 G505 / 40 / 100 G555 / 40 / 100 G605 / 40 / 100
50 G325 / 40 / 50 G405 / 40 / 50 G455 / 40 / 50 G505 / 40 / 50 G555 / 40 / 50 G605 / 40 / 50
60 50 G325 / 60 / 50 G405 / 60 / 50 G455 / 60 / 50 G505 / 60 / 50 G555 / 60 / 50 G605 / 60 / 50
