Hot Dip Galvanized Steel Bar Grating with Customizable Sizes and Anti-Rust Properties for Municipal Projects
Hot Dip Galvanized Steel Bar Grating with Customizable Sizes and Anti-Rust Properties for Municipal Projects
Hot Dip Galvanized Steel Bar Grating with Customizable Sizes and Anti-Rust Properties for Municipal Projects
Hot Dip Galvanized Steel Bar Grating with Customizable Sizes and Anti-Rust Properties for Municipal Projects
Hot Dip Galvanized Steel Bar Grating with Customizable Sizes and Anti-Rust Properties for Municipal Projects
Hot Dip Galvanized Steel Bar Grating with Customizable Sizes and Anti-Rust Properties for Municipal Projects
Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

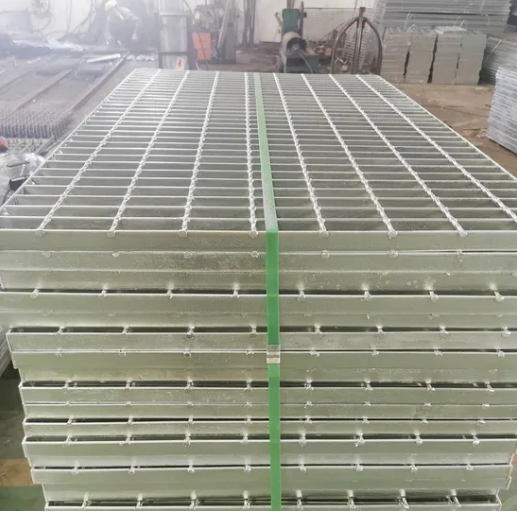

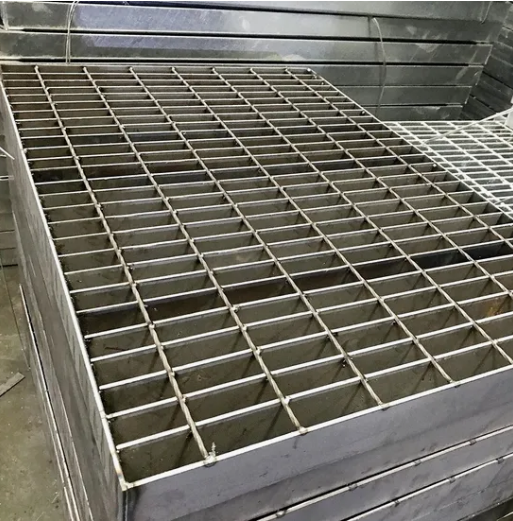

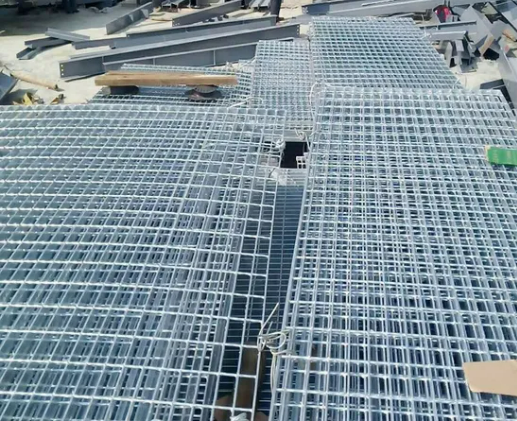

Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars. The bearing bars run in one direction and are spaced by rigid attachment to perpendicular cross bars or by bent connecting bars extending between them. This design is intended to hold heavy loads with minimal weight. Steel grating is widely used for floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.

Technical Data Table

Material low carbon steel, stainless steel or following customer requirements
Bearing bar specifications (mm) 20 x 3 to 100 x 10;
25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4mm, or customerized
Bearing bar pitch (center to center) 12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, or customerized
Cross bar pitch (center to center) 38, 50, 76, 100, 101.6mm etc, or customerized
Surface Treatment Nature, hot dip galvanizing, paint spraying or following customer requirements
Features Anti-rust,durable, strong, safe, easy installation
Packing Wrapped with film and straps, wooden pallet packing
Meeting steel grating standards A) China: YB/T4001.1-2007
B) USA: ANSI/NAAMM(MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985


Surface Treatment Finishing of Steel Grating:
Generally Steel Grating is made with hot-dipped galvanized. Also zinc coating can be made according to the client's requirement.
Steel Grating can be called hot-dip galvanized steel grating,stainless steel gratings.Beautiful surface appearance and excellent performance in industry construction projects.
