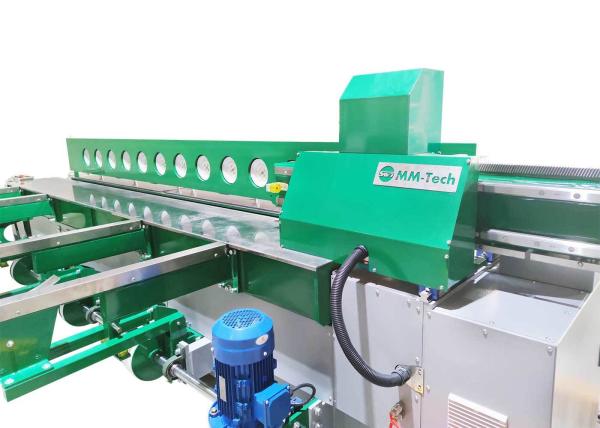

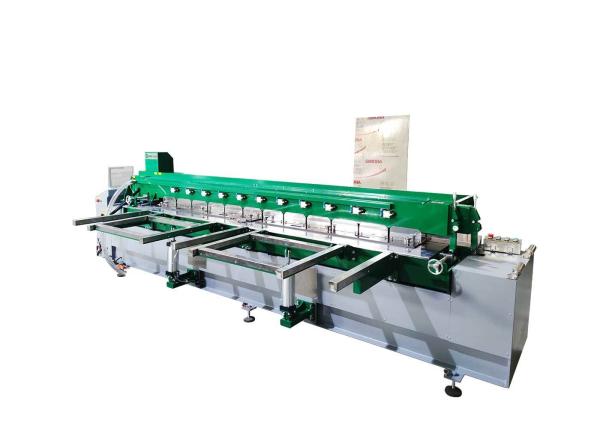

CNC 380V Plastic Sheet Welding Machine
CNC 380V Plastic Sheet Welding Machine
CNC 380V Plastic Sheet Welding Machine
CNC 380V Plastic Sheet Welding Machine
Specifications
Brand Name :
MM-TECH
Model Number :
SWT-PH4000
Certification :
CE
Place of Origin :
HEBEI, CHINA
MOQ :
1
Price :
US$12,500-17,700/set
Payment Terms :
L/C, D/A, D/P, Western Union, T/T, PayPal
Delivery Time :
Within 7 days
Model :
SWT-PH4000
Welding Thickness :
3.0-30.0mm
Roll circle min diameter :
450
Rated Voltage :
380V
Frequency :
50/60Hz
Rated Current :
13.6A
Max. Working Length :
4000mm
Air Pressure :
6.0-8.0kg.f / cm²
Description

SWT-PH4000 CNC 380V Plastic Sheet Rolling Welding Machine for PP Material

Plastic Sheet Rolling Welding Machine Introduction

  1. The surface of the heating plate is coated with Teflon.
  2. It is suitable for butt fusion welding, 90° butt fusion welding, rolling of thermoplastic materials like PP, PE, PVDF, PVC, PPN, etc.
  3. Scope of Application: electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, piping, ventilation systems, and other industries.

Plastic Sheet Rolling Welding Machine Technical Data

Model SWT-PH4000
Welding Thickness(mm) 3.0-30.0
Max. Woking Length(mm) 4000
Roll Circle Min Diameter(mm) 450
Air Pressure(kg.f / cm²) 6.0-8.0
Energy Source(m³ / min) 0.0062
Rated Voltage(V) 380V, 50/60Hz
Rated Current(A) 13.6A
Heating Power(kW) 8kW
Power of Rolling Power(kW) 1.5kW
Heating Mode Overall Heating
Drum Institutions(parts) Optional
Machine Size(L×W×H)mm 4850*1200*1200
PacKING Size(L×W×H)mm 5000*1300*1450
N.W KGS 1550KG
G.W KGS 1700KG

Plastic Sheet Rolling Welding Machine Application

CNC 380V Plastic Sheet Welding Machine

Quality Guarantee

24 months. If any parts broken or doesn't work under normal working, we provide them for free.
