Specifications
Brand Name :
MM-TECH
Model Number :
SWT-PH6000
Certification :
CE
Place of Origin :
HEBEI, CHINA
MOQ :
1
Price :
US$29,000 - $34,200/set
Payment Terms :
L/C, D/A, D/P, Western Union, T/T, PayPal
Supply Ability :
600/set per month
Delivery Time :
Within 7 days
Model :
SWT-PH6000
Welding Thickness :
3.0-30.0mm
Roll circle min diameter :
550
Rated Voltage :
380V
Frequency :
50/60Hz
Rated Current :
13.6A
Heating Power :
12KW
Max. Working Length :
6000mm
Air Pressure :
6.0-8.0kg.f / cm²
Description

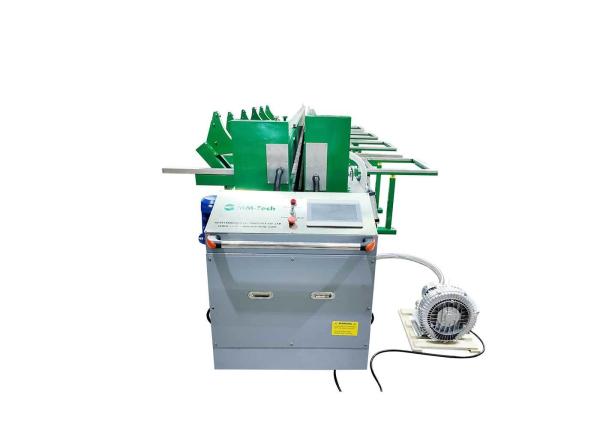

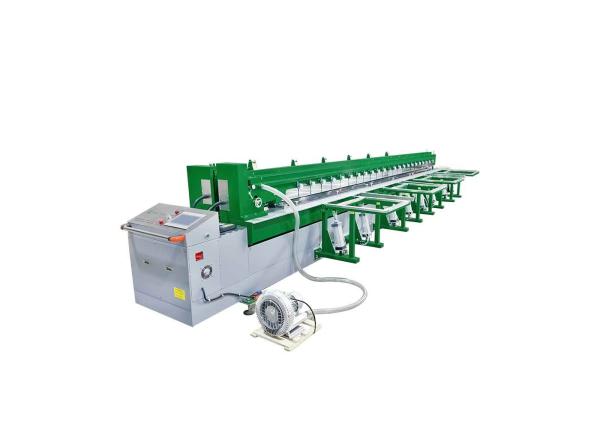

Sheet Butt Welding Equipment for Making Conservancy Tanks PP PE PVC PVDF Material Model SWT-PH6000

Sheet Butt Welding Equipment Introduction

The surface of the heating plate is coated with Teflon.

It is suitable for butt fusion welding, 90° butt fusion welding, rolling of thermoplastic materials like PP, PE, PVDF, PVC, PPN, etc.

Scope of Application: electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, piping, ventilation systems, and other industries.

Sheet Butt Welding Equipment Technical Sheet

Model SWT-PH6000
Welding Thickness(mm) 3.0-30.0
Max. Woking Length(mm) 6000
Roll Circle Min Diameter(mm) 550
Air Pressure(kg.f / cm²) 6.0-8.0
Energy Source(m³ / min) 0.0075
Rated Voltage(V) 380V, 50/60Hz
Rated Current(A) 13.6A
Heating Power(kW) 12kW
Power of Rolling Power(kW) 1.5kW
Heating Mode Overall Heating
Drum Institutions(parts) Optional
Machine Size(L×W×H)mm 6900*1200*1200
PacKING Size(L×W×H)mm 7050*1300*1450
N.W KGS 1900KG
G.W KGS 2100KG

Sheet Butt Welding Equipment Application

380V Plastic Sheet Welder Press Button Control For Making Conservancy Tanks380V Plastic Sheet Welder Press Button Control For Making Conservancy Tanks380V Plastic Sheet Welder Press Button Control For Making Conservancy Tanks380V Plastic Sheet Welder Press Button Control For Making Conservancy Tanks

Quality Guarantee

24 months. If any parts broken or doesn't work under normal working, we will provide them for free.
