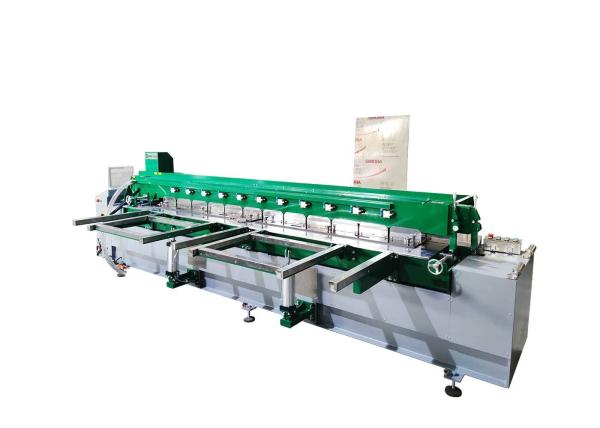

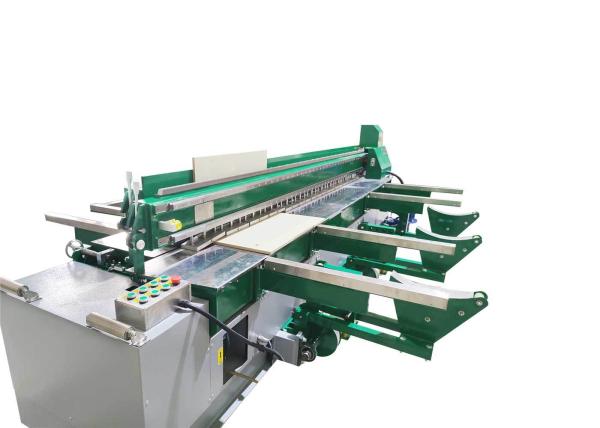

SWT-PH5000 CNC Plastic Sheet Welding Machine For Making PE Tanks
SWT-PH5000 CNC Plastic Sheet Welding Machine For Making PE Tanks
SWT-PH5000 CNC Plastic Sheet Welding Machine For Making PE Tanks
SWT-PH5000 CNC Plastic Sheet Welding Machine For Making PE Tanks
Specifications
Brand Name :
MM-TECH
Model Number :
SWT-PH5000
Certification :
CE
Place of Origin :
HEBEI, CHINA
MOQ :
1
Price :
US$22,000-US$27,200/set
Payment Terms :
L/C, D/A, D/P, Western Union, T/T, PayPal
Delivery Time :
Within 7 days
Model :
SWT-PH5000
Welding Thickness :
3.0-30.0mm
Max. Working Length :
5000mm
Roll circle min diameter :
550
Rated Voltage :
380V
Frequency :
50/60Hz
Rated Current :
13.6A
Air Pressure :
6.0-8.0kg.f / cm²
Heating Power :
10KW
Description

SWT-PH5000 CNC Sheet Butt Fusion Welding Machine for Making PE Tanks

Sheet Butt Fusion Welding Machine Introduction

  • SWT-PH5000 CNC Sheet Butt Fusion Welding Machine equipped with automatic winding device mechanism.
  • This machine can weld PP, PE, PVDF, PVC, PPN and other thernoplastic material.
  • It can be customized per customers' request.
  • Arrange of Application: electroplasting system, environment protection equipment, chemical containers, sewage treatment, piping, ventilation systems and other industries.

Sheet Butt Fusion Welding Machine Technical Sheet

Model SWT-PH5000
Welding Thickness(mm) 3.0-30.0
Max. Woking Length(mm) 5000
Roll Circle Min Diameter(mm) 550
Air Pressure(kg.f / cm²) 6.0-8.0
Energy Source(m³ / min) 0.0068
Rated Voltage(V) 380V, 50/60Hz
Rated Current(A) 13.6A
Heating Power(kW) 10kW
Power of Rolling Power(kW) 1.5kW
Heating Mode Overall Heating
Drum Institutions(parts) Optional
Machine Size(L×W×H)mm 5850*1200*1200
PacKING Size(L×W×H)mm 6000*1300*1450
N.W KGS 1800KG
G.W KGS 1950KG

Sheet Butt Fusion Welding Machine Application

SWT-PH5000 CNC Plastic Sheet Welding Machine For Making PE TanksSWT-PH5000 CNC Plastic Sheet Welding Machine For Making PE TanksSWT-PH5000 CNC Plastic Sheet Welding Machine For Making PE TanksSWT-PH5000 CNC Plastic Sheet Welding Machine For Making PE Tanks

FAQ

Payment Method Bank Transfer, PayPay, WesternUnion
Quality Guarantee 2 years

Workshop Overview

SWT-PH5000 CNC Plastic Sheet Welding Machine For Making PE TanksSWT-PH5000 CNC Plastic Sheet Welding Machine For Making PE TanksSWT-PH5000 CNC Plastic Sheet Welding Machine For Making PE Tanks
