90 Degree Pp Sheet Welding Machine Butt Fusion Overall Heating
90 Degree Pp Sheet Welding Machine Butt Fusion Overall Heating
90 Degree Pp Sheet Welding Machine Butt Fusion Overall Heating
90 Degree Pp Sheet Welding Machine Butt Fusion Overall Heating
Specifications
Brand Name :
MM-TECH
Model Number :
SWT-PH3000
Certification :
CE
Place of Origin :
HEBEI, CHINA
MOQ :
1
Price :
US$11,500-US$16,700/set
Payment Terms :
L/C, D/A, D/P, Western Union, T/T, PayPal
Delivery Time :
Within 7 days
Model :
SWT-PH3000
Welding Thickness :
3.0-30.0mm
Roll circle min diameter :
400mm
Rated Voltage :
380V
Frequency :
50/60Hz
Rated Current :
13.6A
Max. Working Length :
3000mm
Air Pressure :
4.0-8.0kg.f / cm²
Description

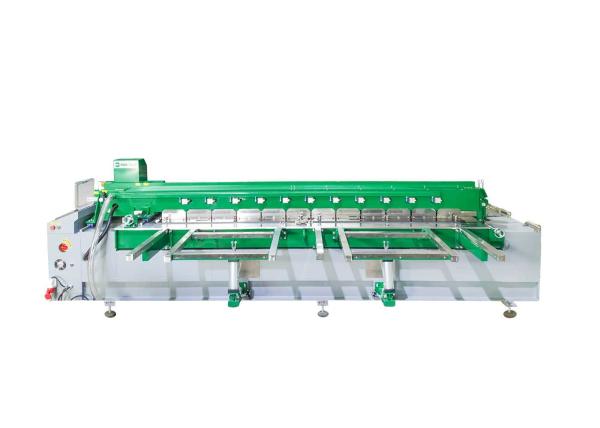

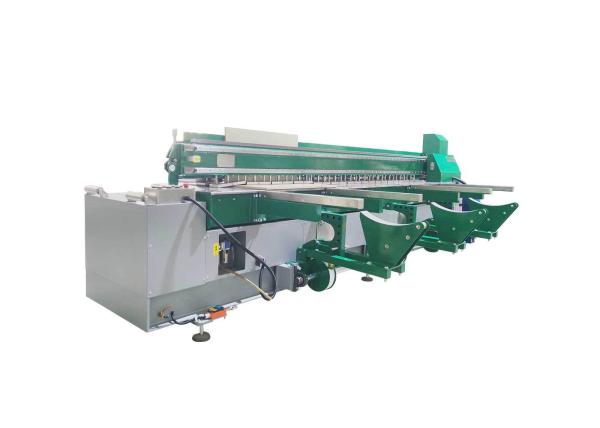

SWT-PH3000 CNC CE Approved PP Sheet Butt Fusion 90° Welding Machine

PP Sheet Butt Fusion Welding Machine Introduction

  • The surface of the heating plate is coated with Teflon.
  • It is suitable for butt fusion welding, 90° butt fusion welding, rolling of thermoplastic materials like PP, PE, PVDF, PVC, PPN, etc.
  • Scope of Application: electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, piping, ventilation systems, and other industries.

PP Sheet Butt Fusion Welding Machine Specifications

Model SWT-PH3000
Welding Thickness(mm) 3.0-30.0
Max. Woking Length(mm) 3000
Roll Circle Min Diameter(mm) 400
Air Pressure(kg.f / cm²) 4.0-8.0
Energy Source(m³ / min) 0.0052
Rated Voltage(V) 380V, 50/60Hz
Rated Current(A) 13.6A
Heating Power(kW) 6kW
Power of Rolling Power(kW) 1.5kW
Heating Mode Overall Heating
Drum Institutions(parts) Optional
Machine Size(L×W×H)mm 3750*1200*1200
PacKING Size(L×W×H)mm 3900*1300*1450
N.W KGS 1350KG
G.W KGS 1500KG

PP​ Sheet Butt Fusion Welding Machine Application

90 Degree Pp Sheet Welding Machine Butt Fusion Overall Heating90 Degree Pp Sheet Welding Machine Butt Fusion Overall Heating90 Degree Pp Sheet Welding Machine Butt Fusion Overall Heating

Quality Guarantee

24 months. If any parts broken or doesn't work under normal working, we are free to offer.
