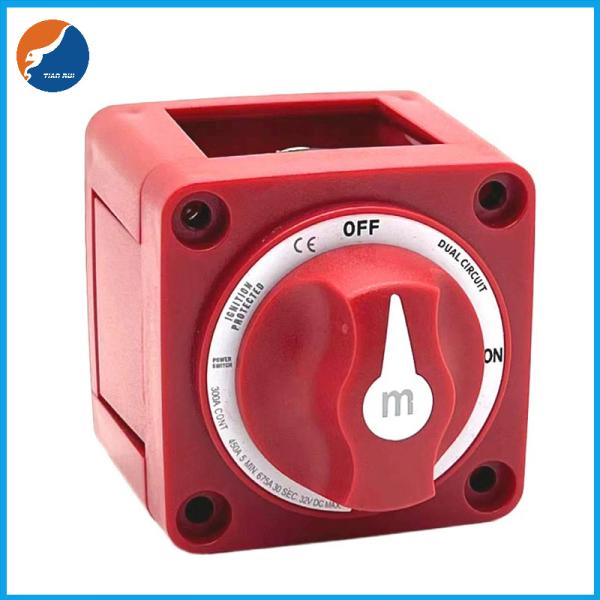

6010 300A 32V DC Mini Dual Circuit Plus Battery Switch
6010 300A 32V DC Mini Dual Circuit Plus Battery Switch
6010 300A 32V DC Mini Dual Circuit Plus Battery Switch
6010 300A 32V DC Mini Dual Circuit Plus Battery Switch
6010 300A 32V DC Mini Dual Circuit Plus Battery Switch
6010 300A 32V DC Mini Dual Circuit Plus Battery Switch
6010 300A 32V DC Mini Dual Circuit Plus Battery Switch
6010 300A 32V DC Mini Dual Circuit Plus Battery Switch
6010 300A 32V DC Mini Dual Circuit Plus Battery Switch
6010 300A 32V DC Mini Dual Circuit Plus Battery Switch
Specifications
Brand Name :
TIANRUI
Model Number :
QB-0062/6010
Certification :
ROHS
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
D/P, T/T,Paypal, Visa, Mastercard
Supply Ability :
1000000PCS/Month
Delivery Time :
5-7 Days
Packaging Details :
1PCS/Small Box
Product Name :
Boat Marine RV Battery Switch
Switch Type :
Dual Circuit
Switch Positions :
2
Continuous Rating :
300A
Intermittent Rating :
450A (5 min)
Starting Rating 30 sec :
675A per circuit
Maximum Voltage :
32VDC
Stud Size :
3/8"
Stud Material :
Tinned Copper
Stud Torque :
120 in-lb (13.56 Nm)
Battery Inputs :
2
Weight :
0.80lb (0.36 kg)
Description

6010 300A 32V DC Mini Dual Circuit Plus Battery Switch

300 Amps continuous rating for outboards and small gasoline or diesel engines.

Battery management is central to the safe operation of a boat or vehicle.

All boats and vehicles with an engine have at least one battery with the primary purpose of starting the engine and providing power for loads such as lights, pumps, and electronics. The safe switching between batteries, loads, and charge sources is achieved using products like the m-series battery switches.

An innovative snap-together design increases reliability and longevity without the use of internal fasteners. The back cover is one-piece with break-out-sides, for easier installation. Every stud is pressed into a copper reinforced bus for added support.

Specification

Product Name
Boat Marine RV Battery Switch
Color Red
Switch Type
Dual Circuit
Switch Positions 2
Battery Combine Yes
Continuous Rating 300A

Intermittent Rating
450A (5 min)
Starting Rating 30 sec 675A per circuit
Maximum Voltage 32VDC
Stud Size 3/8"
Stud Material Tinned Copper
Stud Torque 120 in-lb (13.56 Nm)
Battery Inputs 2
Terminal Stud Size 3/8" - 16 (M10)
Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept #10 Screw
Weight 0.80lb (0.36 kg)



Features

•Simultaneously switches two isolated battery banks with one simple switch

•Combines battery banks for emergency starting

•Rated for 300 amps continuous, 450 intermittent & 1000 cranking

•Switches both banks on or off

Function

Prevent leakage, protect the power supply, disconnect the battery safely.


Application

This battery master switch is widely used for Car, Marine, Boat, RV, Camper, Travel Trailer, Truck, ATV, UTV, Battery banks and other 0-48V Devices.
