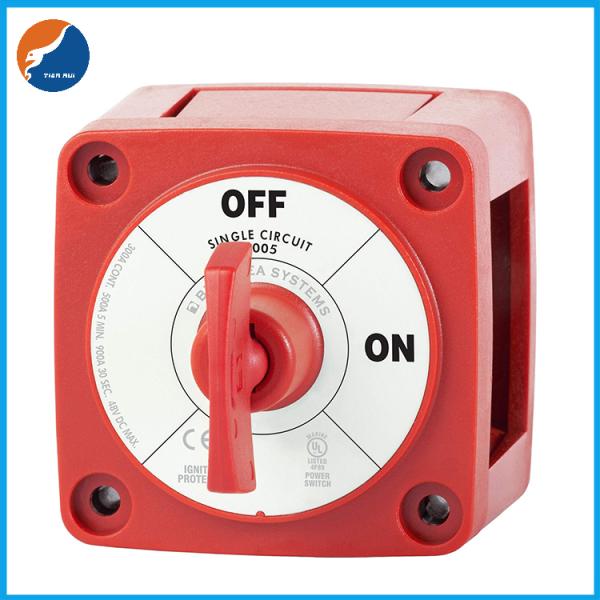

Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key
Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key
Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key
Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key
Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key
Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key
Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key
Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key
Specifications
Brand Name :
TIANRUI
Model Number :
QB-0059/6005
Certification :
ROHS
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
D/P, T/T,Paypal, Visa, Mastercard
Supply Ability :
1000000PCS/Month
Delivery Time :
5-7 Days
Packaging Details :
1PCS/Small Box
Product Name :
Boat Marine RV Battery Switch
Continuous Rating :
300A
Intermittent Rating :
500A
Starting Rating 30 sec :
900A
Maximum Voltage :
48VDC
Switch Type :
Single Circuit ON-OFF
Stud Size :
3/8"
Stud Material :
Tinned Copper
Stud Torque :
120 in-lb (13.56 Nm)
Switching Rating :
25A
Color :
Red
Weight :
0.65lb (0.29 kg)
Description

Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key

Single Circuit ON/OFF

Switches a single battery to a single load group.
Multiple switches can be used to manage several isolated circuits including cross connecting for emergency paralleling.

Specification

Product Name
Boat Marine RV Battery Switch
Color Red
Switch Type
Single Circuit ON-OFF
Continuous Rating 300A

Intermittent Rating
500A
Starting Rating 30 sec 900A
Maximum Voltage 48VDC
Stud Size 3/8"
Stud Material Tinned Copper
Stud Torque 120 in-lb (13.56 Nm)
Switching Rating 25A
Terminal Stud Size 3/8" - 16 (M10)
Weight 0.65lb (0.29 kg)



Features

•Ignition protected - Safe for installation aboard gasoline powered boats

•Case design allows surface, front panel, or rear panel mounting

•Isolating cover with snap-on sections protects rear contacts

•3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals

•7/8" (22.22mm) stud length to accept multiple cable terminals

•Ideal for marine or RV applications

•All non-corrosive marine grade metals

•Molded in durable reinforced polycarbonate

•Tactile textures indicate knob position by feel only

•Label with international ON/OFF legends

•Removable key or knob remains positively retained

•ICON label set included for circuit identification


Function

Prevent leakage, protect the power supply, disconnect the battery safely.


Application

This battery master switch is widely used for Car, Marine, Boat, RV, Camper, Travel Trailer, Truck, ATV, UTV, Battery banks and other 0-48V Devices.

Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key

Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key

Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key

Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key

Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key

Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key

Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key


Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key

Single Circuit M Series 6005 Mini On Off Master Cut Red Battery Switch with Key
