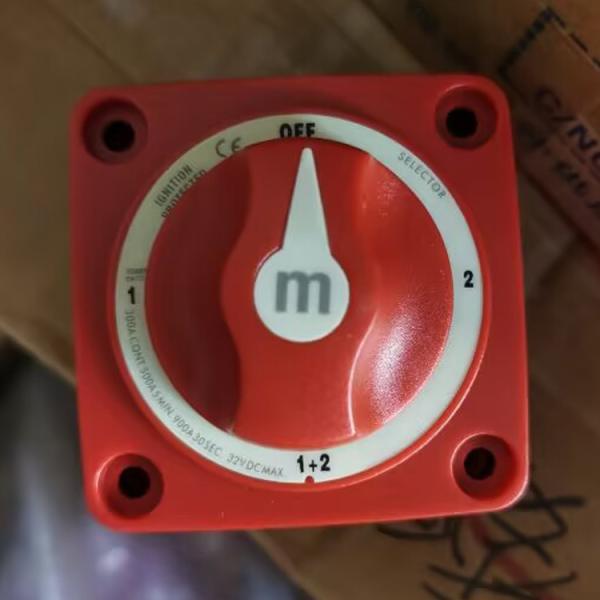

6007 Red Mini Selector Battery Isolator Switch with Removable Knob
6007 Red Mini Selector Battery Isolator Switch with Removable Knob
6007 Red Mini Selector Battery Isolator Switch with Removable Knob
6007 Red Mini Selector Battery Isolator Switch with Removable Knob
6007 Red Mini Selector Battery Isolator Switch with Removable Knob
6007 Red Mini Selector Battery Isolator Switch with Removable Knob
6007 Red Mini Selector Battery Isolator Switch with Removable Knob
6007 Red Mini Selector Battery Isolator Switch with Removable Knob
6007 Red Mini Selector Battery Isolator Switch with Removable Knob
6007 Red Mini Selector Battery Isolator Switch with Removable Knob
6007 Red Mini Selector Battery Isolator Switch with Removable Knob
6007 Red Mini Selector Battery Isolator Switch with Removable Knob
Specifications
Brand Name :
TIANRUI
Model Number :
QB-0061/6007
Certification :
ROHS
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
D/P, T/T,Paypal, Visa, Mastercard
Supply Ability :
1000000PCS/Month
Delivery Time :
5-7 Days
Packaging Details :
1PCS/Small Box
Product Name :
Boat Marine RV Battery Switch
Switch Type :
Selector 4 Position
Switch Positions :
4
Continuous Rating :
300A
Intermittent Rating :
500A (5 min)
Starting Rating 30 sec :
900A
Maximum Voltage :
32VDC
Stud Size :
3/8"
Stud Material :
Tinned Copper
Stud Torque :
120 in-lb (13.56 Nm)
Battery Inputs :
2
Weight :
0.77lb (0.35 kg)
Description

6007 Red Mini Selector Battery Isolator Switch with Removable Knob

Switches isolated battery banks to all loads or combines battery banks to all loads
•Make before break contact design allows switching between battery banks without power interruption

Specification

Product Name
Boat Marine RV Battery Switch
Color Red
Switch Type
Selector 4 Position
Switch Positions 4
Battery Combine Yes
Continuous Rating 300A

Intermittent Rating
500A (5 min)
Starting Rating 30 sec 900A
Maximum Voltage 32VDC
Stud Size 3/8"
Stud Material Tinned Copper
Stud Torque 120 in-lb (13.56 Nm)
Battery Inputs 2
Terminal Stud Size 3/8" - 16 (M10)
Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept #10 Screw
Weight 0.77lb (0.35 kg)



Features

•Make before break contact design allows switching between battery banks without power interruption
•Ignition protected—safe for installation aboard gasoline powered boats
•Case design allows surface front panel or rear panel mounting

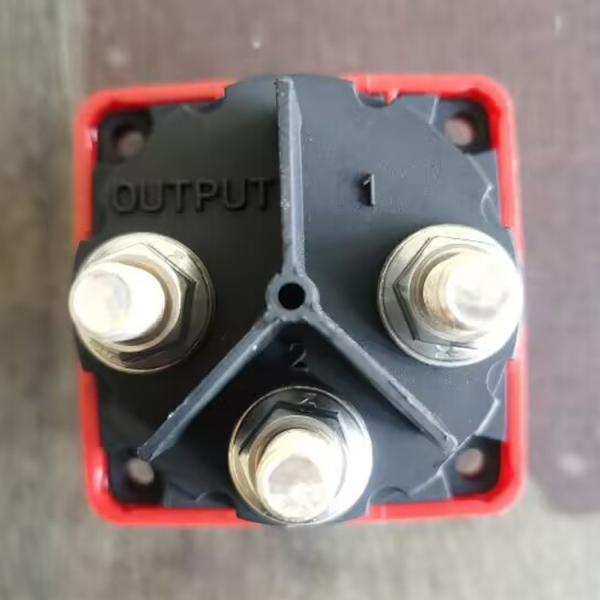

•Isolating cover with snap-on sections protects rear contacts
•3/8""-16 tin-plated copper studs for maximum conductivity and corrosion resistance accepts 3/8"" and M10 ring terminals
•7/8"" (22.22mm) stud length to accept multiple cable terminals
•Ideal for marine or RV applications
•All non-corrosive marine grade metals
•Molded in durable reinforced polycarbonate
•Tactile textures indicate knob position by feel only
•Removable key or knob remains positively retained

Function

Prevent leakage, protect the power supply, disconnect the battery safely.


Application

This battery master switch is widely used for Car, Marine, Boat, RV, Camper, Travel Trailer, Truck, ATV, UTV, Battery banks and other 0-48V Devices.
