Specifications
Brand Name :
Vios
Model Number :
P18.75
Certification :
UL EMC CE ROHS Fcc ISO90001 ETL SGS SAA
Place of Origin :
China
MOQ :
1 Piece / 1 Set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA
Supply Ability :
5000 Square/one month
Delivery Time :
7-15days
Packaging Details :
Carton box / Flight case / Wooden box
Operating Humidity :
10%~90%
Cabinet Material :
Aluminum
Pixel Density :
2844 Dots/sq.m
Input Voltage(AC) :
110~220 V
Operation Temperature :
-20~+40 ºC
IP Rating :
IP65
Pixel Configuration :
SMD3528
Power Consumption(Max/Avg) :
200/125 W/sq.m
Description

IP65 waterproof LED curtain display P18.75 5000 cd/m2 for Permanent installation

Product description:

  • Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, stage etc;
  • Aluminum cabinets ensure light weight and lasting;
  • Good waterproof IP65, long life span>100000Hours;
  • Aluminum cabinets ensure lower weight and lasting,good rust-roof;
  • SMD led encapsulation confirm wide view angle, and big pixel pitch ensure the long view distance;
  • High definition, Good uniformity,long life span;
  • Indepent driving circuit,with super thin power supply;
  • Simple: No cooling fan design, no noise, no cooling air conditioner;
  • SMD led encapsulation confirm wide view angle and good stability;
  • apply to the home screen, side screen screen, combinations of awning, floor tile, etc;

Parameter:

P18.75 Outdoor Full Color LED Curtain Main Parameters
Visual Characteristics Unit Value
Pixel Pitch mm 18.75
Pixel Density Dots/sq.m 2844
Pixel Configuration   SMD3528
Cabinet Resolution dots 32×32
Refresh Rate Hz ≥1200
View Angle(H/V) ° 120/120
Brightness nits ≥5000
Gray Scale Bit 16
IP Rating   65
Power Consumption(Max/Avg) W/sq.m 200/125
Input Voltage(AC) V 110~220
Modular Characteristics
Cabinet Size(W×H×D) mm 600×600×55
Cabinet Material   Aluminum
Cabinet Weight Kg 7
Module Size(W×H) mm 600×600
Environment
Operation Temperature ºC -20~+40
Operating Humidity   10%~90%
Driving Mode   1/4 Scan
Control Distance Cat 5E <100m,Single mode fiber<10Km
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our company:

Shenzhen Vios co.,ltd was founded in 2007, which is a national high-tech enterprises specialized in LED display products R&D, production, sale and engineering services.
Shenzhen Vios World co.,ltd will be committing to provide more cost-effective, more energy-efficient, and greener LED optoelectronic products, contributing to building a green home.

Shenzhen Vios co.,ltd consistent source of strength for the customer is the company's growth and expansion, the company has the perfect pre-sale tracking service system and truly customer -centric marketing module.
OEM, ODM, Own Brand(LED WORLD).
It export from Year 2008, have Own Export License.

Why choose us:

  • First-rate service;
  • Service advantage: Better service at same situation, better cooperation at same service;
  • Manufacturer: over 9 years;
  • Years of production experience we can very good to control the quality of the product, OEM and ODM accepted;
  • No MOQ;
  • We ensure that our products are the CE certified, ROHS compliant, FCC identified and passed the system of ISO 9001;

Product aging:

IP65 Waterproof Full Color LED Display Permanent Installation 110~220V SMD3528

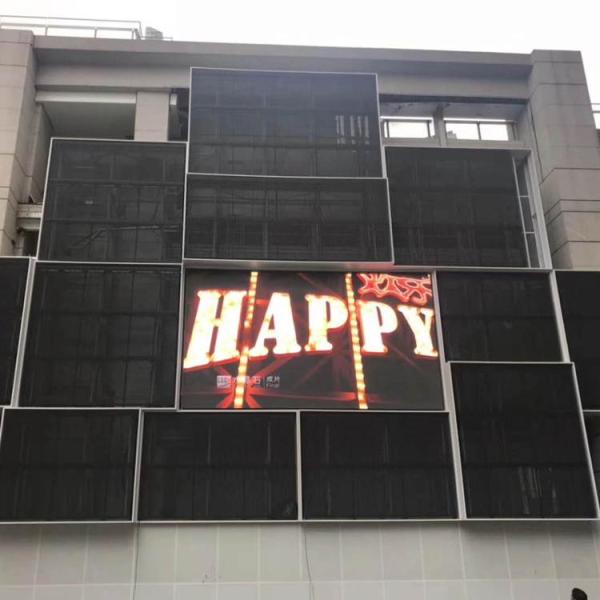

Project case:

IP65 Waterproof Full Color LED Display Permanent Installation 110~220V SMD3528
