Light Weight Led Video Curtain Rental 12.5 Pixel Pitch SMD3528 Gray Scale 65536
Light Weight Led Video Curtain Rental 12.5 Pixel Pitch SMD3528 Gray Scale 65536
Light Weight Led Video Curtain Rental 12.5 Pixel Pitch SMD3528 Gray Scale 65536
Light Weight Led Video Curtain Rental 12.5 Pixel Pitch SMD3528 Gray Scale 65536
Light Weight Led Video Curtain Rental 12.5 Pixel Pitch SMD3528 Gray Scale 65536
Light Weight Led Video Curtain Rental 12.5 Pixel Pitch SMD3528 Gray Scale 65536
Light Weight Led Video Curtain Rental 12.5 Pixel Pitch SMD3528 Gray Scale 65536
Light Weight Led Video Curtain Rental 12.5 Pixel Pitch SMD3528 Gray Scale 65536
Light Weight Led Video Curtain Rental 12.5 Pixel Pitch SMD3528 Gray Scale 65536
Light Weight Led Video Curtain Rental 12.5 Pixel Pitch SMD3528 Gray Scale 65536
Specifications
Brand Name :
Vios
Model Number :
P 12.5
Certification :
UL EMC CE ROHS Fcc ISO90001 ETL SGS SAA
Place of Origin :
China
MOQ :
1 Piece / 1 Set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA
Supply Ability :
5000 Square/one month
Delivery Time :
7-15days
Packaging Details :
Carton box / Flight case / Wooden box
Gray scale :
65536
Working humidity :
10% ~ 90%
Effectivce Communication :
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M
Life Span :
100,000 hours
Working temperature :
-20ºC~+50ºC±10%
temperature : -20ºC~+50ºC±10% Brightness :
>2500cd/sq.m
Size of cabinet :
400mm x 800mm x 60mm
LED component :
SMD3528
Description


Product description:

  • Long view distance and good uniformity;
  • Aluminum cabinets ensure light weight and lasting;
  • High lighting penetrated design ensure good ventilation and good heat dissipation ；
  • Ultra light & thin;
  • Front/back serviceable without tools;
  • Can be fixed install or hung for rental, packed with flight case, good protection and easy to move;
  • Super thin aluminum cabinet and curtain design minimize cabinet weight,only 10kgs each;
  • Can be many different abnormal shapes with magnets and custom-made frames；
  • 15% transparent rate, ensure the light- through, smoke-through, sound-through;
  • SMD led encapsulation confirm wide view angle, and big pixel pitch ensure the long view distance.


Parameter:

P12.5 Indoor full Color LED Mesh Screen Specification
Pixel pitch 12.5mm
Pixel Configuration 1R1G1B
LED component SMD3528
Size of module 200mm x 400mm
Resolution of module 16x32
Size of cabinet 400mm x 800mm x 60mm
Resolution of cabinet 32x64
Material of Cabinet Aluminum profile
Weight of Cabinet <10KGS
Brightness >2500cd/sq.m
Density 6400dots/sq.m
Best viewing angle 140 /140
Best viewing distance 10-100M
Maximum power consumption <500W/sq.m
Average power consumption <220W/sq.m
Driving method 1/8 Scan
Control method Synchronization
Gray scale 65536
Colors 256 x 256 x 256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1500Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC TUV-CE ETL etc.
Effectivce Communication Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay) Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


Why choose us:

  • On time delivery + patient after-sales service;
  • Top quality + reasonable price + patient after-sales service;
  • 100% QC inspection before shipping;
  • CE,RoHS,FCC, ISO9001;
  • Free training is provided for our customers;
  • Our products are the CE certified, ROHS compliant, FCC identified;

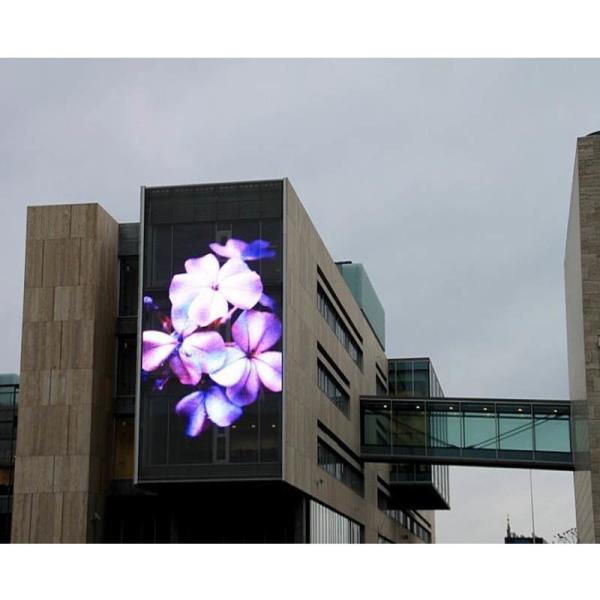

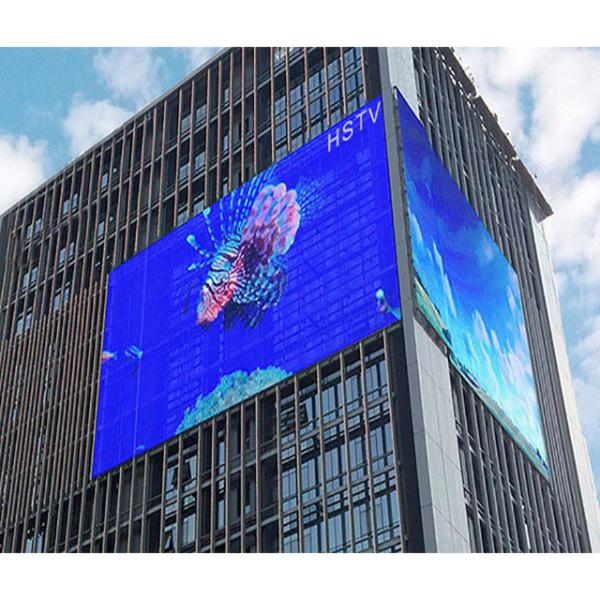

Project case:
