CP15-31D LED Grille Screen , Outdoor Led Advertising Screens 120/120° View Angle
CP15-31D LED Grille Screen , Outdoor Led Advertising Screens 120/120° View Angle
CP15-31D LED Grille Screen , Outdoor Led Advertising Screens 120/120° View Angle
CP15-31D LED Grille Screen , Outdoor Led Advertising Screens 120/120° View Angle
CP15-31D LED Grille Screen , Outdoor Led Advertising Screens 120/120° View Angle
CP15-31D LED Grille Screen , Outdoor Led Advertising Screens 120/120° View Angle
Specifications
Brand Name :
Vios
Model Number :
16
Certification :
UL EMC CE ROHS Fcc ISO90001 ETL SGS SAA
Place of Origin :
China
MOQ :
1 Piece / 1 Set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA
Supply Ability :
5000pcs/one month
Delivery Time :
7-15days
Packaging Details :
Carton box / Flight case / Wooden box
Driving Mode :
1/4 scan
View Angle(H/V) :
120/120°
Cabinet Weight :
15 kg
IP Rating :
IP43
Pixel Density :
3906 Dots/sq.m
Pixel Pitch :
16 mm
Operation Temperature :
-20~+40 ºC
Cabinet Material :
Aluminum
Description



P16 indoor LED Mesh Curtain display full color IP43 grade 1/4 scan screen panel

Product description:

  • Made with Aluminum material, light and thin, less than 70mm thickness;
  • Slim Aluminum Cabinet,light weight, easy to move and portable, and quick to assemble and dismantle by hands;
  • Independent driving circuit, equiped slim power supply, no fans no noise,good evironment protection;
  • Fast locks and aviation plugs structure for install and dismantle conveniently and easily；
  • With customized panel size,easy for different sizes and combined randomly,better for rental use with different screen sizes;
  • Multifunctional indoor & outdoor mesh LED ;
  • High quality lighting parts with special PCB Board design, confirm good display and long life span;
  • Flexible modules can be many different abnormal shapes with magnets and custom-made frames;
  • Widely used for commercial led display, stage led display, rental led display,advertising led display, message board etc;
  • high drafty: no air conditioning fan, cost savings;
CP15-31D LED Grille Screen , Outdoor Led Advertising Screens 120/120° View AngleCP15-31D LED Grille Screen , Outdoor Led Advertising Screens 120/120° View Angle

Parameter:

P16 Indoor Full Color LED Curtain Main Parameters
Visual Characteristics Unit Value
Pixel Pitch mm 16
Pixel Density Dots/sq.m 3906
Pixel Configuration 　 SMD3528
Cabinet Resolution dots 64×48
Refresh Rate Hz ≥1200
View Angle(H/V) ° 120/120
Brightness nits ≥1000
Gray Scale Bit 687Million
IP Rating 　 43
Power Consumption(Max/Avg) W/sq.m 400/150
Input Voltage(AC) V 110~220
Modular Characteristics
Cabinet Size(W×H×D) mm 1024×768×36
Cabinet Material 　 Aluminum
Cabinet Weight Kg 15
Module Size(W×H) mm 256×256
Environment
Operation Temperature ºC -20~+40
Operating Humidity 　 10%~90%
Driving Mode 　 1/4 Scan
Control Distance Cat 5E <100m,Single mode fiber<10Km
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Why choose us:

  • We have competitive price;
  • Excellent R&D team,lower the cost and assure you quality goods;
  • attractive price!
  • If you have any urgent questions, pls contact me without hesitation;
  • We are Professional manufactory of LED Display for more than 7 years in Shenzhen China.We have 9000 square meters of production base, 200 employees, enough for any orders;
  • Quick delivery: 10-25 working days;
  • CE,RoHS,FCC certification;

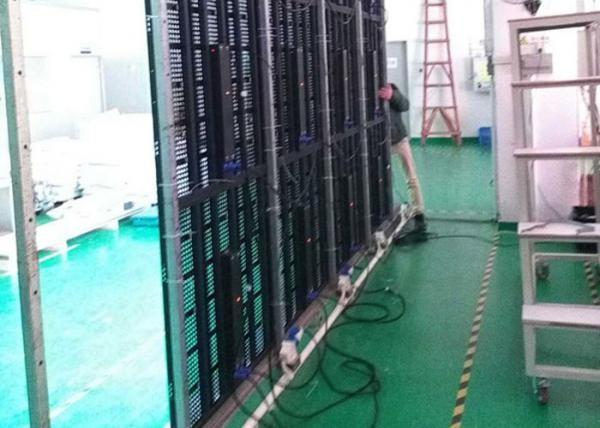

Project case:

CP15-31D LED Grille Screen , Outdoor Led Advertising Screens 120/120° View Angle

CP15-31D LED Grille Screen , Outdoor Led Advertising Screens 120/120° View Angle
