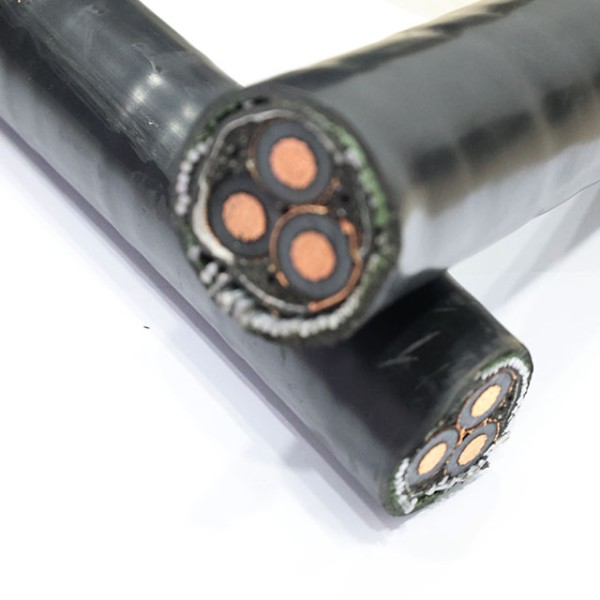

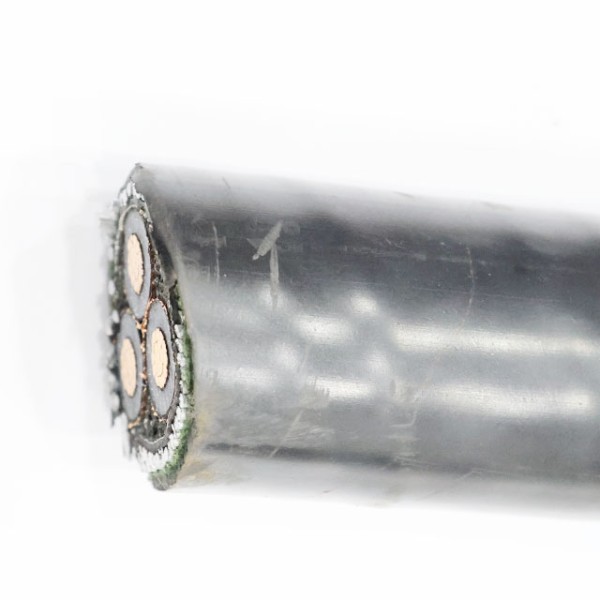

Commercial Industrial Networks High Voltage Cable 15kv 35kv 110kv Underground Cable
Commercial Industrial Networks High Voltage Cable 15kv 35kv 110kv Underground Cable
Commercial Industrial Networks High Voltage Cable 15kv 35kv 110kv Underground Cable
Commercial Industrial Networks High Voltage Cable 15kv 35kv 110kv Underground Cable
Commercial Industrial Networks High Voltage Cable 15kv 35kv 110kv Underground Cable
Commercial Industrial Networks High Voltage Cable 15kv 35kv 110kv Underground Cable
Specifications
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
800–1500 kilometers per month
Insulation Material :
XLPE
No. of Cores :
1~6 Core
Hot Sale Countries :
Philippine,Yemen,Vietnam, Indonesia,Indonesia,Afr
Type :
Other, Low/Medium/High Voltage
Service :
ODM OEM Accepted
Insulation :
XLPE Insulation
Delivery Time :
30 days
Jacket :
XLPE
Delivery :
10-25days After Received The Prepayment
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Brand Name :
F.T
Application :
Construction
Material :
copper
Place of Origin :
Shaanxi, China
Model Number :
YJV32 cable
Certification :
CE，VDE,SO 9001
Size :
as request
MOQ :
1000m
Sample :
Free
Rated Voltage :
1-110kv
Price :
usd 1.75～ 8.24/ meter
Conductor Material :
Copper
MOQ :
1000
Description
High Voltage Power Cable for Industrial and Commercial Networks 15kv 35kv 110kv Underground Cable

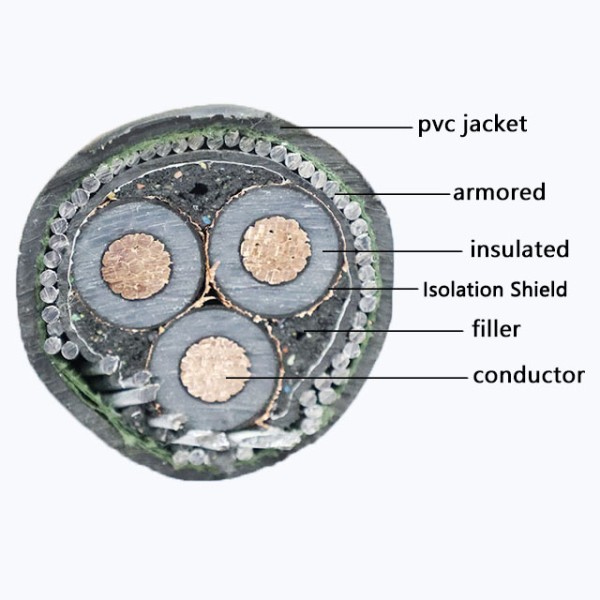

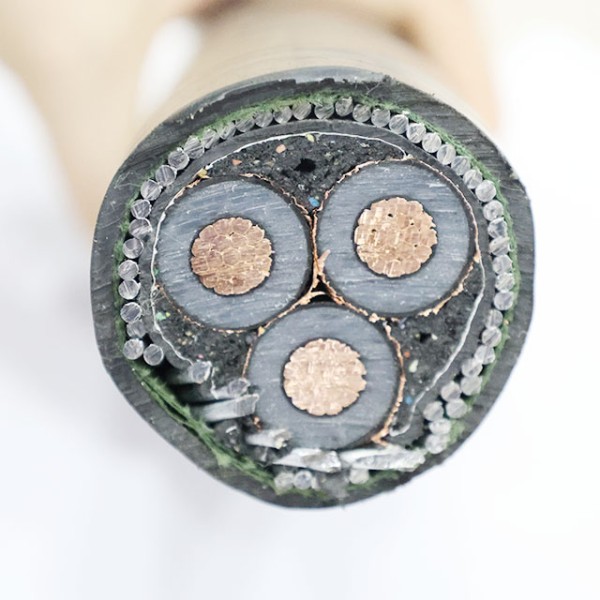

Construction
  • Core Number:1-6 Cores
  • Voltage:1-110kV
  • Conductor:Copper/Tinned Copper
  • Insulation:XLPE
  • Outer sheath:PVC/PE/LDPE&LLDPE/MDPE/HDPE/LSHF
  • Other characters:Flame retardant , Fire resistant , LSHF
Application

Power cable is a cable used to transmit and distribute electrical energy. Commonly used in urban underground power grid, the outgoing line of power station, internal power supply of industrial and mining enterprises and underwater transmission lines.

Operational Specifications
  1. The maximum rated temperature of the cable conductor is 90 ° C. During a short circuit (with a maximum duration of no more than 5 seconds), the maximum rated temperature of the cable conductor is
  2. The temperature should not exceed 250 ° C. The ambient temperature during cable laying should not be lower than 0 ° C
  3. Allowable bending radius during laying: Single core cables shall not be less than 15 times the outer diameter of the cable; Multi core cable not less than 10 times the outer diameter of the cable Twice.
Specifications Table
Nominal cross‑sectional area of conductor outside diameter(mm) weight(kg/km) Nominal cross‑sectional area of conductor outside diameter(mm) weight(kg/km) Nominal cross‑sectional area of conductor outside diameter(mm) weight(kg/km)
3×1.5 10.4 120.8 3×1.5+1×1.0 10.9 138.9 3×1.5+2×1.0 13.4 158.9
3×2.5 11.3 158.5 3×2.5+1.5 11.8 181.7 3×2.5+2×1.5 14.4 207.3
3×4 12.2 210.4 3×4+1×2.5 12.9 245.4 3×4+2×2.5 15.5 282.1
3×6 13.4 280.2 3×6+1×4 14.1 329.5 3×6+2×4 16.9 382.2
3×10 16.1 430.7 3×10+1×6 16.8 497.1 3×10+2×6 19.5 569
3×16 18.4 623.6 3×16+1×10 19.4 734.7 3×16+2×10 22.6 853.3
3×25 22.1 947.1 3×25+1×16 23.2 1114 3×25+2×16 26.5 1292
3×35 24.6 1254 3×35+1×16 25.2 1414 3×35+2×16 28.4 1590
3×50 27.9 1660 3×50+1×25 29.1 1919 3×50+2×25 33 2211
3×70 32.8 2353 3×70+1×35 34 2702 3×70+2×35 39.4 3093
3×95 37.1 3179 3×95+1×50 38.7 3667 3×95+2×50 44.7 419
3×120 41.2 3983 3×120+1×70 47.1 5503 3×120+2×70 46.6 5431
3×150 45.8 4909 3×150+1×70 50.8 6460 3×150+2×70 50 6315
3×185 50.9 6104 3×185+1×95 56.5 8029 3×185+2×95 56.1 8046
3×240 57.4 7941 3×240+1×120 57.6 9527 3×240+2×120 63.1 10377
3×300 63.4 9890 3×300+1×150 63.4 11690 3×300+2×150 69.8 12887
3×400 71.1 12585 3×400+1×185 77.2 15766 3×400+2×185 78.1 16336
4×1.5 11.1 145.7 4×1.5+1×1.0 11.8 165.2 5×1.5 11.9 171.5
4×2.5 12.1 194.3 4×2.5+1.5 12.8 219.3 5×2.5 13 231.3
4×4 13.2 261.6 4×4+1×2.5 14 297.6 5×4 14.2 314.2
4×6 14.5 352.4 4×6+1×4 15.4 403.9 5×6 15.6 426.4
4×10 17.6 547.3 4×10+1×6 18.4 617.7 5×10 19.1 666.7
4×16 20.1 799.1 4×16+1×10 21.4 915.9 5×16 22 978.8
4×25 24.3 1222 4×25+1×16 25.7 1397 5×25 26.6 1503
4×35 27.1 1626 4×35+1×16 28.1 1796 5×35 29.7 2004
4×50 31 2172 4×50+1×25 33 2461 5×50 34.2 2696
4×70 36.4 3080 4×70+1×35 38.3 3466 5×70 40.2 3825
4×95 41.2 4166 4×95+1×50 43.5 4682 5×95 45.8 5196
4×120 46 5244 4×120+1×70 48.8 5981 5×120 50.8 6513
4×150 50.9 6435 4×150+1×70 53.2 7163 5×150 56.5 8020
4×185 56.8 8034 4×185+1×95 59.6 9023 5×185 63.1 10010
4×240 64 10452 4×240+1×120 67.1 11691 5×240 71.1 13019
4×300 70.8 13017 4×300+1×150 74.2 14542 5×300 78.6 16213
4×400 79.6 16600 4×400+1×185 83.3 18509 5×400 88.5 20706
